An improved WENO-Z scheme with symmetry-preserving mapping

Abstract

Since the classical weighted essentially non-oscillatory (WENO) scheme is proposed, various improved versions have been developed, and a typical one is the WENO-Z scheme. Although better resolution is achieved, it is shown in this article that, the result of WENO-Z scheme suffers evident distortion in the long-time simulation of the linear advection equation. In order to fix the problem of WENO-Z, a symmetry-preserving mapping method is proposed in this article. In the original mapping method, the weight of each sub-stencil is used to map, which is demonstrated to cause asymmetric improvement about a discontinuity. This asymmetric improvement will lead to a distorted solution, more severe with longer output time. In the symmetry-preserving mapping method, a new variable related to the smoothness indicator is selected to map, which has the same ideal value for each sub-stencil. Using the new mapping method can not only fix the distortion problem of WENO-Z, but also improve the numerical resolution. Several benchmark problems are conducted to show the improved performance of the resultant scheme.

Introduction

Weighted essentially non-oscillatory (WENO) finite difference/volume scheme has become one of the most popular shock-capturing schemes to solve hyperbolic conservation laws, which are developed from the essentially non-oscillatory (ENO) schemes [1,2,3]. Unlike linear schemes using a single fixed stencil to interpolate, an r th-order ENO scheme chooses r stencils as candidates. The smoothest stencil is selected from r candidates with the aid of smoothness indicator. It is reasonable to abandon discontinuous stencils when there is a discontinuity, however, in the smooth region, r stencils together can reach (2r − 1) th-order accurate interpolation. Therefore, the ENO schemes do not make full use of all stencils’ information in the smooth region, leading to the problem of accuracy losing and computation wasting.

In order to utilize the information of less-smooth stencils in ENO schemes, Liu et al. [4] introduced the WENO schemes. Using the smoothness indicator proposed by Liu et al., WENO scheme adopts a convex combination of r stencils, and an r th-order ENO scheme can be converted to an (r + 1) th-order WENO scheme. Jiang and Shu [5] redefined the smoothness indicator of stencils, so that an r th-order ENO scheme can be converted to an (2r − 1) th-order WENO scheme, which is known as the WENO-JS scheme. However, Henrick et al. [6] pointed out that the actual accuracy order of WENO-JS scheme is less than the optimal one in smooth region with critical points. To recover the accuracy at critical points, they introduced an extra mapping process where the weights of stencils are mapped to more accurate values, and the resultant scheme is known as WENO-M. Then, Feng et al. [7, 8] further improved the WENO-M scheme by optimizing the mapping function involved in the mapping process. To increase the relevance of less-smooth stencils, Borges et al. [9] took both local and global smoothness indicators into consideration, and the resolution of scheme in both discontinuous and smooth regions is significantly improved. Castro et al. [10] then extended this idea to higher order schemes, which is known as the WENO-Z. From another perspective, Fedkiw et al. [11, 12] observed that a small parameter ε used in formula to avoid the denominator being 0, has evident influence on the accuracy of WENO scheme. Shen et al. [13] investigated the effect of ε on the convergence property of WENO scheme in detail, and their results showed that ε = 10−2 can significantly improve the numerical solution for subsonic and transonic flows. Don et al. [14, 15] theoretically and numerically demonstrated that if ε is taken as a power function of the uniform grid space, i.e. ε = Ω(Δxm), the WENO-JS and WENO-Z schemes can retain the optimal order in the smooth region, regardless of critical points. However, a larger ε leads to a less stable scheme, and thus the effect of adjusting ε to recover accuracy is problem-dependent. Acker et al. [16] pointed out that to improve the resolution on a coarse grid, increasing the relevance of less-smooth stencils is much more important than recovering accuracy at a critical point. By adding a new term that increases the relevance of less-smooth stencils to the original formula of weight, they proposed an improved version of the fifth-order WENO-Z scheme. Besides WENO-M and WENO-Z, other variants of WENO scheme have emerged and gained attention. Using a detector as weighting function to couple WENO reconstruction and linear compact scheme, hybrid method was proposed in [17, 18] to obtain low-dissipation and low-dispersion scheme for turbulence and aeroacoustics. Then, Sun et al. [19, 20] developed a linear minimum dispersion and controllable dissipation scheme to hybridize with WENO scheme to retain good performance in flow with shocks. However, hybrid function is critical in hybrid methods and still a big challenge. To reduce the dissipation, Martin et al. [21] proposed WENO-SYMBO scheme through adding a downwind stencil and optimizing the ideal coefficients for better spectral property. Hu et al. [22] proposed a new weighting strategy and new smoothness indicator for the downwind stencil, leading to the adaptive central-upwind sixth-order WENO scheme (WENO-CU6). However, since the background central scheme cannot suppress disturbances from accumulated dispersion errors, spurious waves may appear at marginally-resolved wave numbers. Based on Lagrangian interpolation polynomial, Pan et al. [23, 24] proposed a new smoothness indicator with more succinct form compared to the classical one by Jiang and Shu [5], leading to a scheme named WENO- η. Don et al. [25] found that due to the numerical unstable form of the local smoothness indicators, asymmetry occurs in an otherwise problem for seventh and higher-order WENO schemes. Then, they introduced an equivalent but compact and numerical stable form of the smoothness indicators. Recently, Fu et al. [26,27,28] proposed a family of targeted ENO (TENO) schemes. By using a set of low-order candidate stencils with incrementally increasing width, discontinuities and small-scale fluctuations are efficiently separated, and the numerical dissipation is significantly diminished by an ENO-like stencil selection.

Due to better resolution while with almost the same computational cost as WENO-JS, WENO-Z has gained extensive attention. In this article, from the simulation of linear advection equation, it is observed that the numerical solution of WENO-Z suffers distortion problem near a discontinuity. To overcome this deficiency, a symmetry-preserving mapping method is proposed to improve the WENO-Z scheme. This article is organized as follows. Section 2 describes the classical WENO-JS scheme and WENO-Z scheme. In Section 3, the original mapping method and the symmetry-preserving mapping method are introduced in detail. The mapped WENO-Z is proposed in Section 4. Numerical experiments with one- and two- dimensional benchmark problems are presented in Section 5. Conclusions are drawn in Section 6.

WENO scheme

WENO reconstruction

Here, a grid with uniform space Δx is used, and the positions of cell center and cell boundary are represented as xi = iΔx, \( {x}_{i+1/2}={x}_i+\frac{\varDelta x}{2},i=0,\dots, N \), respectively. The values of flux at cell center and cell boundary are denoted as fi = f(xi) and fi + 1/2 = f(xi + 1/2). The numerical flux h(x) is defined as

$$ f(x)=\frac{1}{\varDelta x}{\int}_{x-\varDelta x/2}^{x+\varDelta x/2}h\left(\xi \right)\mathrm{d}\xi, $$
(1)

so that \( \frac{1}{\varDelta x}\left({h}_{i+1/2}-{h}_{i-1/2}\right) \) is exactly equal to the first-order derivative of f at cell center i, i.e. \( {f}_i^{\hbox{'}} \).

Without loss of generality, the fifth-order WENO (WENO5) scheme is taken as an example to illustrate the WENO reconstruction procedure. In linear scheme, a fifth-order approximation of h(x) only needs a five-point stencil S5, while in WENO5, S5 is divided into three sub-stencils {S0, S1, S2}, and each sub-stencil contains three adjacent grid cells, shown in Fig. 1. In the smooth region, WENO5 combines each sub-stencil with corresponding ideal weights to obtain a fifth-order approximation of h(x). While in the region with discontinuities, to avoid numerical oscillation, sub-stencils containing the discontinuity are suppressed by assigning small weights to them.

Let \( \hat{h} \) denote the approximation of h(x), and the three sub-stencils of WENO5 give

$$ {\displaystyle \begin{array}{l}{\hat{h}}_{i+1/2}^0=\frac{1}{6}\left(2{f}_{i-2}-7{f}_{i-1}+11{f}_i\right),\\ {}{\hat{h}}_{i+1/2}^1=\frac{1}{6}\left(-{f}_{i-1}+5{f}_i+2{f}_{i+1}\right),\\ {}{\hat{h}}_{i+1/2}^2=\frac{1}{6}\left(2{f}_i+5{f}_{i+1}-{f}_{i+2}\right),\end{array}} $$
(2)

where the superscript is used to distinguish different sub-stencils. \( {h}_{i-1/2}^k \) can be obtained via shifting each index in \( {h}_{i+1/2}^k \) by −1.Then the \( {\hat{h}}_{i\pm 1/2} \) of stencil S5 is obtained by a weighted average of \( {h}_{i\pm 1/2}^k \),

$$ {\hat{h}}_{i\pm 1/2}=\sum \limits_{k=0}^2{\omega}_k{\hat{h}}_{i\pm 1/2}^k. $$
(3)

In the smooth region, the weights approach their ideal values, which are

$$ {d}_0=\frac{1}{10},\kern0.5em {d}_1=\frac{6}{10},\kern0.5em {d}_2=\frac{3}{10}. $$
(4)

WENO5-JS scheme

In the classical fifth-order WENO (WENO5-JS), proposed by Jiang and Shu [5], the nonlinear weights are defined as

$$ {\alpha}_k=\frac{d_k}{{\left({\beta}_k+\varepsilon \right)}^p},{\omega}_k=\frac{\alpha_k}{\sum_{l=0}^2{\alpha}_l},\kern0.5em k=0,1,2. $$
(5)

ε is a small positive parameter to avoid denominator being zero, and the power parameter p ≥ 1 controls the amount of dissipation, usually taken as 2. βk is the smoothness indicator of k-th sub-stencil, defined as

$$ {\displaystyle \begin{array}{l}{\beta}_0=\frac{13}{12}{\left({f}_{i-2}-2{f}_{i-1}+{f}_i\right)}^2+\frac{1}{4}{\left({f}_{i-2}-4{f}_{i-1}+3{f}_i\right)}^2,\\ {}{\beta}_1=\frac{13}{12}{\left({f}_{i-1}-2{f}_i+{f}_{i+1}\right)}^2+\frac{1}{4}{\left({f}_{i-1}-{f}_{i+1}\right)}^2,\\ {}{\beta}_2=\frac{13}{12}{\left({f}_i-2{f}_{i+1}+{f}_{i+2}\right)}^2+\frac{1}{4}{\left(3{f}_i-4{f}_{i+1}+{f}_{i+2}\right)}^2.\end{array}} $$
(6)

In the smooth region, in order to achieve optimal order of accuracy, i.e., satisfying the relation

$$ \frac{1}{\varDelta x}\left({\hat{h}}_{i+1/2}-{\hat{h}}_{i-1/2}\right)={f}_i^{\hbox{'}}+\mathrm{O}\left(\varDelta {x}^5\right), $$
(7)

the weights of sub-stencils need to meet certain constraints. A strong sufficient condition is used in [6], given as

$$ {\omega}_k={d}_k+\mathrm{O}\left(\varDelta {x}^3\right), $$
(8)

and a weaker sufficient condition is derived in [14],

$$ {\omega}_k={d}_k+\mathrm{O}\left(\varDelta {x}^2\right). $$
(9)

Taylor series expansions of Eq.(6) at cell center xi give

$$ {\displaystyle \begin{array}{l}{\beta}_0={f}^{\hbox{'}2}\varDelta {x}^2+\left(\frac{13}{12}{f}^{{}^{\hbox{'}\hbox{'}}2}-\frac{2}{3}{f}^{\hbox{'}}{f}^{\hbox{'}\hbox{'}\hbox{'}}\right)\varDelta {x}^4+\left(-\frac{13}{6}{f}^{\hbox{'}\hbox{'}}{f}^{\hbox{'}\hbox{'}\hbox{'}}+\frac{1}{2}{f}^{\hbox{'}}{f}^{(4)}\right)\varDelta {x}^5+\mathrm{O}\left(\varDelta {x}^6\right),\\ {}{\beta}_1={f}^{\hbox{'}2}\varDelta {x}^2+\left(\frac{13}{12}{f}^{\hbox{'}\hbox{'}2}+\frac{1}{3}{f}^{\hbox{'}}{f}^{\hbox{'}\hbox{'}\hbox{'}}\right)\varDelta {x}^4+\mathrm{O}\left(\varDelta {x}^6\right),\\ {}{\beta}_2={f}^{\hbox{'}2}\varDelta {x}^2+\left(\frac{13}{12}{f}^{{}^{\hbox{'}\hbox{'}}2}-\frac{2}{3}{f}^{\hbox{'}}{f}^{\hbox{'}\hbox{'}\hbox{'}}\right)\varDelta {x}^4+\left(\frac{13}{6}{f}^{\hbox{'}\hbox{'}}{f}^{\hbox{'}\hbox{'}\hbox{'}}-\frac{1}{2}{f}^{\hbox{'}}{f}^{(4)}\right)\varDelta {x}^5+\mathrm{O}\left(\varDelta {x}^6\right).\end{array}} $$
(10)
  • If f' ≠ 0, one can have

$$ {\beta}_k=D\left(1+\mathrm{O}\left(\varDelta {x}^2\right)\right),D={\left({f}^{\hbox{'}}\varDelta x\right)}^2. $$
(11)
  • If f' = 0 and f'' ≠ 0 (critical point), one can have

$$ {\beta}_k=D\left(1+\mathrm{O}\left(\varDelta x\right)\right),D=\frac{13}{12}{\left({f}^{\hbox{'}\hbox{'}}\varDelta {x}^2\right)}^2. $$
(12)

If βk in Eq.(6) takes the form of

$$ {\beta}_k=D\left(1+\mathrm{O}\left(\varDelta {x}^m\right)\right), $$
(13)

where D is a non-zero constant independent of sub-stencils, and m is a positive parameter. Then Eqs.(5) and (13) give

$$ {\alpha}_k=\frac{d_k}{D^p}\left(1+\mathrm{O}\left(\varDelta {x}^m\right)\right), $$
(14)

and

$$ \sum \limits_{k=0}^2{\alpha}_k=\frac{1}{D^p}\left(1+\mathrm{O}\left(\varDelta {x}^m\right)\right), $$
(15)

which lead to

$$ {\omega}_k={d}_k+\mathrm{O}\left(\varDelta {x}^m\right). $$
(16)

In the context of this article, a critical point refers to the point where the first-order derivative is zero while the second-order derivative is non-zero. From Eqs.(11) and (12), two observations can be obtained in the smooth region as follows.

  • At a point which is not a critical point, ωk obtained by WENO5-JS satisfies the weaker sufficient condition for achieving optimal order, i.e. Eq.(9).

  • At a critical point, ωk obtained by WENO5-JS only satisfies ωk = dk + Ο(Δx), resulting in the accuracy loss at this point.

WENO5-Z scheme

Borges et al. [9] found that the increase of weights of less-smooth sub-stencils can substantially improve the numerical solution near both discontinuities and small-scale structures. Based on this, through the novel use of higher information that is already presented in the framework of classical WENO5-JS, they devised new smoothness indicators given as

$$ {\beta}_k^{\mathrm{Z}}=\frac{\beta_k+\varepsilon }{\beta_k+{\tau}_5+\varepsilon }, $$
(17)

where τ5 =  β0 − β2 is the higher order smoothness indicator. τ5 has two important properties, which are

  • If S5 is smooth, then τ5 = Ο(Δx5).

  • If S5 is discontinuous, then τ5 = Ο(1) ≤ max(β0, β1, β2).

Substitute Eq.(17) into Eq.(5), and the new weights are obtained by

$$ {\alpha}_k^{\mathrm{Z}}={d}_k\left(1+\frac{\tau_5}{\beta_k+\varepsilon}\right),\kern0.5em {\omega}_k^{\mathrm{Z}}=\frac{\alpha_k^{\mathrm{Z}}}{\sum_{l=0}^2{\alpha}_l^{\mathrm{Z}}},\kern0.5em k=0,1,2, $$
(18)

which lead to the fifth-order WENO-Z (WENO5-Z). At a critical point with f' = 0 and f'' ≠ 0, βk = Ο(Δx4) in Eq.(10), leading to \( \frac{\tau_5}{\beta_k+\varepsilon }=\mathrm{O}\left(\varDelta x\right) \) and thus ωk = dk + Ο(Δx). Therefore, Eq.(18) does not solve the problem of accuracy loss at a critical point. However, due to the larger assignment of weights to the less-smooth sub-stencils, the numerical results of WENO5-Z are substantially improved compared to WENO5-JS, and slightly better compared to WENO5-M, details shown in [9].

Castro et al. [10] then fixed the problem of accuracy loss and extended WENO5-Z to higher order. For (2r − 1) th-order WENO-Z, the weights are obtained by

$$ {\alpha}_k^{\mathrm{Z}}={d}_k\left(1+{\left(\frac{\tau_{2r-1}}{\beta_k+\varepsilon}\right)}^p\right),\kern0.5em {\omega}_k^{\mathrm{Z}}=\frac{\alpha_k^{\mathrm{Z}}}{\sum_{l=0}^{r-1}{\alpha}_l^{\mathrm{Z}}},\kern0.5em k=0,\cdots, r-1. $$
(19)

The power parameter p ≥ 1 in Eq.(19) plays two roles. On one hand, p controls the amount of numerical dissipation, and the scheme is more dissipative with a larger p. On the other hand, the accuracy at a critical point can be recovered by increasing p. The former is intuitive and easy to understand. As for the latter, at a critical point, \( {\left(\frac{\tau_5}{\beta_k+\varepsilon}\right)}^p=\mathrm{O}\left(\varDelta {x}^p\right) \) leads to ωk = dk + Ο(Δxp), and thus the weaker sufficient condition, Eq.(9), for achieving optimal order is satisfied if p ≥ 2. Changing the value of p to alter convergence rate at critical points is a unique feature of WENO-Z, while in WENO-JS and WENO-M, p only controls the amount of numerical dissipation. In order to balance accuracy and stability, for (2r − 1) th-order scheme, p is generally suggested to be r − 1 [10].

The symmetry-preserving mapping method

The mapping method by Henrick

Henrick et al. [6] first pointed out the fact that WENO5-JS suffers accuracy loss at a critical point, and then they introduced an extra mapping process to recover the accuracy, where the weights are mapped to more accurate values. To be specific, the mapping is achieved through a set of mapping functions having the form of

$$ {g}_k\left(\omega \right)=\frac{\omega \left({d}_k+{d}_k^2-3{d}_k\omega +{\omega}^2\right)}{d_k^2+\omega \left(1-2{d}_k\right)},\kern0.5em \omega \in \left(0,1\right). $$
(20)

The function is smooth and has the following features: gk(0) = 0, gk(1) = 1, gk(dk) = dk, \( {g}_k^{\hbox{'}}\left({d}_k\right)=0 \) and \( {g}_k^{\hbox{'}\hbox{'}}\left({d}_k\right)=0 \). Once the weight of WENO5-JS in Eq.(5) is obtained, the new unnormalized weight is given by

$$ {\alpha}_k^{\ast }={g}_k\left({\omega}_k\right). $$
(21)

Taylor series expansion of Eq.(21) gives

$$ {\displaystyle \begin{array}{l}{\alpha}_k^{\ast }={g}_k\left({d}_k\right)+{g}_k^{\hbox{'}}\left({d}_k\right)\left({\omega}_k-{d}_k\right)+\frac{g_k^{\hbox{'}\hbox{'}}\left({d}_k\right)}{2}{\left({\omega}_k-{d}_k\right)}^2+\frac{g_k^{\hbox{'}\hbox{'}\hbox{'}}\left({d}_k\right)}{6}{\left({\omega}_k-{d}_k\right)}^3\\ {}\kern1.25em ={d}_k+\frac{{\left({\omega}_k-{d}_k\right)}^3}{d_k-{d}_k^3}+\cdots \\ {}\kern1.25em ={d}_k+\mathrm{O}\left(\varDelta {x}^3\right).\end{array}} $$
(22)

Then, new weight is obtained by

$$ {\omega}_k^{\mathrm{M}}=\frac{\alpha_k^{\ast }}{\sum_{l=0}^2{\alpha}_l^{\ast }}. $$
(23)

Substitute Eq.(22) into Eq.(23), and new weight satisfies

$$ {\omega}_k^{\mathrm{M}}=\frac{\alpha_k^{\ast }}{\sum_{l=0}^2{\alpha}_l^{\ast }}=\frac{d_k+\mathrm{O}\left(\varDelta {x}^3\right)}{1+\mathrm{O}\left(\varDelta {x}^3\right)}={d}_k+\mathrm{O}\left(\varDelta {x}^3\right). $$
(24)

Eq.(24) indicates that the strong sufficient condition, Eq.(8), is satisfied. Therefore, the problem of accuracy loss at a critical point is fixed. The resultant mapped WENO scheme is generally abbreviated as WENO-M.

The asymmetric improvement of WENO5-M

Here, the linear advection equation,

$$ \frac{\partial u}{\partial t}+\frac{\partial u}{\partial x}=0,\kern0.5em x\in \left[-1,1\right], $$
(25)

with periodic boundary conditions, is taken as an example for illustration. Consider a single square wave, and the initial condition is

$$ u\left(x,t=0\right)=\left\{\begin{array}{l}1,\kern0.5em x\in \left[-0.5,0.5\right],\\ {}0,\kern0.5em \mathrm{else}.\end{array}\right. $$
(26)

The third-order TVD Runge-Kutta method is used to do the discretization in time, expressed as

$$ {\displaystyle \begin{array}{l}{Q}^{(0)}={Q}^{\mathrm{n}},\\ {}{Q}^{(1)}={Q}^{(0)}+\varDelta tR\left({Q}^{(0)}\right),\\ {}{Q}^{(2)}=\frac{3}{4}{Q}^{(0)}+\frac{1}{4}{Q}^{(1)}+\frac{1}{4}\varDelta tR\left({Q}^{(1)}\right),\\ {}{Q}^{(3)}=\frac{1}{3}{Q}^{(0)}+\frac{2}{3}{Q}^{(2)}+\frac{2}{3}\varDelta tR\left({Q}^{(2)}\right),\\ {}{Q}^{\mathrm{n}+1}={Q}^{(3)}.\end{array}} $$
(27)

Time is integrated to t = 20, and the numerical results are shown in Fig. 2. Due to the less dissipation of WENO5-M compared to WENO5-JS, an improvement in the result near the discontinuity is observed in Fig. 2 (a). From the absolute pointwise errors in Fig. 2 (b), however, the improvement on both sides of the discontinuity is not in a symmetric fashion. Specifically, the error curve of WENO5-JS is almost symmetric about the discontinuity, shown with a red line in Fig. 2 (b), while WENO5-M has obvious larger error on the right side of the discontinuity, shown with a blue line in Fig. 2 (b). Consequently, as is shown in Fig. 2 (a), the improvement of WENO5-M on the right side of the discontinuity is obviously less than that on the left side. Due to the asymmetry near the discontinuity, the whole error curve of WENO5-M is no longer symmetric about the center of domain x = 0, shown in Fig. 2 (b).

Fig. 1
figure1

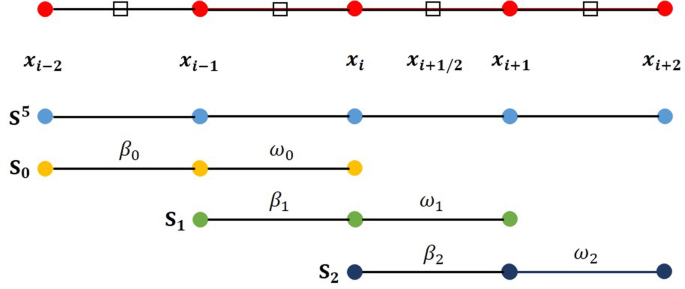

Schematic of stencil and sub-stencils in WENO5

Fig. 2
figure2

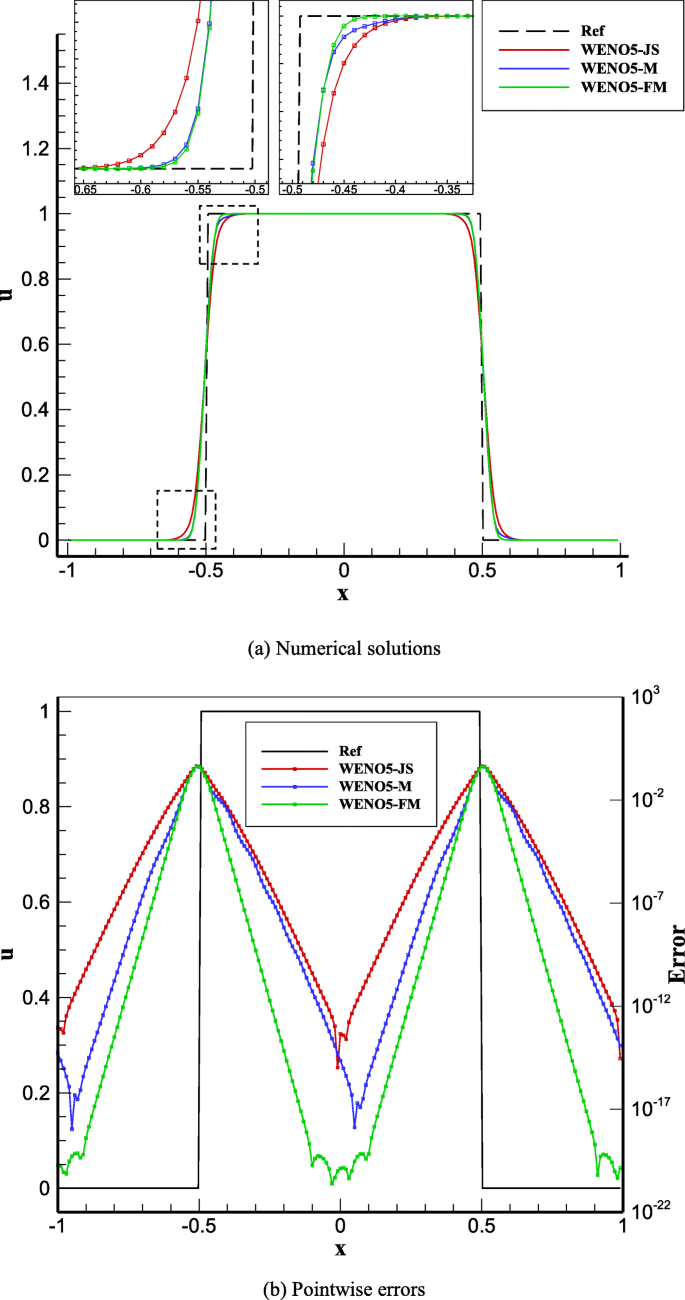

Numerical solutions and absolute pointwise errors of linear advection equation computed by WENO5-JS, WENO5-M and WENO5-FM at t = 20. A uniform grid with 200 cells is used. CFL = 0.1

In order to clarify the cause of this asymmetric improvement of WENO5-M, a simple model shown in Fig. 3 is used. On a six-point domain with a discontinuity at the center, there are two sets of five-point stencils symmetric about the discontinuity. A quantity with superscript L belongs to the left stencil, while with superscript R belongs to the right stencil.

Fig. 3
figure3

Schematic of the analysis model

According to Eq.(6) and due to the symmetry, smoothness indicators of left and right stencils have the following relation,

$$ {\displaystyle \begin{array}{l}{\beta}_0^{\mathrm{L}}={\beta}_2^{\mathrm{R}}=0,\\ {}{\beta}_1^{\mathrm{L}}={\beta}_1^{\mathrm{R}}=\frac{13}{12}{\left(b-a\right)}^2+\frac{1}{4}{\left(b-a\right)}^2,\\ {}{\beta}_2^{\mathrm{L}}={\beta}_0^{\mathrm{R}}=\frac{13}{12}{\left(b-a\right)}^2+\frac{1}{4}{\left(3b-3a\right)}^2.\end{array}} $$
(28)

Obviously, for the left stencil, 0-th sub-stencil is the smoothest, and 2-th sub-stencil is the least smooth. While for the right stencil, 2-th sub-stencil is the smoothest, and 0-th sub-stencil is the least smooth.

According to Eq.(5), the weight of each sub-stencil on the same stencil satisfies the relation,

$$ \frac{\omega_i}{\omega_j}=\frac{d_i}{d_j}{\left(\frac{\beta_j+\varepsilon }{\beta_i+\varepsilon}\right)}^p,\kern0.5em i=0,1,2,\kern0.5em j=0,1,2. $$
(29)

Assuming that θ, σ are weights assigned to the least-smooth sub-stencils of left and right stencils, the weight of each sub-stencil can be written as

$$ {\displaystyle \begin{array}{l}{\omega}_0^{\mathrm{L}}=1-{\omega}_1^{\mathrm{L}}-{\omega}_2^{\mathrm{L}},\kern0.5em {\omega}_1^{\mathrm{L}}=2\cdot {\left(\frac{5}{2}\right)}^p\theta, \kern0.5em {\omega}_2^{\mathrm{L}}=\theta; \\ {}{\omega}_0^{\mathrm{R}}=\sigma, \kern0.5em {\omega}_1^{\mathrm{R}}=6\cdot {\left(\frac{5}{2}\right)}^p\sigma, \kern0.5em {\omega}_2^{\mathrm{R}}=1-{\omega}_0^{\mathrm{R}}-{\omega}_1^{\mathrm{R}}.\end{array}} $$
(30)

WENO scheme behaves like an ENO scheme at a discontinuity, and thus θ, σ are small values close to 0. Then, new weights are obtained through the mapping process, i.e.,

$$ {\displaystyle \begin{array}{l}{\omega}_k^{\mathrm{L},\mathrm{M}}=\frac{g_k\left({\omega}_k^{\mathrm{L}}\right)}{g_0\left({\omega}_0^{\mathrm{L}}\right)+{g}_1\left({\omega}_1^{\mathrm{L}}\right)+{g}_2\left({\omega}_2^{\mathrm{L}}\right)},\\ {}{\omega}_k^{\mathrm{R},\mathrm{M}}=\frac{g_k\left({\omega}_k^{\mathrm{R}}\right)}{g_0\left({\omega}_0^{\mathrm{R}}\right)+{g}_1\left({\omega}_1^{\mathrm{R}}\right)+{g}_2\left({\omega}_2^{\mathrm{R}}\right)}.\end{array}} $$
(31)

As θ, σ approach 0, it is approximately obtained that

$$ {\displaystyle \begin{array}{l}\frac{\omega_0^{\mathrm{L},\mathrm{M}}}{\omega_0^{\mathrm{L}}}=1,\kern0.5em \frac{\omega_1^{\mathrm{L},\mathrm{M}}}{\omega_1^{\mathrm{L}}}=1+\frac{1}{d_1}=\frac{8}{3},\kern0.5em \frac{\omega_2^{\mathrm{L},\mathrm{M}}}{\omega_2^{\mathrm{L}}}=1+\frac{1}{d_2}=\frac{13}{3};\\ {}\frac{\omega_0^{\mathrm{R},\mathrm{M}}}{\omega_0^{\mathrm{R}}}=1+\frac{1}{d_0}=11,\kern0.5em \frac{\omega_1^{\mathrm{R},\mathrm{M}}}{\omega_1^{\mathrm{R}}}=1+\frac{1}{d_1}=\frac{8}{3},\kern0.5em \frac{\omega_2^{\mathrm{R},\mathrm{M}}}{\omega_2^{\mathrm{R}}}=1.\end{array}} $$
(32)

From Eq.(32), it is observed that after mapping, the magnification of weight of the least-smooth sub-stencil is not identical for both sides of the discontinuity, i.e. \( \frac{\omega_2^{\mathrm{L},\mathrm{M}}}{\omega_2^{\mathrm{L}}}\ne \frac{\omega_0^{\mathrm{R},\mathrm{M}}}{\omega_0^{\mathrm{R}}} \), obviously larger on the right side. It is the mismatched magnification that results in the asymmetric improvement of WENO5-M around a discontinuity.

A symmetry-preserving mapping method

It is the derivative of mapping function at 0 that determines the magnification of weight of less-smooth sub-stencils, i.e.,

$$ {g}_k^{\hbox{'}}(0)=1+\frac{1}{d_k}. $$
(33)

Due to the difference in ideal weights for each sub-stencil, mapping the weight with the function by Henrick inevitably causes the problem of asymmetric improvement. There are two ways to overcome the problem of mismatched magnification. One way is to redesign a set of mapping functions with identical derivatives at 0, and the other is to choose a new mapping object that has the same ideal value for each sub-stencil. An example of the former is the work in [7], where the new mapping function is smooth and piecewise,

$$ {p}_k\left(\omega \right)={c}_1{\left(\omega -{d}_k\right)}^{n+1}\left(\omega +{c}_2\right)+{d}_k,\kern0.5em n\ge 2, $$
(34)

where

$$ {c}_1=\left\{\begin{array}{l}{\left(-1\right)}^n\frac{n+1}{{\left({d}_k\right)}^{n+1}},\kern0.5em \omega \in \left[0,{d}_k\right],\\ {}-\frac{n+1}{{\left(1-{d}_k\right)}^{n+1}},\kern0.75em \mathrm{else},\end{array}\right. $$
(35)

and

$$ {c}_2=\left\{\begin{array}{l}\frac{d_k}{n+1},\kern3.5em \omega \in \left[0,{d}_k\right],\\ {}\frac{d_k-\left(n+2\right)}{n+1},\kern0.75em \mathrm{else}.\end{array}\right. $$
(36)

The new function has identical derivative at 0,

$$ {p}_k^{\hbox{'}}(0)=0. $$
(37)

In [7], the researchers noticed the distortion problem of WENO5-M, but they improperly attributed this to the numerical instability, which was thought to be caused by over-amplification of weight of less-smooth sub-stencil. Therefore, they proposed the function with derivative of 0 at 0, in the form of Eq.(34), to retain the ENO property at a strong discontinuity. Although the reason is not properly understood, due to restricting all derivatives to be identical at 0, using mapping function in the form of Eq.(34) is able to avoid the problem of asymmetric improvement. However, extra constraint on derivative brings difficulty in designing concise mapping function, and complicated function will result in significantly increased computational cost. The other way is choosing a new mapping object that has identical ideal value for each sub-stencil, so that extra constraint on derivative at 0 is not necessary. Furthermore, when the ideal value is the same, the mapping function is unique, and the function design is much simplified. Therefore, the second way is more reasonable.

In the formula of weight Eq.(5), besides the weight ωk, there is another quantity related to each sub-stencil, i.e. the smoothness indicator βk. In the smooth region, different from the weight ωk, the smoothness indicator βk is equal for each sub-stencil, and thus its ideal value is unique. In order to keep proportional to ωk, consider the inverse of smoothness indicator with power parameter p, i.e. \( \frac{1}{{\left({\beta}_k+\varepsilon \right)}^p} \). But for mapping, it is necessary to normalize them to a limited interval,

$$ {\lambda}_k=\frac{1/{\left({\beta}_k+\varepsilon \right)}^p}{\sum_{l=0}^2\left(1/{\left({\beta}_l+\varepsilon \right)}^p\right)},\kern0.5em {\lambda}_k\in \left(0,1\right). $$
(38)

The normalized variable, λk, is the new mapping object, and its unique ideal value is

$$ \overline{\lambda}=\frac{1}{3}. $$
(39)

In general, the ideal value of λk for (2r − 1) th-order WENO scheme is \( \frac{1}{r} \).

Substitute Eq.(12) into Eq.(38), and it is obtained at a critical point that

$$ {\lambda}_k=\overline{\lambda}+\mathrm{O}\left(\varDelta x\right). $$
(40)

It is straightforward to apply the mapping function, originally designed for ωk, to do the mapping for λk. Considering the function by Henrick, the mapping function for λk is unique and written as

$$ g\left(\lambda \right)=\frac{\lambda \left(\overline{\lambda}+{\overline{\lambda}}^2-3\overline{\lambda}\lambda +{\lambda}^2\right)}{{\overline{\lambda}}^2+\lambda \left(1-2\overline{\lambda}\right)}. $$
(41)

Similar to Eq.(22), after mapping, it is obtained that

$$ {\lambda}_k^{\ast }=\overline{\lambda}+\mathrm{O}\left(\varDelta {x}^3\right). $$
(42)

Then, new weight is evaluated and satisfies

$$ {\omega}_k^{\mathrm{FM}}=\frac{d_k{\lambda}_k^{\ast }}{\sum_{l=0}^2{d}_l{\lambda}_l^{\ast }}=\frac{d_k\left(\overline{\lambda}+\mathrm{O}\left(\varDelta {x}^3\right)\right)}{\sum_{l=0}^2{d}_l\left(\overline{\lambda}+\mathrm{O}\left(\varDelta {x}^3\right)\right)}={d}_k+\mathrm{O}\left(\varDelta {x}^3\right). $$
(43)

Eqs.(43) and (24) indicate that at a critical point, mapping λk can achieve the same effect as mapping ωk.

According to Eqs.(28) and (38), λk for the left and right stencils in Fig. 3 satisfies

$$ {\lambda}_0^{\mathrm{L}}={\lambda}_2^{\mathrm{R}},{\lambda}_1^{\mathrm{L}}={\lambda}_1^{\mathrm{R}},{\lambda}_2^{\mathrm{L}}={\lambda}_0^{\mathrm{R}}. $$
(44)

After mapping with function Eq.(41), the mapped value still satisfies

$$ {\lambda}_0^{\mathrm{L},\ast }={\lambda}_2^{\mathrm{R},\ast },{\lambda}_1^{\mathrm{L},\ast }={\lambda}_1^{\mathrm{R},\ast },{\lambda}_2^{\mathrm{L},\ast }={\lambda}_0^{\mathrm{R},\ast }. $$
(45)

According to Eq.(43), it is obtained that

$$ \frac{\omega_i^{\mathrm{FM}}}{\omega_j^{\mathrm{FM}}}=\frac{d_i}{d_j}\frac{\lambda_i^{\ast }}{\lambda_j^{\ast }},\kern0.5em i=0,1,2,\kern0.5em j=0,1,2. $$
(46)

Based on Eqs.(45) and (46), one has

$$ \frac{\omega_2^{\mathrm{L},\mathrm{FM}}}{\omega_0^{\mathrm{L},\mathrm{FM}}}=\frac{\omega_0^{\mathrm{R},\mathrm{FM}}}{\omega_2^{\mathrm{R},\mathrm{FM}}},\frac{\omega_1^{\mathrm{L},\mathrm{FM}}}{\omega_0^{\mathrm{L},\mathrm{FM}}}=\frac{\omega_1^{\mathrm{R},\mathrm{FM}}}{\omega_2^{\mathrm{R},\mathrm{FM}}}. $$
(47)

As \( {\omega}_2^{\mathrm{L}},{\omega}_2^{\mathrm{R}} \) approach 0, \( \frac{\omega_0^{\mathrm{L},\mathrm{FM}}}{\omega_0^{\mathrm{L}}} \) and \( \frac{\omega_2^{\mathrm{R},\mathrm{FM}}}{\omega_2^{\mathrm{R}}} \) approach 1. Therefore, it is approximately obtained that

$$ {\displaystyle \begin{array}{l}\frac{\omega_2^{\mathrm{L},\mathrm{FM}}}{\omega_2^{\mathrm{L}}}=\frac{\omega_2^{\mathrm{L},\mathrm{FM}}}{\omega_0^{\mathrm{L},\mathrm{FM}}}\cdot \frac{\omega_0^{\mathrm{L}}}{\omega_2^{\mathrm{L}}},\frac{\omega_1^{\mathrm{L},\mathrm{FM}}}{\omega_1^{\mathrm{L}}}=\frac{\omega_1^{\mathrm{L},\mathrm{FM}}}{\omega_0^{\mathrm{L},\mathrm{FM}}}\cdot \frac{\omega_0^{\mathrm{L}}}{\omega_1^{\mathrm{L}}};\\ {}\frac{\omega_0^{\mathrm{R},\mathrm{FM}}}{\omega_0^{\mathrm{R}}}=\frac{\omega_0^{\mathrm{R},\mathrm{FM}}}{\omega_2^{\mathrm{R},\mathrm{FM}}}\cdot \frac{\omega_2^{\mathrm{R}}}{\omega_0^{\mathrm{R}}},\frac{\omega_1^{\mathrm{R},\mathrm{FM}}}{\omega_1^{\mathrm{R}}}=\frac{\omega_1^{\mathrm{R},\mathrm{FM}}}{\omega_2^{\mathrm{R},\mathrm{FM}}}\cdot \frac{\omega_2^{\mathrm{R}}}{\omega_1^{\mathrm{R}}}.\end{array}} $$
(48)

From Eqs.(28) and (29), one has

$$ \frac{\omega_2^{\mathrm{L}}}{\omega_0^{\mathrm{L}}}=\frac{\omega_0^{\mathrm{R}}}{\omega_2^{\mathrm{R}}},\frac{\omega_1^{\mathrm{L}}}{\omega_0^{\mathrm{L}}}=\frac{\omega_1^{\mathrm{R}}}{\omega_2^{\mathrm{R}}}. $$
(49)

According to Eqs.(33), (47), (48) and (49), it is obtained that

$$ \frac{\omega_2^{\mathrm{L},\mathrm{FM}}}{\omega_2^{\mathrm{L}}}=\frac{\omega_0^{\mathrm{R},\mathrm{FM}}}{\omega_0^{\mathrm{R}}}=\frac{\omega_1^{\mathrm{L},\mathrm{FM}}}{\omega_1^{\mathrm{L}}}=\frac{\omega_1^{\mathrm{R},\mathrm{FM}}}{\omega_1^{\mathrm{R}}}=1+\frac{1}{\overline{\lambda}}. $$
(50)

Eq.(50) indicates that using the new mapping object λk, the problem of mismatched magnification of weights of less-smooth sub-stencils is fixed.

In this article, WENO5-JS with the symmetry-preserving mapping method is abbreviated as WENO5-FM. As is shown in Fig. 2 (b), the error curve of WENO5-FM is symmetric about the discontinuity, and almost symmetric about the center x = 0 on the whole domain. Consequently, compared to WENO5-JS, the improvement of WENO5-FM on both sides of a discontinuity is in a symmetric fashion. To present an intuitive comparison, the linear advection equation initialized by Eq.(26), is still numerically tested here. Results of the first way, where Eq.(34) is used to map ωk, are also presented, n = 6 as suggested in [7]. The corresponding scheme is abbreviated as WENO5-MP. As is shown in Fig. 4, with longer output time t = 100, the asymmetric improvement is more evident compared the case of t = 20. On the left side of the discontinuity, three schemes have similar results, while on the right side, the result of WENO5-M is much worse than the others and suffers obvious distortion.

Fig. 4
figure4

Numerical results of linear advection equation computed by WENO5-M, WENO5-MP and WENO5-FM at t = 100. A uniform grid with 200 cells is used. CFL = 0.1

It is observed from Fig. 5 that at t = 250, both sides of the discontinuity are influenced in the result of WENO5-M, and similar to the right side of the discontinuity, the result on the left side also becomes distorted. On the right side of the discontinuity, the results of WENO5-MP and WENO5-FM are still close to each other, similar to the case of t = 100. However, on the left side, there is obvious overshoot in the result of WENO5-MP, shown with a blue line in Fig. 5. Taking the result at t = 400 in Fig. 6 into consideration together, it can be inferred that the overshoot of WENO5-MP is caused by numerical instability. From the results at t = 100, 250, 400, WENO5-FM is always able to obtain non-oscillatory results and the improvement is symmetric about the discontinuity.

Fig. 5
figure5

Numerical results of linear advection equation computed by WENO5-M, WENO5-MP and WENO5-FM at t = 250. A uniform grid with 200 cells is used. CFL = 0.1

Fig. 6
figure6

Numerical results of linear advection equation computed by WENO5-M, WENO5-MP and WENO5-FM at t = 400. A uniform grid with 200 cells is used. CFL = 0.1

As is mentioned before, to enhance the numerical stability near a discontinuity, the function used in WENO5-MP constrains the derivative at 0 to be 0, but numerical oscillation is observed in Figs. 5 and 6. To figure out the numerical instability, it is necessary to have an observation at the distribution of mapping functions. As is shown in Fig. 7, the black dashed line corresponds to the case without mapping, while the red and blue lines are related to functions used in WENO5-FM and WENO5-MP, respectively. Due to different ideal weights for each sub-stencil, there are three different functions involved in WENO5-MP. Only the function for the minimum weight \( {d}_0=\frac{1}{10} \), is presented in Fig. 7.

Fig. 7
figure7

Distribution of the mapping functions

It is observed that the magnification of weight near 0 is smaller with blue line, which is beneficial to capture strong discontinuities. However, for a weak discontinuity in numerical sense, i.e., the weight is not so close to 0 or 1 but deviates significantly from the ideal value, the adjustment of weight is obviously stronger with blue line. From the results in Figs. 4, 5 and 6, it can be concluded that even with larger magnification of weight near strong discontinuity, the numerical stability of WENO5-FM is still ensured. By contrast, there is no oscillation observed in the result of WENO5-MP at t = 100, while evident oscillation occurs at t = 250 when the initial strong discontinuity is smoothed out and becomes much weaker due to numerical dissipation. It can be inferred that, the numerical instability of WENO5-MP comes from the over-adjustment of weight near a weak discontinuity. As is mentioned previously, there is a controllable parameter n in the function defined by Eq.(34). Functions with n = 4 and n = 2 are plotted in Fig. 7, and it is shown that with smaller n, the adjustment of weight is weaker, especially in the region with weak discontinuities. Figure 8 shows the results of WENO5-MP with n = 6, 4, 2. In the results of n = 4, 2, there is no numerical oscillation observed, while n = 2 leads to a slightly more dissipative result. This further supports the inference that the numerical instability is due to the over-adjustment of weight near a weak discontinuity.

Fig. 8
figure8

Numerical results of linear advection equation computed by WENO5-MP with n = 6, 4, 2 at t = 250. A uniform grid with 200 cells is used. CFL = 0.1

The above results suggest that weak discontinuity is also important for numerical stability. To ensure a stable mapping, excessive adjustment should be avoided near both strong and weak discontinuities. The core of mapping method lies in the mapping function, and different requirements on a scheme, such as strong stability, low dissipation, can be met with specifically designed function. In terms of function design, using λk to map has two main advantages over using ωk. On one hand, for (2r − 1) th-order scheme, there are r different ideal weights and thus r different functions need to be designed. While there is only one function to be designed for using λk to map due to the unique ideal value, which greatly simplifies the function design. On the other hand, the minimum ideal weight is closer to 0 with higher order, e.g., \( {d}_0=\frac{1}{10},\frac{1}{35},\frac{1}{126} \) for fifth-, seventh- and ninth-order schemes, respectively. Ideal value close to 0 brings difficulty in balancing accuracy recovery and numerical stability. By contrast, \( \overline{\lambda}=\frac{1}{3},\frac{1}{4},\frac{1}{5} \) for fifth-, seventh- and ninth-order schemes respectively, which significantly alleviates this dilemma.

Improved WENO5-Z with mapping

The distortion of WENO-Z in long-time simulation

Figure 9 shows the numerical results of WENO5-JS in simulating linear advection equation initialized by Eq.(26). Due to the role of numerical dissipation, the sharp discontinuity is captured in the form of smooth curve at a short time t = 4. However, with longer output time t = 100, 250, the result near a discontinuity suffers not only greater dissipation, but also distortion, obviously shown with a green line at t = 250. Greater dissipation with longer output time is normal, while the distortion is not expected and severely deviates the numerical solution from the real solution.

Fig. 9
figure9

Numerical solutions of linear advection equation computed by WENO5-JS at t = 4, 100, 250. A uniform grid with 200 cells is used. CFL = 0.1

By introducing a global smoothness indicator, the relevance of less-smooth sub-stencil is increased in WENO5-Z, and thus less dissipation is achieved compared to WENO5-JS. However, it is shown in Fig. 10 that the distortion still exists in the results of WENO5-Z. Different from WENO5-JS, the distortion is already obvious at t = 100 for WENO5-Z, shown with a blue line in Fig. 10, while the distortion at t = 250 is less severe compared to WENO5-JS.

Fig. 10
figure10

Numerical solutions of linear advection equation computed by WENO5-Z at t = 4, 100, 250. A uniform grid with 200 cells is used. CFL = 0.1

The distortion problem of WENO5-JS and WENO5-Z, in the long-time simulation of linear advection equation, is also observed by Feng et al. [7]. By designing a new set of mapping functions that satisfy \( {g}_k^{\hbox{'}}(0)=0 \), the distortion problem of WENO5-JS was fixed with an extra mapping process. Inspired by this, the mapping method can also be potential to overcome the distortion problem of WENO5-Z. However, based on the results in Section 3, it is necessary to adopt the symmetric-preserving mapping method.

Mapped WENO5-Z scheme

It is straightforward to do the symmetric-preserving mapping for WENO5-Z. Specifically, the new variable for WENO5-Z to map is

$$ {\lambda}_k^{\mathrm{Z}}=1+{\left(\frac{\tau_5}{\beta_k+\varepsilon}\right)}^p. $$
(51)

The ideal value of \( {\lambda}_k^{\mathrm{Z}} \) is the same as \( \overline{\lambda} \), i.e.,

$$ {\overline{\lambda}}^{\mathrm{Z}}=\frac{1}{3}. $$
(52)

Therefore, the mapping function is also the same as Eq.(41). Through mapping, it is obtained that

$$ {\lambda}_k^{\mathrm{Z}\ast }=g\left({\lambda}_k^{\mathrm{Z}}\right). $$
(53)

Then, the new weight is obtained by

$$ {\omega}_k^{\mathrm{Z}\mathrm{M}}=\frac{d_k{\lambda}_k^{\mathrm{Z}\ast }}{\sum_{l=0}^2{d}_l{\lambda}_l^{\mathrm{Z}\ast }}. $$
(54)

In this article, WENO5-Z with the symmetric-preserving mapping method is abbreviated as WENO5-ZM.

To demonstrate the effect of the mapping on WENO5-Z, the same numerical simulation in Section 4.1 is conducted. As is shown in Fig. 11, there is no more distortion observed in the results of WENO5-ZM at t = 100, 250, shown with the green and orange lines. With distortion problem fixed, the improvement near the discontinuity is significant compared to WENO5-Z.

Fig. 11
figure11

Numerical results of linear advection equation computed by WENO5-Z and WENO5-ZM at t = 100, 250. A uniform grid with 200 cells is used. CFL = 0.1. “(M)” corresponds to the WENO5-ZM

To further demonstrate the performance of WENO5-ZM in problems with multiple discontinuities, consider the following initial condition,

$$ u\left(x,t=0\right)=\left\{\begin{array}{l}\frac{1}{6}\left[G\left(x,\beta, z-\delta \right)+4G\left(x,\beta, z\right)+G\left(x,\beta, z+\delta \right)\right],\kern1em x\in \left[-0.8,-0.6\right],\\ {}1,\kern19.25em x\in \left[-0.6,-0.4\right],\\ {}1-\left|10\left(x-0.1\right)\right|,\kern13.5em x\in \left[0,0.2\right],\\ {}\frac{1}{6}\left[F\left(x,\alpha, a-\delta \right)+4F\left(x,\alpha, a\right)+F\left(x,\alpha, a+\delta \right)\right],\kern0.75em x\in \left[0.4,0.6\right],\\ {}0,\kern19.25em \mathrm{else},\end{array}\right. $$
(55)

where \( G\left(x,\beta, z\right)={e}^{-\beta {\left(x-z\right)}^2}, \)\( F\left(x,\alpha, a\right)=\sqrt{\max \left(1-{\alpha}^2{\left(x-a\right)}^2,0\right)}, \)z =  − 0.7, δ = 0.005, \( \beta =\frac{\log 2}{36{\delta}^2}, \)a = 0.5, α = 10. The initial condition consists of a Gaussian function, a square function, a piecewise linear triangle function and an ellipse function. It is shown in Fig. 12 that at a short time t = 4, there is no evident distortion in the results of WENO5-JS and WENO5-Z, and WENO5-Z has slight improvement near a discontinuity compared to WENO5-JS. By contrast, the improvement of WENO5-ZM is much significant, clearly shown in the zoomed-in solutions with the green line. As is shown in Figs. 13 and 14, at t = 100, 250, there is evident distortion in both results of WENO5-JS and WENO5-Z, and it is more severe with WENO5-JS. As expected, all the results of WENO5-ZM free from the distortion problem, and significantly improved results near discontinuities are observed. For comparison, the result of WENO5-FM is also presented in this test case. As is shown in these figures, WENO5-FM produces results very similar to that of WENO5-ZM, Specifically, WENO5-FM shows slightly more dissipation compared to WENO5-ZM, see the zoomed-in solutions.

Fig. 12
figure12

Numerical results of linear advection equation, initialized with Eq.(55), computed by WENO5-JS, WENO5-Z, WENO5-ZM and WENO5-FM at t = 4. A uniform grid with 400 cells is used. CFL = 0.2

Fig. 13
figure13

Numerical results of linear advection equation, initialized with Eq.(55), computed by WENO5-JS, WENO5-Z, WENO5-ZM and WENO5-FM at t = 100. A uniform grid with 400 cells is used. CFL = 0.2

Fig. 14
figure14

Numerical results of linear advection equation, initialized with Eq.(55), computed by WENO5-JS, WENO5-Z, WENO5-ZM and WENO5-FM at t = 250. A uniform grid with 400 cells is used. CFL = 0.2

Following the approximated dispersion relation (ADR) analysis [29], the spectral properties of various schemes are shown in Fig. 15. With the symmetry-preserving mapping, the bias of overall scheme towards the linear scheme is increased. Thus, the spectral properties of WENO5-FM and WENO5-ZM are improved compared to WENO5-JS and WENO5-Z, respectively. Since WENO5-Z has better resolution than WENO5-JS in the intermediate-to-high wave-number range, WENO5-ZM shows lower dispersion and dissipation than WENO5-FM. Notice that WENO5-Z shows better spectral properties than WENO5-FM in the intermediate wave-number range, roughly from ξ = 1 to ξ = 1.5. However, as is shown in Figs. 12, 13 and 14, WENO5-FM produces much better results than WENO5-Z near discontinuities.

Fig. 15
figure15

Spectral properties of WENO5-JS, WENO5-Z, WENO5-FM and WENO5-ZM

Pre-discrete mapping method

The disadvantage of mapping method is obvious, i.e., due to involving extra mapping process, the computational cost will be increased. As was reported in [10], WENO5-M led to 20% ~ 30% extra cost compared to WENO5-JS. More complex function, like Eq.(34), will undoubtedly worsen this disadvantage.

In order to reduce the cost of mapping process, Hong et al. [30] proposed a pre-discrete mapping method. The method consists of three steps, which are described as follows.

  1. Step 1.

    Discretize the interval (0, 1), range of λk, with a uniform space \( \varDelta \lambda =\frac{1}{N} \), where N is the number of subintervals and satisfies

$$ \frac{1}{N}<\varDelta x. $$
(56)
  1. Step 2.

    The discrete sequence of λk can be expressed as λk, j = 0 + jΔλ, j = 0, …, N, and corresponding discrete sequence of mapped value can be obtained by

$$ {\lambda}_{k,j}^{\ast }=g\left({\lambda}_{k,j}\right). $$
(57)
  1. Step 3.

    The index of the point closest to λk is obtained by

$$ index=\operatorname{int}\left({\lambda}_k\cdot N\right), $$
(58)

where int denotes a rounding operation. Finally, the mapped value of λk is given by

$$ {\lambda}_k^{\ast }={\lambda}_{k, index}^{\ast }. $$
(59)

In fact, λk, index is a first-order approximation to λk, and in the smooth region it can be written as

$$ {\lambda}_{k, index}={\lambda}_k+\mathrm{O}\left(\varDelta x\right)=\overline{\lambda}+\mathrm{O}\left(\varDelta x\right). $$
(60)

Also, Taylor series expansion of g(λk, index) at \( \overline{\lambda} \) gives

$$ {\lambda}_{k, index}=\overline{\lambda}+\mathrm{O}\left(\varDelta {x}^3\right). $$
(61)

Equations (61) and (42) indicate that the pre-discrete mapping method can do the same mapping as the original method.

In the pre-discrete mapping method, the calculation of mapping function, which is the most time-consuming in mapping process, is only done once in step 1 before the iteration. Instead of calculating the function directly, the mapped value is obtained by one multiplication, one rounding operation and one addressing operation, which leads to lower computational cost. Moreover, this low cost is independent of the specific form of mapping function, and thus all kinds of functions can be used at the same cost, which frees the function design from the limit of computational cost.

Numerical results

In this section, several one- and two-dimensional Euler problems are conducted to validate the performance of WENO5-ZM. The Roe scheme [31] is used to solve a local Riemann problem at cell boundary. An explicit third-order TVD Runge-Kutta method, defined as Eq.(27), is used to solve the resulting set of ordinary differential equations in time. Referring to [14], the parameter ε is set to be as small as 10−20, and the power parameter p is taken as 2 in all schemes. All numerical experiments are computed with double precision (64 bits). In the pre-discrete mapping method, N is taken as 104 for all cases.

One-dimensional Euler equations

The strong conservative form of one-dimensional Euler equations of gas dynamics is

$$ {\displaystyle \begin{array}{l}\frac{\partial \rho }{\partial t}+\frac{\partial \left(\rho u\right)}{\partial x}=0,\\ {}\frac{\partial \left(\rho u\right)}{\partial t}+\frac{\partial \left(\rho {u}^2+p\right)}{\partial x}=0,\\ {}\frac{\partial E}{\partial t}+\frac{\partial \left( uE+ up\right)}{\partial x}=0,\end{array}} $$
(62)

where ρ, u, p, E represent the density, velocity, pressure and total energy, respectively. The equation of state,

$$ E=\frac{p}{\gamma -1}+\frac{1}{2}\rho {u}^2, $$
(63)

is supplemented to close the system of equations. γ is the specific heat ratio and taken as 1.4 if not specified.

The Riemann problem of Sod

Sod problem [32] is used to demonstrate the ability of shock-capturing. The initial condition on domain [−0.5, 0.5] is

$$ \left(\rho, u,p\right)=\left\{\begin{array}{l}\left(1,0,1\right),\kern3.25em -0.5\le x\le 0,\\ {}\left(0.125,0,0.1\right),\kern0.75em 0<x\le 0.5.\end{array}\right. $$
(64)

Zero-gradient boundary conditions are imposed at x =  ± 0.5, and the numerical solutions are shown in Fig. 16. The solution consists of a left-going rarefaction wave, a central contact discontinuity and a right-going shock wave. All results are non-oscillatory, and due to less dissipation, WENO5-ZM shows better resolution near discontinuities than WENO5-Z, clearly observed in the zoomed-in solutions.

Fig. 16
figure16

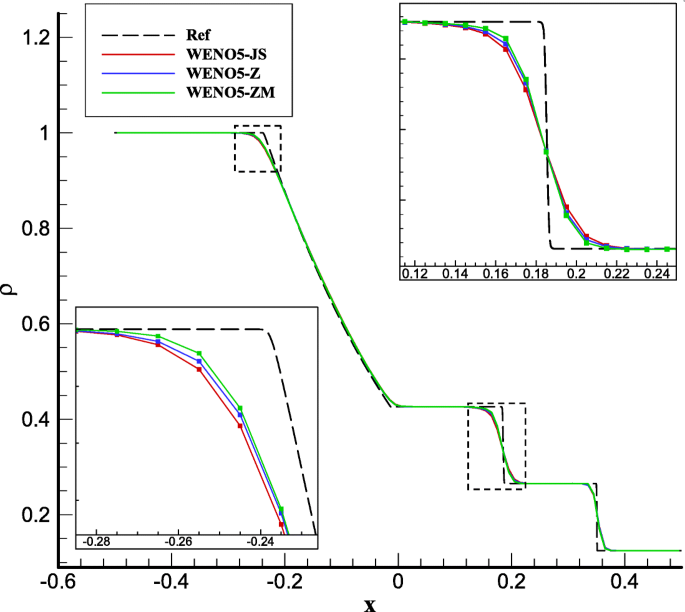

Numerical solutions of Sod problem at t = 0.2. A uniform grid with 100 cells is used. The reference result is obtained by WENO5-JS on a uniform grid with 2000 cells. CFL = 0.9

Mach 3 shock-density wave interaction

The initial condition is a Mach 3 shock interacting with a perturbed density field, and given as

$$ \left(\rho, u,p\right)=\left\{\begin{array}{l}\left(\frac{27}{7},\frac{4\sqrt{35}}{9},\frac{31}{3}\right),\kern1.25em -5\le x<-4,\\ {}\left(1+0.2\sin 5x,0,1\right),\kern1em -4\le x\le 5.\end{array}\right. $$
(65)

At x =  ± 5, the zero-gradient boundary conditions are applied, and the numerical solutions are shown in Fig. 17. It is observed that in regions with discontinuities and high-frequency wave, WENO5-ZM shows the best resolution. While due to the excessive dissipation, the high-frequency wave is nearly smoothed out in the result of WENO5-JS.

Fig. 17
figure17

Numerical solutions of Mach 3 shock-density wave interaction at t = 1.8. A uniform grid with 200 cells is used. The reference result is obtained by WENO5-JS on a uniform grid with 2000 cells. CFL = 0.9

Interacting blast waves

The test consists of two interacting blast waves. The strong shocks in the solution are computationally hard to solve, and schemes with unstable tendencies often fail to converge in this test. The initial condition on domain [0, 1] is

$$ \left(\rho, u,p\right)=\left\{\begin{array}{l}\left(1,0,1000\right),\kern0.75em x<0.1,\\ {}\left(1,0,100\right),\kern1.25em x>0.9,\\ {}\left(1,0,0.01\right),\kern1em \mathrm{else}.\end{array}\right. $$
(66)

Reflective boundary conditions are used at x = 0 and x = 1, and the numerical solutions are shown in Fig. 18. Obviously shown in the zoomed-in solutions, the result of WENO5-ZM shows the best resolution near discontinuities without any oscillation.

Fig. 18
figure18

Numerical solutions of interacting blast waves at t = 0.038. A uniform grid with 400 cells is used. The reference result is obtained by WENO5-JS on a uniform grid with 4000 cells. CFL = 0.9

Two-dimensional Euler equations

For two-dimensional problem, the strong conservative form of Euler equations is

$$ {\displaystyle \begin{array}{l}\frac{\partial \rho }{\partial t}+\frac{\partial \left(\rho u\right)}{\partial x}+\frac{\partial \left(\rho v\right)}{\partial y}=0,\\ {}\frac{\partial \left(\rho u\right)}{\partial t}+\frac{\partial \left(\rho {u}^2+p\right)}{\partial x}+\frac{\partial \left(\rho u v\right)}{\partial y}=0,\\ {}\frac{\partial \left(\rho v\right)}{\partial t}+\frac{\partial \left(\rho u v\right)}{\partial x}+\frac{\partial \left(\rho {v}^2+p\right)}{\partial y}=0,\\ {}\frac{\partial E}{\partial t}+\frac{\partial \left( uE+ up\right)}{\partial x}+\frac{\partial \left( vE+ vp\right)}{\partial y}=0,\end{array}} $$
(67)

where y, v represent the other direction and the velocity component in this direction, respectively. The two-dimensional equation of state is

$$ E=\frac{p}{\gamma -1}+\frac{1}{2}\rho \left({u}^2+{v}^2\right). $$
(68)

Rayleigh-Taylor instability problem

The Rayleigh-Taylor instability (RTI) occurs at the interface between two fluids with different density when the heavier fluid accelerates to the lighter fluid. The computational domain is [0, 0.25] × [0, 1], and the initial condition is

$$ \left\{\begin{array}{l}\rho =2,u=0,v=-0.025c\cdot \cos \left(8\pi x\right),p=2y+1,\left(y\le 0.5\right),\\ {}\rho =1,u=0,v=-0.025c\cdot \cos \left(8\pi x\right),p=y+1.5,\left(y>0.5\right),\end{array}\right. $$
(69)

where \( c=\sqrt{\gamma P/\rho } \), is the speed of sound. The interface of two fluids with different density is at y = 0.5. The specific heat ratio in Eq.(68) is specified as γ = 5/3 in this case. At x = 0 and x = 0.25, reflective boundary conditions are used. ρ = 2, u = v = 0, p = 1 are set for y = 0, while ρ = 1, u = v = 0, p = 2.5 are set for y = 1. To exert the effect of gravity, the source terms ρ, ρv are explicitly added to the right hand side of third and fourth equations of Eq.(67).

As is shown in Fig. 19, all schemes can obtain symmetric results. Due to the Kelvin-Helmholtz instability, vortices are rolled up around the interface indicated by clustered contour lines. The least dissipation of WENO5-ZM leads to a result with the most details of vortices, while small-scale vortices are nearly smoothed out in the result of WENO5-JS due to its over-dissipation.

Fig. 19
figure19

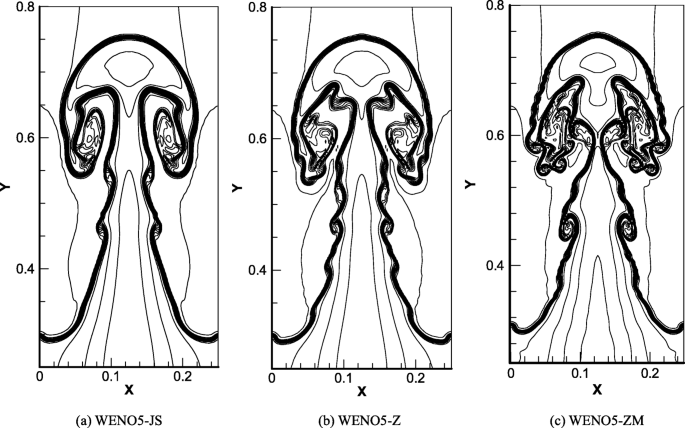

Contour lines of density of the RTI problem at t = 1.95. This figure is drawn with 15 density contours between 0.9 and 2.3. A uniform grid with 120 × 480 cells is used, \( \Delta x=\Delta y=\frac{1}{480} \). CFL = 0.5

Double Mach reflection problem

Double Mach reflection (DMR) describes a Mach 10 moving shock with an angle of 60 with respect to the wall. The computational domain is [0, 4] × [0, 1], and the initial condition is

$$ \left(\rho, u,v,P\right)=\left\{\begin{array}{l}\left(8,8.25\cos \theta, -8.25\sin \theta, 116.5\right),\kern0.5em x<{x}_0+y/\sqrt{3},\\ {}\left(1.4,0,0,1\right),\kern9em x\ge {x}_0+y/\sqrt{3},\end{array}\right. $$
(70)

where x0 = 1/6 is the leading position of the wall, and θ = π/6 is the angle between initial oblique shock and y-axis. Supersonic inflow and outflow boundary conditions are used at x = 0 and x = 4 respectively. At the lower boundary y = 0, post-shock values are used at (0, x0), while a reflective boundary condition is used at (x0, 4). As for the upper boundary y = 1, the exact solution of the Mach 10 moving oblique shock is applied.

It is observed from Fig. 20 that all schemes can give results without any oscillation, and the main difference is reflected near the slip line. Vortices rolled up around the slip line can be observed in the result of WENO5-Z, while in the result of WENO5-ZM, they are more obvious, indicating the improvement of the latter.

Fig. 20
figure20

Zoomed-in contour lines of density of the DMR problem at t = 0.2. This figure is drawn with 28 density contours between 1.5 and 15.5. A uniform grid with 960 × 240 cells is used, \( \Delta x=\Delta y=\frac{1}{240} \). CFL = 0.5

2D Riemann problem

The 2D Riemann problem [33] is defined on a square domain [0, 1] × [0, 1], which is divided into four rectangular sub-domains with lines x = 0.8 and y = 0.8, and the initial condition is

$$ \left(\rho, u,v,p\right)=\left\{\begin{array}{l}\left(1.5,0,0,1.5\right),\kern6.5em 0.8\le x\le 1,\kern0.5em 0.8\le y<1,\\ {}\left(0.5323,1.206,0,0.3\right),\kern3.25em 0\le x<0.8,0.8\le y<1,\\ {}\left(0.138,1.206,1.206,0.029\right),\kern1em 0\le x<0.8,0\le y<0.8,\\ {}\left(0.5323,0,1.206,0.3\right),\kern3.25em 0.8\le x\le 1,0\le y<0.8.\end{array}\right. $$
(71)

Figure 21 shows the density contour obtained with WENO5-JS, WENO5-Z and WENO5-ZM. It is generally thought that capturing more small-scale structures indicates better resolution in this problem. Therefore, from the comparison of the three results, WENO5-ZM obviously has the best resolution.

Fig. 21
figure21

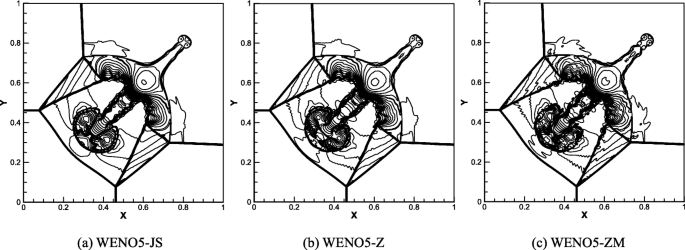

Contour lines of density of 2D Riemann problem at t = 0.8. This figure is drawn with 34 density contours between 0.15 and 1.75. A uniform grid with 400 × 400 cells is used, \( \Delta x=\Delta y=\frac{1}{400} \). CFL = 0.5

Isentropic vortex propagation problem

The initial condition on a square domain [0, 10] × [0, 10] is given by

$$ {\displaystyle \begin{array}{l}\left(u,v\right)=\left(1,1\right)+\frac{\kappa }{2\pi }{e}^{0.5\left(1-{r}^2\right)}\left(-\left(y-{y}_c\right),x-{x}_c\right),T=1-\frac{\left(\gamma -1\right){\kappa}^2}{8{\gamma \pi}^2}{e}^{1-{r}^2},\\ {}\rho ={T}^{\frac{1}{\gamma -1}},p=\rho T,{r}^2={\left(x-{x}_c\right)}^2+{\left(y-{y}_c\right)}^2,\end{array}} $$

where κ = 5 is the vortex strength, and (xc, yc) = (5, 5) is the initial location of the vortex center. Periodic boundary conditions are used for all boundaries. Referring to [34], this test is tested under 10 periods and 100 periods with t = 100 and t = 1000, respectively. After 10 periods propagation with t = 100, it is shown in Fig. 23 (a) that the three results are very close to each other and in good agreement with the reference result. However, as is shown with the contours in Fig. 22, the difference becomes evident after 100 periods propagation with t = 1000. A quantitative comparison is given in Fig. 23 (b). It is observed that WENO5-JS and WENO5-ZM still keep the vortex at the center of the computational domain, while in the result of WENO5-Z, the vortex travels a little faster and thus is off center. Moreover, the result of WENO5-ZM is the closest to that of the optimal linear scheme but with slightly more dissipation.

Fig. 22
figure22

The density contours of isentropic vortex propagation at t = 1000. This figure is drawn with 9 density contours between 0.55 and 0.95. A uniform grid with 80 × 80 cells is used, \( \Delta x=\Delta y=\frac{1}{8} \). CFL = 0.5

Fig. 23
figure23

Distribution for isentropic vortex propagation along y = yc at t = 100 and t = 1000

The computational cost

Due to involving an extra mapping process, the computational cost of WENO5-ZM must be higher than that of WENO5-Z. If the improvement of WENO5-ZM comes at the cost of significantly increased computational time, then the attractiveness of the improved scheme will be greatly reduced. In order to give an intuitive comparison, the computational cost is numerically investigated here.

Take the DMR problem in Section 5.2.2 as the object to test, and to eliminate occasionality, the experiment is repeated three times under the same conditions. The computation is performed with double precision on a 2.40GHz Intel Xeon CPU E5–2676, and the code is developed in Fortran. In average, the computational cost of WENO5-ZM is about 6% higher than that of WENO5-Z. Compared to 20% ~ 30% extra cost of WENO5-M reported in [10], such a low extra cost indicates the efficiency of WENO5-ZM.

Conclusions

In the original mapping method proposed by Henrick, the weight of each sub-stencil is used to map for recovering the accuracy at critical points. The numerical experiment of linear advection equation in this article shows that, the result around a discontinuity is improved but in an asymmetric fashion. With longer output time, this asymmetric improvement results in a solution with evident distortion. From a qualitative analysis, it is found that there is mismatched magnification of weight of less-smooth sub-stencil for both sides of a discontinuity, due to the difference in ideal weights of sub-stencils. To overcome the problem of asymmetric improvement, a symmetry-preserving mapping method is proposed in this article. Instead of the weight, a new variable related to the smoothness indicator is chosen as the mapping object, which has the same ideal value for each sub-stencil. Moreover, since the function is unique and the ideal value is not close to 0, function design is much simplified in the new mapping method. In the long-time simulation of linear advection equation, it is found that the numerical solution of WENO5-Z suffers evident distortion, which seriously degrades the quality of solution. When applying the new mapping method to WENO5-Z, the distortion no longer exists, and thus the result is significantly improved.

Numerical experiments with one- and two-dimensional Euler equations are conducted to validate the performance of mapped WENO5-Z. In all problems, the results of mapped WENO5-Z show better resolution at both discontinuities and small-scale structures compared to WENO5-Z, and there is no oscillation observed in these results. The extra computational cost, brought by the mapping process, is moderate with a value of 6%, which is numerically investigated by the DMR problem.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

References

  1. 1.

    Harten A (1989) ENO schemes with subcell resolution. J Comput Phys 83:148–184

    MathSciNet  Article  Google Scholar

  2. 2.

    Harten A, Engquist B, Osher S, Chakravarthy SR (1987) Uniformly high order accurate essentially non-oscillatory schemes III. J Comput Phys 71:231–303

    MathSciNet  Article  Google Scholar

  3. 3.

    Harten A, Osher S, Engquist B, Chakravarthy SR (1986) Some results on uniformly high-order accurate essentially nonoscillatory schemes. Appl Numer Math 2:347–377

  4. 4.

    Liu XD, Osher S, Chan T (1994) Weighted essentially non-oscillatory schemes. J Comput Phys 115:200–212

    MathSciNet  Article  Google Scholar

  5. 5.

    Jiang GS, Shu CW (1996) Efficient implementation of weighted ENO schemes. J Comput Phys 126:202–228

  6. 6.

    Henrick AK, Aslam TD, Powers JM (2005) Mapped weighted essentially non-oscillatory schemes: achieving optimal order near critical points. J Comput Phys 207:542–567

    Article  Google Scholar

  7. 7.

    Feng H, Hu F, Wang R (2012) A new mapped weighted essentially non-oscillatory scheme. J Sci Comput 51:449–473

    MathSciNet  Article  Google Scholar

  8. 8.

    Feng H, Huang C, Wang R (2014) An improved mapped weighted essentially non-oscillatory scheme. Appl Math Comput 232:453–468

    MathSciNet  MATH  Google Scholar

  9. 9.

    Borges R, Carmona M, Costa B, Don WS (2008) An improved weighted essentially non-oscillatory scheme for hyperbolic conservation laws. J Comput Phys 227:3191–3211

    MathSciNet  Article  Google Scholar

  10. 10.

    Castro M, Costa B, Don WS (2011) High order weighted essentially non-oscillatory WENO-Z schemes for hyperbolic conservation laws. J Comput Phys 230:1766–1792

    MathSciNet  Article  Google Scholar

  11. 11.

    Fedkiw R, Merriman B, Osher S (2000) Simplified discretization of systems of hyperbolic conservation laws containing advection equations. J Comput Phys 157:302–326

    MathSciNet  Article  Google Scholar

  12. 12.

    Osher S, Fedkiw R, Piechor K (2004) Level set methods and dynamic implicit surfaces. Appl Mech Rev 57:B15–B15

    Article  Google Scholar

  13. 13.

    Shen Y, Zha G, Wang B (2009) Improvement of stability and accuracy for weighted essentially nonoscillatory scheme. AIAA J 47:331–344

  14. 14.

    Don WS, Borges R (2013) Accuracy of the weighted essentially non-oscillatory conservative finite difference schemes. J Comput Phys 250:347–372

    MathSciNet  Article  Google Scholar

  15. 15.

    Wang BS, Li P, Gao Z, Don WS (2018) An improved fifth order alternative WENO-Z finite difference scheme for hyperbolic conservation laws. J Comput Phys 374:469–477

  16. 16.

    Acker F, Borges R, Costa B (2016) An improved WENO-Z scheme. J Comput Phys 313:726–753

    MathSciNet  Article  Google Scholar

  17. 17.

    Pirozzoli S (2002) Conservative hybrid compact-WENO schemes for shock-turbulence interaction. J Comput Phys 178:81–117

    MathSciNet  Article  Google Scholar

  18. 18.

    Ren YX, Liu M, Zhang H (2003) A characteristic-wise hybrid compact-WENO scheme for solving hyperbolic conservation laws. J Comput Phys 192:365–386

    MathSciNet  Article  Google Scholar

  19. 19.

    Sun ZS, Ren YX, Larricq C, Zhang SY, Yang YC (2011) A class of finite difference schemes with low dispersion and controllable dissipation for DNS of compressible turbulence. J Comput Phys 230:4616–4635

    MathSciNet  Article  Google Scholar

  20. 20.

    Sun ZS, Luo L, Ren YX, Zhang SY (2014) A sixth order hybrid finite difference scheme based on the minimized dispersion and controllable dissipation technique. J Comput Phys 270:238–254

    MathSciNet  Article  Google Scholar

  21. 21.

    Martin MP, Taylor EM, Wu M, Weirs VG (2006) A bandwidth-optimized WENO scheme for the effective direct numerical simulation of compressible turbulence. J Comput Phys 220:270–289

    Article  Google Scholar

  22. 22.

    Hu XY, Wang Q, Adams NA (2010) An adaptive central-upwind weighted essentially non-oscillatory scheme. J Comput Phys 229:8952–8965

    MathSciNet  Article  Google Scholar

  23. 23.

    Fan P, Shen Y, Tian B, Yang C (2014) A new smoothness indicator for improving the weighted essentially non-oscillatory scheme. J Comput Phys 269:329–354

    MathSciNet  Article  Google Scholar

  24. 24.

    Fan P (2014) High order weighted essentially nonoscillatory WENO- η schemes for hyperbolic conservation laws. J Comput Phys 269:355–385

    MathSciNet  Article  Google Scholar

  25. 25.

    Don WS, Li P, Wong KY, Gao Z (2018) Improved symmetry property of high order weighted essentially non-oscillatory finite difference schemes for hyperbolic conservation laws. Adv Appl Math Mech 10:1418-1439

  26. 26.

    Fu L, Hu XY, Adams NA (2016) A family of high-order targeted ENO scheme for compressible-fluid simulations. J Comput Phys 305:333–359

    MathSciNet  Article  Google Scholar

  27. 27.

    Fu L (2019) A very-high-order TENO scheme for all-speed gas dynamics and turbulence. Comput Phys Commun 244:117–131

    MathSciNet  Article  Google Scholar

  28. 28.

    Fu L (2019) A low-dissipation finite-volume method based on a new TENO shock-capturing scheme. Comput Phys Commun 235:25–39

    MathSciNet  Article  Google Scholar

  29. 29.

    Pirozzoli S (2006) On the spectral properties of shock-capturing schemes. J Comput Phys 219:489–497

    Article  Google Scholar

  30. 30.

    Hong Z, Ye Z, Meng X (2020) A mapping-function-free WENO-M scheme with low computational cost. J Comput Phys 405:109145

    MathSciNet  Article  Google Scholar

  31. 31.

    Roe PL (1981) Approximate Riemann solvers, parameter vectors, and difference schemes. J Comput Phys 43:357–372

    MathSciNet  Article  Google Scholar

  32. 32.

    Sod GA (1978) A survey of several finite difference methods for systems of nonlinear hyperbolic conservation laws. J Comput Phys 27:1–31

    MathSciNet  Article  Google Scholar

  33. 33.

    Schulz-Rinne CW, Collins JP, Glaz HM (1993) Numerical solution of the Riemann problem for two dimensional gas dynamics. SIAM J Sci Comput 14:1394–1414

    MathSciNet  Article  Google Scholar

  34. 34.

    Ji X, Zhao F, Shyy W, Xu K (2018) A family of high-order gas-kinetic schemes and its comparison with Riemann solver based high-order methods. J Comput Phys 356:150–173

    MathSciNet  Article  Google Scholar

Download references

Acknowledgements

The authors would like to acknowledge the funding support of this research by National Natural Science Foundation of China (No. 11732013), National Numerical Windtunnel (No. NNW2019ZT3-A15) and Foundation of National Key Laboratory (No. JCKYS6142201190304).

Funding

The present study is supported by National Natural Science Foundation of China (No. 11732013), National Numerical Windtunnel (No. NNW2019ZT3-A15) and Foundation of National Key Laboratory (No. JCKYS6142201190304).

Author information

Affiliations

Authors

Contributions

ZH was responsible for the formulation of the problem, the analyses of numerical results, and the writing. ZY directed the whole work. KY carried out the numerical computation. The author(s) read and approved the final manuscript.

Corresponding author

Correspondence to Zhengyin Ye.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Hong, Z., Ye, Z. & Ye, K. An improved WENO-Z scheme with symmetry-preserving mapping. Adv. Aerodyn. 2, 18 (2020). https://doi.org/10.1186/s42774-020-00043-w

Download citation

Keywords

  • WENO-Z
  • Mapping method
  • Nonlinear weights
  • Hyperbolic conservation laws
