Wall pressure beneath a transitional hypersonic boundary layer over an inclined straight circular cone

Abstract

Properties of wall pressure beneath a transitional hypersonic boundary layer over a 7 half-angle blunt cone at angle of attack 6 are studied by Direct Numerical Simulation. The wall pressure has two distinct frequency peaks. The low-frequency peak with f≈10−50 kHz is very likely the unsteady crossflow mode based on its convection direction, i.e. along the axial direction and towards the windward symmetry ray. High-frequency peaks are roughly proportional to the local boundary layer thickness. Along the trajectories of stationary crossflow vortices, the location of intense high-frequency wall pressure moves from the bottom of trough where the boundary layer is thin to the bottom of shoulder where the boundary layer is thick. By comparing the pressure field with that inside a high-speed transitional swept-wing boundary layer dominated by the z-type secondary crossflow mode, we found that the high-frequency signal originates from the Mack mode and evolves into the secondary crossflow instability.

Introduction

The boundary layers over realistic aircrafts are usually three-dimensional, i.e., there is crossflow perpendicular to the streamwise direction. The instability mechanism is accordingly much more complicated than that in extensively studied two-dimensional boundary layers (e.g. [13]), especially in hypersonic conditions. Therefore, in the last decades, considerable efforts have been made towards building a fundamental understanding to the transition of hypersonic three-dimensional boundary layers by wind tunnel experiments [49], theoretical analyses [1013], direct numerical simulations (Chen et al.: Transition of hypersonic boundary layer over a yawed blunt cone, submitted) (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted) and flight tests (see overview [14]). Nevertheless, much is still unknown.

Due to its simple configuration with practical significance, an inclined (i.e., non-zero angle of attack) straight circular cone has become a canonical model to study the transition of hypersonic boundary layer with crossflow. Stability analyses have found that, at the side of the hypersonic inclined straight circular cone, the Mack mode [15] and the secondary instabilities of crossflow vortices [16] are the two principal high-frequency instability groups [10, 12]. However, not all the unstable modes identified by the stability analyses will present or appear with equal importance during the natural transition process. A typical example is the breakdown of crossflow vortices. In both the low- and high-speed flows with crossflow, it has been found that the z-type (produced by the spanwise or azimuthal gradients of the streamwise mean flow) secondary crossflow instability is responsible for the natural transition process [17] (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted), although stability analyses [13, 17] also detected the y-type (produced by the wall-normal gradient of the streamwise mean flow) secondary crossflow instabilities.

In experiments, there is still controversy about the transition routine in the hypersonic boundary layers over inclined straight circular cones. The key point of issue is whether the transition is triggered by the Mack mode or by the z-type secondary crossflow mode. Based on the wall pressure, [4] claimed that the Mack mode was responsible for the transition. In contrast, [5, 7, 8] preferred that the transition was triggered by the z-type secondary crossflow instability, which is in agreement with [6], who for the first time obtained the mean and fluctuations of velocity fields inside the boundary layer by employing hot-wire probes instead of only measuring wall pressure signals. However, the frequency response in [6] only reaches to 180 kHz. It is possible that not all the instabilities had been detected. Meanwhile, however, [8] also speculated that the transition could be attributed to the crossflow modulated Mack mode.

The reason for the above controversy can be largely attributed to the limited information that the surface pressure sensors could afford. Surface pressure sensors have been widely used in wind tunnel experiments and flight tests. The propagation direction, wave length, convection velocity and temporal spectra of instability modes reflected by the wall pressure, for instance, can be measured by these sensors. But usually, wall pressure at very limited positions can be obtained by those sensors instead of the whole pressure field in numerical simulations (e.g. [1821]). For flow with potential instabilities associated with separate frequency bands, the frequency alone can sometimes be sufficient to detect the principal instability responsible for the transition. However, in the hypersonic three-dimensional boundary layer with crossflow, frequencies of the most amplified Mack mode and the z-type secondary crossflow mode are in the same range [10]. Then it is not trivial to differentiate the Mack mode and the z-type secondary crossflow mode only by frequency [8, 10].

The best way to distinguish the secondary crossflow instability modes and the Mack mode is by measuring their eigenfunctions within the boundary layer as [10, 12], which is, however, impossible by surface pressure sensors. The Mack mode has a unique characteristic, i.e. its mode shapes of velocity and temperature have two peaks in the wall-normal direction. Li et al. [10] differentiates the two modes by the pressure distribution inside the boundary layer. Specifically, the Mack mode has two pressure extremes, with a stronger one beneath the trough and a weaker one at the shoulder of stationary crossflow vortices. While the z-type secondary crossflow instability only has one pressure extreme at the shoulder of the crossflow vortices. However, recently (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted) found that the vortical structure of the z-type secondary crossflow instability in a high-speed swept-wing boundary layer reaches further to the wall, which should be reflected by the wall pressure. We will see later that such speculation is proved to be correct.

Understanding the transition mechanism is the prerequisite for control strategy, which depends on the transition routine. For the Mack mode, ultrasonically absorptive coatings or wavy wall are usually used (see overview [22]). For the crossflow modes, plasma actuators [23], localized suction [24] and discrete-roughness-elements [25] are possible options. Consequently, the transition routine in experiments needs to be further confirmed preferably with more information inside the boundary layer. For this purpose, we intend to find what else is required except the wall pressure signals, because the direct numerical simulation is able to offer all the information compared with wind tunnel experiments or flight tests. The present paper studied the wall pressure in a highly-resolved direct numerical simulation of the transition process in a hypersonic boundary layer over a 7 half-angle straight circular cone at an angle of attack (AoA) 6. Properties of pressure around the transition front and also along the trajectories of stationary crossflow vortices are compared with those during the natural breakdown of stationary crossflow vortices in a high-speed swept-wing boundary layer in the absence of the Mack mode (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted). Hopefully, our results may shed some light on the understanding of measured signals by surface pressure sensors in experiments.

The present work is a companion to [26] (Chen et al.: Transition of hypersonic boundary layer over a yawed blunt cone, submitted), in which the results of stability analyses and the evolution of vortical structures have been presented. To the best knowledge of the authors, the direct numerical simulation in the present paper and [26] (Chen et al.: Transition of hypersonic boundary layer over a yawed blunt cone, submitted) is the largest one for the transition process in hypersonic boundary layer over an inclined straight circular cone.

Numerical simulation

As shown in Fig. 1, we are considering flow around a straight circular cone at AoA 6 with half-angle 7, nose radium 1 mm and length 700 mm. The free stream conditions are from a wind tunnel experiment with Mach number M=6, unit Reynolds number 107/m and temperature T=79 K. The wall temperature is 300 K. The freestream condition is the same as that in [27], where a blunt cone with similar configuration is placed at AoA= 1. The 6 AoA is achieved by inclining the freestream velocity vector. Two coordinate systems are introduced, namely the Cartesian coordinate system (x,y,z) with its origin at the circle center of the nose and the local body-fitted orthogonal coordinate system (ξ,η,ζ). Velocity components in the two coordinate systems are respectively (u,v,w) and (un,vn,wn). The total velocity is denoted by \(q=\sqrt {u^{2}+v^{2}+w^{2}}\). Note that the azimuthal angle θ changes from 0 at the leeward symmetry plane to 180 at the windward symmetry plane, which is the opposite to the definition in most of the experiments.

Fig. 1
figure1

The sketch of the simulation, notations and coordinates

The simulation procedure in [27] is adopted in the present paper. First, the laminar baseflow including the nose and the shock wave is obtained with a second-order finite volume method with grid size Nξ×Nη×Nζ=1000×301×181. The wall distance of the first layer grid varies linearly from 4 ×10−3 mm at the nose to 8 ×10−3 mm at the axial outlet. In this step, only half of the model is used considering the symmetry of the flow. Figure 2a and b respectively display the axial slice of nondimensional u and T on the leeward side of the base flow. Due to the pressure gradient, the flow accumulates toward the leeward symmetry plane where mushroom vortex is formed.

Fig. 2
figure2

Axial slice of nondimensional u and T on the leeward side of undisturbed basic state computed by second order finite volume method

Second, a subdomain without the nose (x≥50 mm) and the shock wave is extracted, with the inlet and farfield interpolated from the previous step. At the inlet, the respective distances of the farfield to the wall is about four and two times of the local boundary layer thickness δ at θ=0 and 180. Subdomain excluding the nose (leading edge) and the shock is also employed by (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted), who studied the break down of stationary crossflow vortices in a high-speed swept-wing boundary layer. In this step, the whole azimuthal domain is computed since the symmetry is not satisfied for instantaneous flow fields. To alleviate the computation cost, a buffer region is used between θ=202.5 and θ=337.5 with coarse grid. A steady and azimuthal random blowing-suction with intensity 0.1% q is introduced between 90 mm<x<100 mm. Ideally, steady blowing-suction can only generate stationary crossflow vortices. But it was only after the simulation finished when we realized that the initial flow field is actually a copy of the inlet (the same as in [27]), which inevitably introduces considerable numerical errors that lead to secondary instabilities of crossflow vortices and the subsequent breakdown process.

Compressible Navier-Stokes equations in conservative formulation are discretized in the curvature mesh and solved using a widely used parallel software OPENCFD developed by [28]. This code has been validated [27, 28] and used widely in compressible boundary-layer transition and turbulence [2933]. Non-slip condition is applied at the wall. The inviscous and viscous terms are discretized respectively with modified 7th-order WENO scheme [34] and 6th-order central difference. Time is advanced with explicit third-order Runge-Kutta method. In the wall-normal direction, at each azimuthal ray (k=1,2,...,Nζ), exponentially stretched grid points with wall-normal distances satisfying

$$\eta\left(i,j\right)=\frac{\textup{exp}\left(\frac{j-1}{N_{\eta}-1}b\right)-1}{\textup{exp}(b)-1}L_{\eta}(i,k), \ i=1,2,...,N_{\xi} \ \textup{and} \ j=1,2,...,N_{\eta} $$

are applied to capture strong derivatives near the wall, where Lη(i,k) is the local wall-normal distance of the farfield to the wall. The factor b is determined by prescribing the wall distance of the first layer grid η(i,2), i=1,2,...,Nξ (10 −2 mm in the present work). The grid size excluding the buffer region in the axial and azimuthal directions is Nξ×Nη×Nζ=2800×300×1039, yielding grid resolutions in the axial, wall-normal and azimuthal directions are \(\Delta \xi ^{+}\approx 10, \Delta \eta _{w}^{+}\approx 0.4\) and Δζ+≈7−10 downstream of the transition front, where Δηw is measured at the wall. Quantities with superscript ‘+’ are in the wall units based on the wall-friction velocity \(u_{\tau }=\sqrt {\tau _{w}/\rho _{w}}\) and kinematic viscosity νw=μw/ρw, where \(\tau _{w}=\mu \partial \overline {q}_{n}/\partial \eta |_{\eta =0}\) and \(\overline {q}_{n}\) is the total mean velocity that is tangent to the wall, where \(\overline {\bullet }\) denotes the temporal average.

Results and discussion

Transition front and the temporal spectra of wall pressure

Since most of the details about the transitional flow fields such as instantaneous snapshots in the wall-parallel or azimuthal planes, vortical structures, temporal spectra inside the boundary layer and stability analyses have been studied thoroughly in [26] (Chen et al.: Transition of hypersonic boundary layer over a yawed blunt cone, submitted). We will only give a brief introduction to the transition process before discussing properties of the wall pressure.

Figure 3 gives an overall picture of the transition process by showing the slices of instantaneous u in wall-normal planes at different axial locations. At the side of the cone, the growth and breakdown of crossflow vortices are clearly observed.

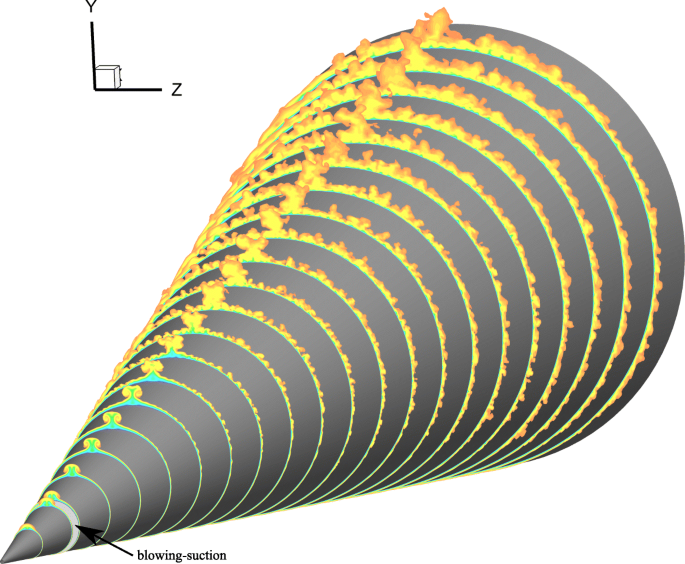

Fig. 3
figure3

Contours of instantaneous u in wall-normal planes at several axial locations

Figure 4 shows the temporal averaged mean wall heat flux

$$ \bar{Q}_{w}=2\frac{\mu_{w}C_{p}}{RePr}\partial_{\eta}T|_{\eta=0} $$

on the unrolled cone surface, where \(C_{p}=\gamma /M_{\infty }^{2}(\gamma -1)\) with γ the specific heat ratio and the Prandtl number Pr=0.7. In Fig. 4, ζ represents the distance with respect to the θ=90 ray in terms of the arc length. The windward and leeward symmetry planes are respectively at the lower and upper limits of ζ. The transition onset locates at x≈300 mm and θ≈52, yielding Rex=3×106, which is close to that in a Mach 8 noisy wind tunnel experiment [7]. Obviously, \(\bar {Q}_{w}\) appears in streaky patterns on the leeward side (θ<90), suggesting that the transition is due to the breakdown of stationary crossflow vortices in that area. The dashed lines represent trajectories of two representative stationary crossflow vortices determined by the local maximum of \(\bar {Q}_{w}\). The trajectories are roughly inclined by 12−13 with respect to the θ=90 ray, which is consistent with both experiments [35] and numerical simulations [10, 36] under similar conditions. The axial evolution of \(\bar {Q}_{w}\) along the two trajectories are given in Fig. 4b, suggesting that the two stationary crossflow vortices grow exponentially between x=260 mm and 320 mm. On the windward side (θ>90), the transition is highly possible caused by unsteady modes.

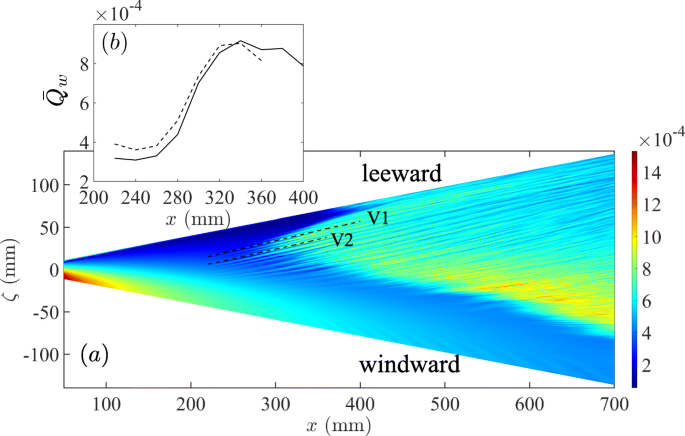

Fig. 4
figure4

a The temporal mean of the wall heat flux \(\bar {Q}_{w}\). Dashed lines represent two trajectories of stationary crossflow vortices V1 and V2 determined by the local maximum of \(\bar {Q}_{w}\). \(\bar {Q}_{w}\) along the two trajectories are given in b with solid and dashed lines respectively for V1 and V2

We will focus on the wall pressure

$$ p_{w}=\frac{\rho_{w}T_{w}}{\gamma M_{\infty}^{2}} $$

hereinafter. pw is sampled with a frequency ≈3.2 MHz, which should be sufficient to capture all the possible instabilities at the side. The duration of the sampling is roughly two times of the go-through period xL/q. Results do not change when using half of the samples.

Figure 5a shows one instantaneous snapshot of fluctuating pw. Upstream of the transition front (where the wall heat flux grows violently in Fig. 4a), especially beyond x=400 mm, there are quasi two-dimensional structures, indicating the origin of the Mack mode, whose presence is justified by quasi two-dimensional vortical structures shown in (Chen et al.: Transition of hypersonic boundary layer over a yawed blunt cone, submitted). Wall pressure of similar pattern was also identified by [27] on the surface of a cone placed at AoA= 1 with the same freestream condition. Figure 5b displays the r.m.s. of the wall pressure. Similar to the wall heat flux in Fig. 4a, (pw)rms is also trapped by stationary crossflow vortices at θ90. We will investigate the properties of pw at several probe points marked in Fig. 5b around the transition front. They are divided into two groups, namely the Group 1 and Group 2 respectively upstream and downstream of the transition front. Their coordinates are tabulated in the Table 1.

Fig. 5
figure5

The instantaneous a and r.m.s. b of the fluctuating wall pressure. The dashed lines in b represent the trajectories of stationary crossflow vortices shown in Fig. 4. The markers are probe points with those upstream and downstream of the transition front labeled as Group 1 and Group 2, respectively

Table 1 The coordinates of probe points in the Group 1 (upstream of the transition front) and Group 2 (downstream of the transition front)

Figure 6 shows the temporal spectra of pw at these probe points. Two obvious peaks can be observed, i.e., a low-frequency one centered around 30 kHz independent of the locations. And a high-frequency one centered at 450-500 kHz for probe points in Group 1 and 350-450 kHz in Group 2. The frequencies at high-frequency peaks roughly follow the estimation \(f=\bar {q}_{e}/2\delta \), which are given by the filled circles in the figure. The high-frequency peaks downstream of the transition front are broader, which is likely due to nonlinear effects. Harmonics of the high-frequency peaks are also clearly seen, indicating the presence of self interactions.

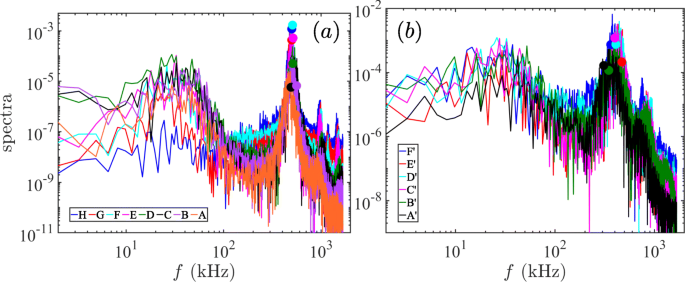

Fig. 6
figure6

The temporal spectra of pw at probe points in the Group 1 a and Group 2 b. Symbols denote the estimation \(f=\bar {q}_{e}/2\delta \)

Based on the above temporal spectra, we further filtered pw by a cut-off filter with frequency bands 10-50 kHz and 300-600 kHz. The instantaneous pw of low and high frequencies are shown in Fig. 7a, c. The low-frequency pw exhibits large-scale streaky structures, roughly following the transition front in Fig. 4a, while the high-frequency pw shows small-scale wavepacket structures. Moreover, the wavepackets reside closer to the windward ray than the streaks, especially at the rear of the cone, where they are almost two-dimensional. The combined low- and high-frequency pw form a pattern that small-scale wavepackets ride on large-scale streaks in the vicinity of the transition front as shown in Fig. 5a. The resulting (pw)rms of low- and high-frequency pw are given in Fig. 7b, d.

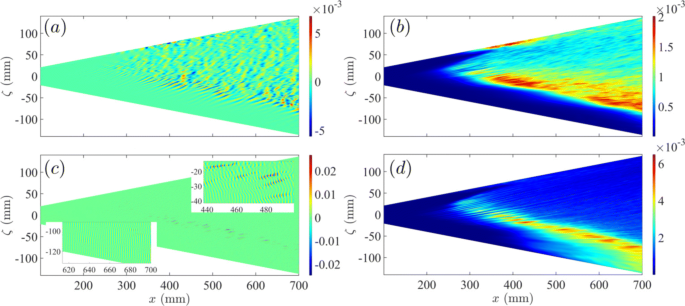

Fig. 7
figure7

The instantaneous a, c and r.m.s. b, d of low- and high-frequency pw. a, b for low-frequency pw with frequency 10-50 kHz and c, d for high-frequency pw with 300-600 kHz. Details of high-frequency pw are given in two regions by the subfigures

Distribution of fluctuating pressure inside stationary crossflow vortices

For a sharp, 7 half-angle cone with 6 AoA in a Mach 6 quiet wind tunnel, [8] found that the high-frequency (175-325 kHz) wall pressure disturbances coincide with the local maximum of the wall heat flux. While the low-frequency wall pressure (100-175 kHz) disturbances lie between heat streaks. They argued that if the high-frequency signal is the crossflow modified Mack mode, then the local maximum of (pw)rms should be under the thin trough of crossflow vortex where the wall heat flux is high, as they had observed. [4] also detected high-frequency signals, which were regarded as the Mack mode, in the position where the boundary layer is thin.

In a similar way to [8], Fig. 8 displays (pw)rms and \(\bar {Q}_{w}\) in the neighbourhood of the trajectories of stationary crossflow vortices V1 and V2. Dashed lines in the figure correspond to the local maximum of \(\bar {Q}_{w}\). There is no particular pattern between (pw)rms of low-frequency pw and \(\bar {Q}_{w}\) (Fig. 8a-b, I). Specifically, around V1, (pw)rms has no preference about the heat flux, while around V2, (pw)rms lies between heat streaks upstream of x≈260 mm, while it coincides with the heat peaks when stationary crossflow vortices are strong. But for high-frequency pw, Fig. 8a-b, II clearly shows that the spatially localized (pw)rms presented in Fig. 7 is concentrated under the peak heating areas up to x≈280 mm, beyond where (pw)rms and \(\bar {Q}_{w}\) deviate.

Fig. 8
figure8

The distribution of the r.m.s. (shaded contour) of the low- (10-50 kHz, I) and high-frequency (300-600 kHz, II) wall pressure and the wall heat flux (dashed lines) in the neighbourhood of stationary crossflow vortex trajectories V1 a and V2 b. Trajectories V1 and V2 are colored in black

Figure 9a shows the amplitude evolution of (pw)rms along the trajectories V1 and V2. The corresponding growth rates

$$ \textup{dln}\left[(p_{w})_{\textup{rms}}\right]/\textup{d}x_{\textup{vortex}} $$

are shown in Fig. 9b. High-frequency pw along V1 experience the most violent growth, while others only grow mildly, especially for the low-frequency pw along V1. This dependence of growth rates on the trajectories of stationary crossflow vortices is probably due to the inhomogeneity in the azimuthal direction. The peaks of (pw)rms arrive at x≈280 mm, where the wall heat flux starts to grow exponentially as indicated by Fig. 4b.

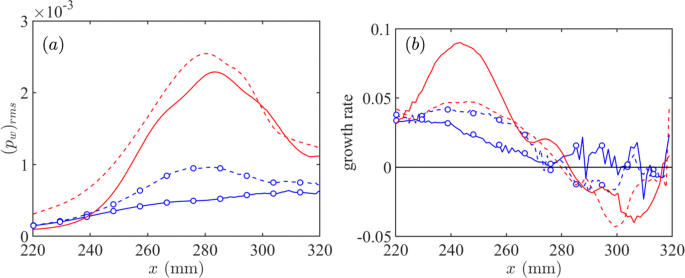

Fig. 9
figure9

Axial evolution of (pw)rms (a) and its growth rate (b) along the stationary crossflow vortex trajectories V1 (solid) and V2 (dashed). Lines with and without symbols are respectively for the low- and high-frequency wall pressure

Since we have all the information inside the boundary layer, Fig. 10 further shows the evolution of prms inside the boundary layer along the vortex trajectory V2 at several axial locations from x=220 mm to 320 mm. prms has its maximum near the wall, distributed locally in the azimuthal direction even when the boundary layer has not been markedly modulated by the stationary crossflow vortex yet (Fig. 10a). But when the rolling up of stationary crossflow vortex becomes prominent, it turns out that intense prms locates roughly beneath the trough of crossflow vortex, where the boundary layer is thin. However, when the stationary crossflow vortex is about to saturate (Fig. 10e-f) as indicated by Fig. 4b, the maximum of near-wall prms shifts to the bottom of the shoulder, where the boundary layer is thicker and the wall heat transfer is accordingly weaker. Meanwhile, another weaker peak of prms emerges at the shoulder. The evolution of prms inside the boundary layer gives a more clear explanation about the relation between (pw)rms and \(\bar {Q}_{w}\).

Fig. 10
figure10

The evolution of prms in the wall-normal plane along the vortex path V2. The dashed lines represent the temporal mean axial velocity. The markers in c, d are probe points. Axial locations are from x=220 mm to 320 mm by an increment of 20 mm

The distribution of prms inside the boundary layer when stationary crossflow vortices are still weak agrees well with that of the extracted Mack mode by stability analysis [10]. It means that the high-frequency signals here are in fact the Mack mode, which is supported by the distribution of the r.m.s. of the axial velocity shown in Fig. 11. The r.m.s. of the axial velocity inside the boundary layer obviously has two peaks, which is the unique feature of the Mack mode.

Fig. 11
figure11

The same as Fig. 10 but for the r.m.s. of axial velocity with frequency between 250 kHz and 550 kHz

Also in a Mach 6 quiet wind tunnel, [5] found that when pressure sensors at the side of an inclined cone are rotated by a small azimuthal angle (±5). The measured peak frequency with f≈400 kHz disappears, whereas a lower frequency peak with f≈150 kHz appears. Edelman and Schneider [8] also found similar phenomenon. They speculated that the frequency jump probably can be ascribed to the relative position between sensors and crossflow vortices. While in a Mach 8 conventional wind tunnel [7], such frequency jump was not observed. Instead, the peak frequency only decreases smoothly as a function of the local boundary layer thickness. The frequency jump observed by [5, 8] is also examined in the present work. Results are shown in Fig. 12, which displays the temporal spectra at different locations inside a stationary crossflow vortex following the trajectory V2 shown in Fig. 10c, d. The two probes at the wall have a difference of azimuthal angle by ≈3.5. Apparently, inside this crossflow vortex, the peak frequency does not vary with the azimuthal angle, neither with the wall-normal distance. But the intensities at the high-frequency peaks vary significantly, which is also indicated in Fig. 7d. The same conclusion holds along the vortex path V1. Our results are consistent with [7], probably because the present transition process also happens in a noisy environment.

Fig. 12
figure12

The temporal spectra measured at the probe points marked in Fig. 10c, d. a x=260 mm and b x=280 mm. Lines are for ×, for , for and for

Based on the results shown in Figs. 8 and 10, probably what [4, 8] observed between (pw)rms and \(\bar {Q}_{w}\) were in the region where crossflow vortices were still weak. The relative position between pressure footprint and stationary crossflow vortices during the whole transition process shown above needs to be further verified by experiments.

Space-time correlation

In this section, we study the space-time correlation coefficient of wall pressure defined by

$$ C_{pp}\left(\Delta_{\xi},\Delta_{\zeta},\Delta_{t}\right)=\frac{\overline{p_{w}\left(\xi',\zeta',t'\right)p_{w}\left(\xi,\zeta,t\right)}}{(p_{w})_{\textup{rms}}\left(\xi',\zeta',t'\right)\left(p_{w}\right)_{\textup{rms}}\left(\xi,\zeta,t\right)}, $$

where Δξ=ξξ and Δζ=ζζ are respectively the spatial separations in the axial and the azimuthal directions and Δt=tt is the time delay. (ξ,ζ) is the position of the reference point marked in Fig. 5b and (ξ,ζ) is the position of moving points. Δζ<0 means the moving point is closer to the windward symmetry plane than the reference point, while the opposite is true for Δζ>0. Cpp(Δξ,Δζ,0) reveals the spatial organization of pw, while Cpp(Δξ,0,Δt) or Cpp(0,Δζ,Δt) tells the temporal propagation in the space. The space-time correlation has been widely used in turbulent boundary layers (e.g. [18, 19]).

We computed Cpp(Δξ,Δζ,Δt) for low- and high-frequency pw separately. The spatial correlation coefficients Cpp(Δξ,Δζ,0) are presented first. The results for low-frequency pw at probe points in Group 1 are shown in Fig. 13. The inclination angle αp of the low-frequency pw streaks or the angle of the wave front against the θ=90 meridian is roughly 22 except near the rear of the cone, where αp≈26. This angle is very close to that of low-frequency wall pressure disturbances detected in a Mach 6 wind tunnel [4]. The length lt of the low-frequency pw streak in its inclined direction is roughly 27–40 mm, taking Cpp(Δξ,Δζ,0)=0.5. The distance ln between low-frequency pw streaks increases from ≈2.1 mm to ≈4.8 mm as a function of the axial positions, measured by the distance between the positive and negative lobes normal to the inclined direction. The low-frequency pw at probe points in Group 2 have similar inclination angles (not shown) as those in Group 1, except for higher noise-to-signal ratio since more small scales are expected to generate downstream of the transition front. The length lt of low-frequency pw streak is in the range ≈21−32 mm and the distance between low-frequency pw streaks ln increases from ≈2.7 mm to ≈4.2 mm as a function of the axial positions.

Fig. 13
figure13

Cpp(Δξ,Δζ,0) for low-frequency wall pressure at probe points in Group 1. Contour levels are [-1:0.1:-0.2 0.2:0.1:1]. The dashed lines have slopes arctan(Δζ/Δξ)=20 in a, 22.5 in b, d, 21.5 in c, 24.5 in e and 26 in f, g

On the other hand, the spatial organization of high-frequency pw displayed in Figs. 14 and 15, is totally different from that of low-frequency pw, as we have already noticed in the instantaneous snapshots shown in Fig. 7. High-frequency pw appears as wavepackets, with the wavelength measured by the distance between the consecutive positive lobes roughly double of the local boundary layer thickness, as tabulated in the Table 2, which is the feature of the Mack mode [37]. At those positions closer to the windward symmetry plane (Fig. 14f-g), the wavepackets tend to be nearly two-dimensional, with the azimuthal length roughly five times of the wavelength. The size of the wavepackets shrinks significantly in both the axial and azimuthal directions downstream of the transition front. For instance, the axial length of the wavepacket is roughly 20 mm at probe points in Group 1, and it decreases to 10 mm in Group 2. The inclination angles αp of the high-frequency wavepackets with respect to the θ=90 ray are represented by the dashed lines. αp are listed in the Table 3 and compared to those of flow at the edge of boundary layer

$$ \alpha_{e}=\textup{atan}\left(\bar{w}_{n}/\bar{u}_{n}|_{\eta=\delta}\right), $$

and to those of near-wall flow at the first layer of the grid

$$ \alpha_{w}=\textup{atan}\left(\bar{w}_{n}/\bar{u}_{n}|_{\eta=\eta_{w}}\right). $$

αp does not seem to follow either αw or αe but is roughly in the middle of them. αw is larger than αe, indicating that the streamlines near the wall are more inclined to the leeward ray than those at the boundary edge.

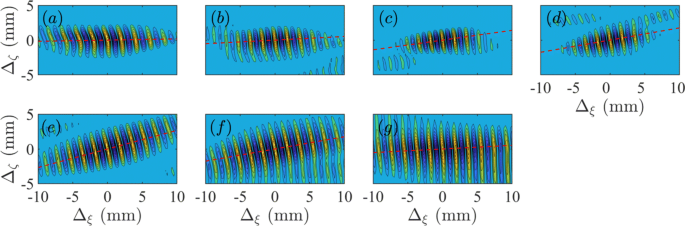

Fig. 14
figure14

Cpp(Δξ,Δζ,0) for high-frequency wall pressure at probe points in Group 1. Contour levels are the same as in Fig. 13. The dashed lines have slopes arctan(Δζ/Δξ)=1 in a, 3 in b, 8 in c, 10 in d, 15 in e, 15 in f and 3 in g

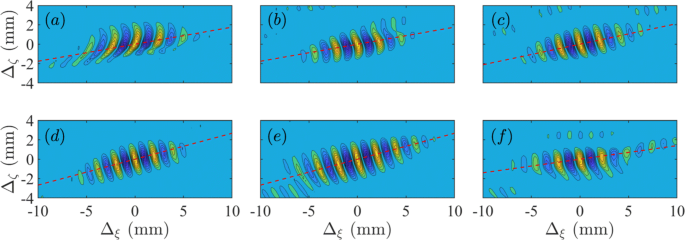

Fig. 15
figure15

Cpp(Δξ,Δζ,0) for high-frequency wall pressure at probe points in Group 2. Contour levels are the same as in Fig. 13. The dashed lines have slopes arctan(Δζ/Δξ)=10 in a, b, 12 in c, 15 in d, e and 8 in f

Table 2 The boundary layer thickness δ and the wavelength λ of high-frequency pw at probe points in Group 1 (upstream of the transition front) and in Group 2 (downstream of the transition front)
Table 3 The inclination angles of the high-frequency pw (αp) and those of the wall parallel velocity components at the edge of the boundary layer (αe) and the first layer of grid (αw)

Next, the temporal propagation is presented. The results for low-frequency pw at probe points in Group 2 are shown in Figs. 16 and 17 respectively for Cpp(0,Δζ,Δt) and Cpp(Δξ,0,Δt). The shape of the contours reflects the convective nature of pressure signals. The convection velocity Uc can be estimated by the ratio Δξ(Δζ)/Δt at a given time delay Δt with the maximum of Cpp obtained at Δξ(Δζ). When Uc is not a function of Δt as in the present case, the convection velocity can be estimated by the slopes of the contour lines, as indicated by the dashed lines. The low-frequency pw is convected from the leeward side to the windward side, with a convection velocities ranging from 0.175 q to 0.25 q. In the axial direction, the convection velocity is about 0.45-0.50 q, yielding a propagation angle roughly between −29 and −19. Similar values can be found for those probe points in the Group 1 thus results are not shown.

Fig. 16
figure16

Cpp(Δξ,0,Δt) for low-frequency wall pressure at probe points in Group 2. Contour levels are [0.5:0.1:1] for solid and [-1:0.1:-0.5] for dashed. The slopes of the dashed lines are 0.45 q in a, 0.5 q in b, 0.425 q in c, 0.43 q in d, 0.46 q in e and 0.45 q in f

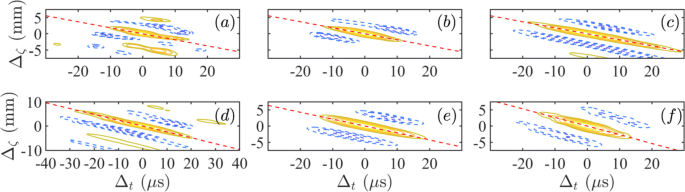

Fig. 17
figure17

Cpp(0,Δζ,Δt) for low-frequency wall pressure at probe points in Group 2. Contour levels are the same as in Fig. 16. The slopes of the dashed lines are -0.175 q in a-c, -0.225 q in d, -0.2 q in e and -0.25 q in f

In summary, the low-frequency pw travels downstream and toward the windward symmetry plane, which is in the expected direction for travelling crossflow modes. Muñoz et al. [4] believed that the low-frequency signal measured in experiments travelling in the same manner maybe either the first-mode instability mode or the travelling crossflow mode. Whereas [7] preferred that they are actually the noise in the wind tunnel. However, in quiet wind tunnels, [5, 6, 8] believed that they are the travelling crossflow modes.

High-frequency pw are convected in the axial direction much faster than the low-frequency ones, with a convection velocity Uc≈0.85q (\(\approx 0.85\bar {q}_{e}\)), independent of the position as shown by Cpp(Δξ,0,Δt) in Fig. 18 for those probe points in the Group 2. While in the azimuthal direction, Cpp(0,Δζ,Δt) is almost vertical, yielding a convection velocity up to 10 q at the probe point F and around 4 q at other points (not shown). Such a high velocity is probably only mathematical and non-physical. Because with such a velocity, the time for travelling one millimeter is less than 0.25/q, which is already smaller than our sampling time interval 0.32/q. We prefer that the results only reflect the azimuthal coherence of pw when convected as a wavepackets along the axial direction, instead of the realistic propagation in the azimuthal direction.

Fig. 18
figure18

Cpp(Δξ,0,Δt) for high-frequency wall pressure at probe points in Group 2. Solid and dashed contours for 0.5 and -0.5 respectively. Solid lines represent Δξ/Δt=0.85q

The above results (Figs. 16, 17 and 18) only show Cpp(Δξ,0,Δt) and Cpp(0,Δζ,Δt) for probe points in the Group 2, i.e., downstream of the transition front. The convection velocities for both low- and high-frequency pw in the Group 1 are respectively similar to those in the Group 2. But the average window for computing the correlation coefficient, i.e., the extent of Δξ and Δt is much larger, especially for large-scale low-frequency pw near the rear of the cone.

The footprints of genuine z-type secondary crossflow instability

We have seen in Figs. 8 and 10 that intense prms shifts from the bottom of trough to the bottom of shoulder with the development of stationary crossflow vortices. We believe that the high-frequency signals originate from the Mack mode and evolve into the secondary crossflow mode as they are modulated by the crossflow vortices. In other words, it may suggest that the pressure footprint of genuine z-type secondary crossflow instability is beneath the shoulder of crossflow vortices.

Recently, (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted) investigated the natural transition process in a high-speed swept-wing boundary layer. The transition is triggered by the z-type secondary crossflow instability riding on stationary crossflow vortices. In that work, the freestream Mach number is 6, but the Mach number at the boundary edge is less than four. No unstable Mack modes were identified by stability analysis. Therefore, the properties of pressure in (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted) probably could be representative for the genuine z-type secondary crossflow instability in the hypersonic condition. Readers are referred to (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted) for more details about the setup of numerical simulation and how the z-type secondary crossflow instability is excited.

First, we show the distribution of prms in wall-normal planes at three axial locations with x=200 mm, 230 mm and 260 mm in Fig. 19. x=230 mm and 260 mm roughly correspond to the saturation point of stationary crossflow vortices and the disturbances excited by the blowing-suction, respectively (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted). It is clear that in the high-speed swept-wing boundary layer, the pressure is distributed separately in two regions: one at the shoulder of crossflow vortex coinciding with the r.m.s. of the vortex-axial oriented velocity and another one just below the shoulder and close to the wall with similar intensity. Although they are spatially separated, the peak frequencies at the two (pw)rms lobes are the same to that of the vortex-axial oriented velocity, indicating that they are of the same thing, or more precisely, they are different parts of the z-type secondary crossflow instability. Obviously, the pressure extreme of the z-type secondary crossflow instability beneath the shoulder contradicts with [10]. The reason for the difference is unclear.

Fig. 19
figure19

The evolution of u2,rms (a, I-III) and prms (b, I-III) in the wall-normal planes at x=200 mm (I), 230 mm (II) and 260 mm (III) during the breakdown of stationary crossflow vortices in a high-speed swept wing boundary layer (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted). The dashed lines represent the temporal mean of the vortex-axial oriented velocity u2

Next, Fig. 20a shows the r.m.s. of the pressure beneath the high-speed swept-wing boundary layer. Since there is only one principal frequency, we did not filter the pressure field. Note that the wall is adiabatic in (Chen et al.: Stationary cross-flow breakdown in a high-speed swept-wing boundary layer, submitted), thus the dashed lines in Fig. 20a represent the local maximum of the skin-friction coefficient Cf instead of the wall heat flux. With the presence of stationary crossflow vortices, the streaky (pw)rms in Figs. 20a and 8 are not intrinsically different. But (pw)rms and Cf are always separated because the former lies beneath the thicker part of boundary layer as shown in Fig. 19.

Fig. 20
figure20

a The r.m.s. of the wall-pressure. Dashed lines represent the local maximum of the mean skin-friction coefficient; b The spatial correlation coefficient Cpp(Δξ,Δz,0) at the probe point in a. Contours lines are [-1:0.1:-0.2 0.2:0.1:1]. The dashed line has a slope by 45; c and d are respectively Cpp(Δξ,0,Δt) and Cpp(Δz,0,Δt). Contours levels are [-1:0.1:-0.5 0.5:0.1:1]. Dashed lines are the best fit for the center of the contour

The spatial correlation coefficient of pw at the probe point (x=260 mm) in Fig. 20a is shown in Fig. 20b. The wave length of pw is about δ, where δ is defined by the wall-normal height where \(\overline {w}(x)\) reaches 0.99w. This is different from high-frequency pw we have seen in Figs. 14 and 15, whose wavelength λ≈2δ. The spanwise direction of the swept-wing boundary layer is periodic, thus both of the axial and spanwise extent of the wavepacket reaches to 40 mm, which is roughly 10 times of the local boundary layer thickness. The wavepacket as a whole is inclined with respect to the axial direction by 45, which is equal to the swept angle. But the high-correlation lobes do not follow the dashed line.

The temporal propagation of the pw beneath the high-speed swept wing boundary layer is shown in Fig. 20c, d. As indicated by the dashed lines, the convection velocity Uc is not constant. The general trend is that pw propagates slower with time, in both streamwise and spanwise directions. Specifically, Uc,ξ roughly varies between 1.0\(\bar {q}_{e}\) to 2.0\(\bar {q}_{e}\) and Uc,z varies roughly between 0.8\(\bar {q}_{e}\) to 0.96\(\bar {q}_{e}\). We are not clear why the high-frequency signals on the cone surface only propagate in the axial direction.

What we observed in Figs. 19 and 20a is different from the evolution of prms along the trajectories of stationary crossflow vortices shown in Figs. 8 and 10e, f. It further verifies that the high-frequency disturbances on the side of the cone have its origin from the Mack mode, which is then modulated by crossflow vortices and turns into the secondary crossflow instability. This probably can be inferred from [10], who found that the modulated Mack mode was more highly amplified than the unmodulated Mack mode. And the Mack mode grows much upstream and achieves higher N-factors than the z-type crossflow secondary instability.

Conclusions

We have conducted a direct numerical simulation of the transition process of a Mach 6 boundary layer over a blunt cone with half-angle 7 placed at AoA 6. The transition is achieved by disturbing the boundary layer with a blowing-suction at the wall. The pressure field around the transition front is investigated and compared with that in a transitional high-speed swept-wing boundary layer without unstable Mack mode. The main conclusion is that the transition is due to the crossflow modulated Mack mode, instead of the genuine secondary crossflow modes. This probably also holds for experiments in quiet tunnels or flight tests.

The wall pressure has two apparent frequency peaks. The low-frequency peak has a frequency f≈10−50 kHz, independent of the axial and azimuthal locations. Disturbances of the low-frequency peaks manifest as large-scale streaks inclined by ≈20−−26 against the θ=90 ray. They propagate downstream and toward the windward symmetry plane, with respective convection velocities 0.45−0.50q and 0.175−0.25q. They are likely the travelling crossflow mode.

The high-frequency peak roughly follows the relationship of \(f\approx \bar {q}_{e}/2\delta \). The high-frequency wall pressure is small-scale and quasi two-dimensional wavepackets with wavelength λ≈2δ, indicating that they are the Mack mode. They are convected in the axial direction by a velocity 0.85q. When stationary crossflow vortices are still weak, intense (pw)rms lies beneath the trough of the stationary crossflow vortices where the wall heat flux (isothermal wall) or the skin friction coefficient is high. With the development of stationary crossflow vortices, the Mack mode is modulated. Meanwhile, the intense (pw)rms shifts to the bottom of the shoulder where the boundary layer is thicker, which is the same to that of the z-type secondary crossflow instability in a high-speed swept-wing boundary layer without the Mack mode.

Finally, to determine the origin of the high-frequency signals measured by the surface pressure sensors, [8] and our results suggest that comparing the locations of the maximum wall heat flux and the maximum (pw)rms could be the simplest way based only on the wall information in experiments.
