Criteria of tracking vortex surfaces in turbulent-like flows

Abstract

We propose criteria of tracking vortex surfaces in complex flows based on the vortex-surface field (VSF). The criteria characterize the accuracy and Lagrangian tracking performance of the numerical VSF solution, and determine the time period when the vortex surface tracking is satisfactory. Moreover, we develop a turbulent-like flow combining large-scale coherent structures in the Taylor–Green flow and small-scale turbulent structures in homogeneous isotropic turbulence (HIT). From tracking of vortex surfaces during the effective tracking period, we find that the imposed HIT disturbance significantly wrinkles vortex surfaces. Subsequently, the wrinkled vortex tube with large vorticity magnitude tends to be further twisted, contributing to energy cascade, while the wrinkling is mitigated in the region with small vorticity magnitude.

Introduction

The vortex-surface field (VSF) is a Lagrangian-based method to identify and characterize coherent vortical structures [1, 2]. The VSF isosurface is a vortex surface consisting of vortex lines. From the extended Helmholtz theorem [3], the VSF isosurfaces of the same threshold at different times can have strong coherence, facilitating the tracking of vortex surfaces.

As a general flow diagnostic tool, the numerical VSF solution is calculated from a given flow field by solving a pseudo-transport equation driven by the frozen, instantaneous vorticity [4, 5]. From an initial VSF, the two-time method [6] is applied to calculate the temporal evolution of VSFs. By post-processing of a time series of numerical solutions, the VSF can elucidate mechanisms in various aerodynamic flows with essential vortex dynamics, such as turbulence [7] and transition [8]. For example, the VSF reveals the continuous rolling-up and twisting of vortex tubes in Taylor–Green (TG) flows [6], and the complex network of tangling vortex tubes in homogeneous isotropic turbulence (HIT) [5], instead of the visual “breakdown” of worm-like structures identified by Eulerian vortex criteria [9, 10].

Although the evolution of vortex surfaces has been reported in relatively simple transitional flows, such as the TG flow [6, 11] and canonical wall-bounded transitional flows [12, 13], the tracking of vortex surfaces in fully developed turbulence, such as HIT, remains an open problem. As illustrated in Fig. 15 in Ref. [5], the successful vortex surface tracking can be valuable to study the physical picture of energy cascade [7, 14, 15] and vortex-based models [16, 17] in turbulence.

The challenges of tracking vortex surfaces in turbulent-like complex flows are rooted in the breakdown of the Helmholtz theorem in real flows, which can cause the non-existence and non-uniqueness of VSF solutions. The former issue has been partially resolved using the two-time method. The error of numerical VSF solutions can be controlled under 5% in various applications. On the other hand, the latter issue can hinder an effective tracking of vortex surfaces [3] due to the correction substep in the two-time method, and there lacks a criterion to quantify this issue. In particular, the numerical dissipation in VSF calculation has two sides. It can regularize the numerical solution to avoid the formation of nearly-singular structures, while it can also artificially distort vortex surfaces to reduce time coherence in the surface tracking.

In the present study, we address the issue on the comprehensive assessment of vortex surface tracking by proposing new criteria in the VSF calculation, and develop a turbulent-like flow combing the large-scale coherent structures and small-scale turbulent structures to assess VSF solutions with moderate computational resources. The tracking criteria determine the effective tracking period. The evolution of VSF isosurfaces during this period demonstrates timewise evolution process of coherence structures, and reveals physically interesting vortex dynamics on the mechanism of transition and energy cascade.

The outline of this paper is as follows. In Section 2, we present the numerical method for the direct numerical simulation (DNS) and the construction of the turbulent-like flow. In Section 3, we review the theory and numerical method of VSF calculation. In Section 4, we propose criteria of tracking vortex surfaces based on the numerical VSF solution. The criteria are applied to the VSF evolution in the turbulent-like flow to investigate vortex dynamics in scale cascade in Section 5. Some conclusions are drawn in Section 6.

Simulation overview

DNS

The vortex surface tracking is applicable to general flows [6, 11]. Without loss of generality, we restrict our discussion to constant-density, incompressible viscous flows in the present study. The velocity field u(x,t) is governed by the Navier–Stokes (NS) equations

$$\begin{array}{*{20}l} \frac { \partial \boldsymbol{u} } { \partial t} + \boldsymbol{u} \cdot \nabla \boldsymbol{u} &= - \frac { 1} { \rho} \nabla p + \nu \nabla^{ 2} \boldsymbol{u}, \end{array} $$
(1)
$$\begin{array}{*{20}l} \nabla \cdot \boldsymbol{u}&= 0, \end{array} $$
(2)

where x denotes spatial coordinates, t the time, ρ the density, p the pressure, and ν the kinematic viscosity.

We carried out the DNS with the standard pseudo-spectral method [18, 19]. The spatial domain Ω of the flow field is a cube of side L=2π, and it is discretized on uniform grid points N3. The two-thirds truncation method with the maximum wavenumber kmaxN/3 is applied to remove aliasing errors. The Adams–Bashforth method is used for time advancement. The time step satisfies that the Courant–Friedrichs–Lewy (CFL) number is less than 0.2 to ensure the numerical stability and accuracy.

Construction of the turbulent-like flow

We propose a turbulent-like flow in which the vortex tracking criteria can be effectively assessed. This turbulent-like flow is a TG flow imposed by a HIT perturbation before transition. It consists of deterministic large-scale structures of the TG flow and stochastic small-scale structures of HIT.

The initial velocity is

$$ \boldsymbol{u}(t=0)=\boldsymbol{u}_{\text{TG}}\left(t_{\text{TG}}=t_{\text{TG}}^{*}\right)+\eta_{M} \boldsymbol{u}_{\text{HIT}}\left(t_{\text{HIT}}=t_{\text{HIT}}^{*}\right), $$
(3)

where uTG and uHIT denote the TG and HIT velocity fields, respectively, and ηM≥0 denotes the strength of the HIT perturbation. Both uTG and uHIT are calculated by independent DNS cases with the time tTG for the TG flow and tHIT for the HIT starting from their own initial velocity fields uTG(tTG=0) and uHIT(tHIT=0), respectively. The hybrid velocity in Eq. (3) consists of uTG at a particular time \({t}_{\text {TG}}^{*}\) and uHIT at another particular time \({t}_{\text {HIT}}^{*}\).

For the DNS of the TG flow, we set uTG(tTG=0)=(sinxcosycosz,−cosxsinycosz,0) [20, 21], and add the HIT disturbance at \(t_{\text {TG}}^{*}=4.5\) around the beginning of TG transition when the vortex reconnection occurs [6]. The Reynolds number is set as Re≡1/ν=400. The imposed HIT perturbation can trigger the emergence of convoluted vortex surfaces in the transition.

For the DNS of HIT, uHIT evolves from an initial random velocity field uHIT(tHIT=0) satisfying a prescribed energy spectrum \(\phantom {\dot {i}\!}E(k,t=0)\sim k^{4}e^{-(k/k_{p})^{2}}\) [22, 23] with the wavenumber magnitude k and the peak wavenumber kp=4 [5]. The initial total energy E0≡〈|uHIT(tHIT=0)|2/2〉 is set to be unity, where 〈·〉 denotes the volume average over the computational domain Ω. We choose \(t_{\text {HIT}}^{*}=1.3\) when the HIT becomes fully developed with the maximum mean dissipation rate in the temporal evolution and the Taylor-scale Reynolds number 54 [5]. The disturbance strength is chosen as ηM=0.05 and 0.1 so that the flow is featured by both large-scale evolving TG structures and small-scale turbulent-like structures.

DNS statistics

We set up three cases with the same Re=400 and three ηM=0,0.05,0.1 listed in Table 1. Note that case M0 with ηM=0 is equivalent to the regular TG flow. Figure 1 plots the temporal evolution of the total energy \(E_{tot} \equiv \int E(k)dk\), and the mean dissipation rate \(\varepsilon \equiv \int 2\nu k^{2} E(k)dk\). We observe that E0 increases with ηM and Etot decays with time in all cases. Meanwhile, ε first generally grows, then reaches a plateau around t=1.5, and gradually decays at late times. The growth of ε implies a transition process with the vortex reconnection and the emergence of small-scale vortical structures [5, 6]. The notable dip for case M2 in the early stage appears to be due to a transient process for reconciling the TG base flow and the imposed HIT disturbance.

Fig. 1
figure 1

Temporal evolution of flow statistics in cases with different ηM

Table 1 DNS parameters

Figure 2 plots the energy spectra for u(t=0) and \(\boldsymbol {u}_{\textrm {HIT}}(t_{\textrm {HIT}} = t^{*}_{\textrm {HIT}})\). The imposed HIT disturbance enhances E(k) in cases M1 and M2. In particular, the small-scale random turbulence structures smooth E(k) at moderate and large wavenumbers. The temporal evolution of E(k) in cases M1 and M2 in Fig. 3 indicates the emergence of turbulent-like structures at moderate wavenumbers, and E(k) in M2 is slightly larger than that in M1 at moderate k. At t=2 when ε peaks, E(k) at a small range of k satisfies the −5/3 scaling for low Re=400, and this range is expected to be broadened with increasing Re.

Fig. 2
figure 2

Spectra of the HIT disturbance and the initial flow fields in cases M0, M1, and M2

Fig. 3
figure 3

Temporal evolution of spectra in cases M1 and M2

VSF

VSF theory

The VSF ϕv, a global smooth scalar field, is defined to satisfy the constraint

$$ \boldsymbol{\omega} \cdot \nabla \phi_{v} =0, $$
(4)

where ω×u denotes the vorticity. The uniqueness and existence of the solution to Eq. (4) have been extensively discussed [1]. An exact VSF solution can be obtained for a flow field with vanishing helicity density [24], and an approximate VSF solution can be calculated from an arbitrary flow field [5].

From the Lagrangian view, the surface tracking in the narrow sense is described by the flow map of a specified surface. By the Helmholtz and Ertel theorems, the tracking of vortex surfaces is well defined in an ideal flow which is inviscid, barotropic, and with conservative body forces. It is equivalent to track a specified isosurface of the VSF governed by the Lagrangian advection equation

$$ \frac { \partial \phi_{v} (\boldsymbol { x}, t)} { \partial t} + \boldsymbol{u} (\boldsymbol { x}, t) \cdot \nabla \phi_{v} (\boldsymbol { x}, t) = 0, \quad t \geqslant 0. $$
(5)

On the other hand, the vortex surface tracking is generally ill-defined in non-ideal flows due to the breakdown of the Helmholtz theorem. One attempt to resolve this issue introduced a virtual velocity [3], instead of the physical one, to advect the VSF in Eq. (5), but it is only applicable to very special flows. Therefore, a precise definition of tracking of a vortex surface is still an open theoretical problem, but this issue can be reasonably approximated and regularized using numerical methods for practical interests.

VSF calculation

In non-ideal flows, the temporal evolution of the VSF can be numerically solved by the two-time method [6]. This numerical regularization method has been demonstrated to be effective to evolve the VSF and reveal the Lagrangian-like evolution of vortex surfaces in a range of non-ideal flows, e.g., incompressible and compressible viscous TG flows [6, 11], reacting flows [25], and magnetohydrodynamic (MHD) flows [3].

Each time step of the two-time method consists of two substeps. In the prediction substep, the temporal VSF \(\phi _{v}^{*}\) is advected by the physical velocity as a Lagrangian scalar as

$$ \frac { \partial \phi_{v}^{ *} (\boldsymbol { x}, t)} { \partial t} + \boldsymbol{u} (\boldsymbol { x}, t) \cdot \nabla \phi_{v}^{ *} (\boldsymbol { x}, t) = 0, \quad t \geqslant 0. $$
(6)

Then in the correction substep, \(\phi _{v}^{*}\) is transported by the frozen vorticity with a pseudo time τ as

$$ \frac { \partial \phi_{v}^{*} (\boldsymbol { x}, t ; \tau)} { \partial \tau} +\boldsymbol{\omega} (\boldsymbol { x}, t) \cdot \nabla \phi_{v}^{*} (\boldsymbol { x}, t ; \tau) = 0, \quad 0 \leqslant \tau \leqslant T_{ \tau }, $$
(7)

where Tτ is the maximum value of pseudo-time. The theoretical analysis and numerical experiment showed that \(\phi _{v}^{*}\) converges to an approximate VSF solution at large Tτ [6]. The initial condition ϕv(x,t;τ=0) for Eq. (7) is obtained from the result in the prediction substep. At the end of each time step, \(\phi _{v}(\boldsymbol { x}, t) = \phi _{v}^{*}(\boldsymbol { x}, t ; \tau = T_{\tau })\) is updated.

Both Eqs. (6) and (7) have no diffusion terms, so in principle nearly singular structures can form in \(\phi _{v}^{*}\) at large times or pseudo times. A dissipative numerical scheme such as the weighted essentially non-oscillatory (WENO) scheme [26, 27] was used for regularization. However, the smoothing of the nearly singular structures can also make \(\phi _{v}^{*}\) deviate from an accurate one. Thus, we need to carefully choose Tτ to balance the convergence and the numerical dissipation of \(\phi _{v}^{*}\) in Eq. (7), and we typically set 10ΔtTτ≤50Δt.

In the numerical implementation of solving Eqs. (6) and (7), we use the second-order TVD Runge–Kutta method for time advancement and the fifth-order WENO for spatial discretization of the convection terms. Moreover, the choice of spatial discretization schemes is discussed in Appendix A. The time and pseudo time steps are selected by the CFL numbers based on the velocity and vorticity magnitudes [6] less than 0.2, respectively. In general, the computational cost of VSF calculation is higher than that for solving the NS equations, and it depends on the desired solution quality, maximum value of vorticity magnitude, and complexity of vortex lines in flow fields [4].

In case M0, the initial VSF ϕ0 at t=0 is obtained as \(\phi _{0} = \phi _{\text {TG}}(t_{\text {TG}} = t_{\text {TG}}^{*}) \) from the evolution of the VSF ϕTG in the TG flow with the exact VSF ϕTG(tTG=0)=(cos2x− cos2y) cosz. In cases M1 and M2, ϕ0 is calculated using the pseudo-transport in Eq. (7) with the local optimization [5] and Tτ=2400Δt. The initial guess of Eq. (7) is \(\phi _{\text {TG}}(t_{\text {TG}} = t_{\text {TG}}^{*})\), and the local optimization is applied to each pseudo-time step. This hybrid method balances the accuracy and smoothness of the converged VSF solution.

Criteria of VSF tracking

VSF deviation

As discussed in Section 3.1, the tracking of vortex surfaces is perfect using Eq. (5) in ideal flows, whereas the assessment of the tracking becomes complex in non-ideal flows. On the accuracy of the VSF solution, Yang and Pullin [6] proposed a metric

$$ \epsilon_{\phi} \equiv \left \langle\left|\lambda_{ \boldsymbol{\omega} }\right|\right \rangle $$
(8)

to quantify the averaged deviation of a numerical VSF solution from an exact one with 0≤εϕ≤1, where

$$ \lambda_{ \boldsymbol{\omega}} \equiv \frac { \boldsymbol{\omega} \cdot \nabla \phi_{ v} } { | \boldsymbol{\omega} | \left| \nabla \phi_{ v} \right| }, $$
(9)

the cosine of an angle between the VSF gradient and the vorticity, characterizes the local VSF deviation. Former VSF studies [5, 6] suggested that a satisfactory VSF solution should have εϕ≤5%10%.

On the other hand, it is not sufficient to conclude that a temporally evolving VSF solution with a small εϕ must be a good candidate for tracking vortex surfaces due to the nonuniqueness of the VSF solution [1]. An extreme example provided in a MHD flow (see in Fig. 8 in Ref. [3]) shows that the vortex surface should be time invariant, but the VSF isosurface evolves among nonunique VSF solutions with εϕ=0.

We sketch this issue in Fig. 4. Two typical vortex surfaces represented by circular dashed lines at a time t evolve into the two represented by elliptical dashed lines at a later time t+Δt. An ideal vortex surface tracking should show the one-to-one map between the two inner loops or the two outer loops at the two times in a Lagrangian manner. There are two types of discrepancies in the tracking. For the inner vortex surface at t (thick solid line), two isosurfaces of numerical VSF solutions are sketched at t+Δt. The upper one is attached across the inner and outer vortex surfaces with satisfactory εϕ and poor Lagrangian tracking performance, i.e., the solid loop obviously deviates from the inner dashed loop. On the contrary, the bottom one is oscillating around the inner vortex surface with large εϕ and satisfactory Lagrangian tracking performance. Thus, besides εϕ, we need another metric to quantify the Lagrangian tracking performance in the overall assessment of the VSF solution.

Fig. 4
figure 4

Sketch of different surface tracking performances from a given time t (left) to a later time t+Δt (right). The blue dashed loops denote two vortex surfaces in the ideal tracking, and red solid loops denote a VSF isosurface from a numerical VSF solution. The upper right solution has satisfactory accuracy but poor Lagrangian tracking performance, and the bottom right one has poor accuracy but satisfactory tracking performance

Volume overlap ratio of VSF isosurfaces

The evolution of vortex surfaces is characterized by the VSF isosurfaces of a particular contour value ϕv=φ. Although φ is expected to be constant, it is adjusted at different times due to the numerical dissipation. In this implementation, φ is implicitly determined from [11]

$$ V(\phi_{v} = \varphi, t) = V(\phi_{v} = C_{\phi}, t=0) $$
(10)

by searching the isocontour values ϕv=φ at a given time t and ϕv=Cϕ at the initial time which correspond to the same fluid volume VϕV(ϕv=Cϕ,t=0). Here, the fluid volume within an isosurface of ϕv=φ is calculated by the integration over the entire computational domain as

$$ V(\phi_{v}=\varphi)=\int_{\Omega} H_{\delta}(\phi_{v}=\varphi)d \boldsymbol{x}, $$
(11)

where

$$ H_{\delta}(\phi_{v}=\varphi)=\left\{ \begin{array}{ll} 0, & \qquad \phi_{v} - \varphi < - \delta,\\ \frac{1}{2\delta}(\phi_{v}-\varphi+\delta)+\frac{1}{2\pi}\sin\frac{\pi(\phi_{v}-\varphi)}{\delta}, & \qquad |\phi_{v} - \varphi|\leqslant\delta,\\ 1, & \qquad \phi_{v} - \varphi > \delta \end{array} \right. $$
(12)

is the discretized Heaviside function [28] with a smoothing parameter δ=1×10−6. The previous VSF visualization shows that the isosurface of ϕv=φ can reasonably describe the continuous temporal evolution of a particular vortex surface, and this VSF isocontour selection is consistent with the volume conservation implied by the Helmholtz theorem in the limit of in ideal flows [11].

To quantify the tracking performance from numerical VSF solutions, we propose a volume overlap ratio

$$ R_{V} = \frac{V_{\bigcap}}{V_{\phi}}, $$
(13)

where the volume overlap is calculated by

$$ V_{\bigcap}=\int_{\Omega} H_{\delta}(\phi_{v}=\varphi)H_{\delta}(\phi_{v}^{\text{ref}}=\varphi^{\text{ref}})d\boldsymbol{x}. $$
(14)

Here, ϕv is the VSF solution being examined, and \(\phi _{v}^{\text {ref}}\) denotes an exact reference VSF solution. In the implementation, \(\phi _{v}^{\text {ref}}\) is obtained as a numerical VSF solution with high grid resolution, so it is presumed to be accurate enough with good convergence and low numerical dissipation. The isocontour values of φ and φref satisfy

$$ \int_{\Omega} H_{\delta}(\phi_{v}=\varphi)d\boldsymbol{x}=\int_{\Omega} H_{\delta}(\phi_{v}^{\text{ref}}=\varphi^{\text{ref}})d\boldsymbol{x} = V_{\phi}. $$
(15)

Thus, RV characterizes the normalized volume overlap ratio between the volumes within the isosurfaces of the candidate VSF solution ϕv=φ and the reference VSF solution \(\phi _{v}^{\text {ref}}=\varphi ^{\text {ref}}\).

For example, Fig. 5 plots cross-sections of VSF solutions on the yz slices at x=3 and tTG=5.0 in the TG flow for Re=400 with N=128 (red for the VSF solution to be tested) and N=512 (blue for the reference VSF solution) along with their overlap region (shaded), where Fig. 5c combines Fig. 5a and b. The isocontour value corresponds to VΩ/8 and the volume overlap ratio is RV=0.44, where VΩ denotes the volume of the whole computational domain.

Fig. 5
figure 5

Illustration of the volume overlap ratio based on the yz slices of numerical VSF solutions at x=3 and tTG=5.0 in the TG flow for Re=400. The edge is the intersection of the VSF isosurface and the yz plane

The volume overlap ratio characterizes the time coherence of the vortex surface tracking based on VSF solutions. The best tracking performance has RV=1. To balance reasonably good time coherence and moderate computational cost, we propose a criterion RV≥0.5 for satisfactory performance of vortex surface tracking. Note that the VSF solution is closer to the reference one while the VSF grid resolution is more demanding for larger RV.

Conservation of numerical VSF solutions

In practice, RV may be not available due to the lack of the reference VSF solution with high grid resolution, so we need to find a surrogate metric to assess the Lagrangian tracking performance of numerical VSF solutions. In the present VSF evolution, the VSF isosurface is volume-preserving under the selection of isocontour levels in Eq. (10), but it can be artificially distorted by the dissipative numerical regularization.

The distortion is related to the numerical dissipation, which can be quantified by

$$ R_{\phi}(t) \equiv \frac{\sqrt{\left \langle\phi_{v}^{2} (t)\right \rangle }}{\sqrt{\left \langle \phi_{v}^{2} (t=0)\right \rangle}}. $$
(16)

Note that Rϕ=1 for the ideal vortex surface tracking based on Eq. (5). In similar front tracking problems, such as in the level set method [29, 30], the conservation degree of the numerical solution of the tracer scalar governed by the equation in the form of Eq. (5) is an important metric to assess the tracking performance. Thus, we examine the correlation of Rϕ and RV to demonstrate that whether Rϕ is suitable to characterize the vortex surface tracking.

In the VSF calculations for the TG flow with Re=400, we use the VSF solution with N=512 as the reference one, and collect RV and Rϕ at different times and with different grid resolutions. Note that in order to avoid the grid resolution effect of velocity field, we set the same number of grid points 5123 for DNS but different N for VSF calculations. In Fig. 6, the data points on the same curve from right to left are obtained at tTG=4.0,4.5,5.0,5.5,6.0,6.5,7.0. In this time period, the TG flow has a transition to the turbulent-like state. The isocontour values correspond to Vϕ=VΩ/16 and VΩ/4.

Fig. 6
figure 6

Correlation of the data points of RV and Rϕ in the TG flow for Re=400. The symbols on the same curve from right to left are obtained at tTG=4.0,4.5,5.0,5.5,6.0,6.5,7.0. The region satisfying the tracking criteria in Eq. (17) is shaded in light blue

We find that Rϕ and RV are positively correlated, indicating the effectiveness of Rϕ for characterizing the surface tracking performance. Moreover, the correlation depends on the grid resolution and the isocontour level. It is noted that the volume Vϕ within the isosurface of ϕv=Cϕ decreases with the increasing Cϕ. For the same Rϕ,RV increases with N and Vϕ. This suggests that the isosurface at a large isocontour level with small volume tends to be significantly distorted on a coarse grid, so we still need to use a reasonably high grid resolution and a suitable Cϕ corresponding to a large enough volume for the assessment. For N=256, we observe that the criterion RV>0.5 is satisfied for Rϕ>0.05, i.e., the corresponding data points are within the shaded region in Fig. 6.

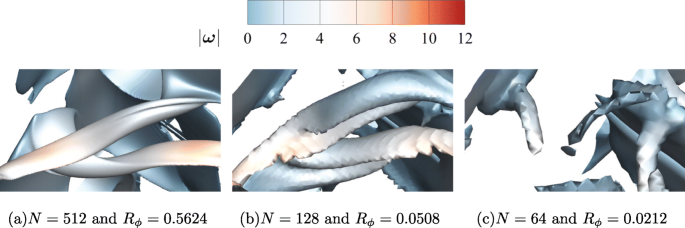

As an illustrative example, we show the close-up view of VSF isosurfaces in the TG flow for Re=400 at tTG=7.0 with N=512,N=128, and N=64 in Fig. 7. We observe two clear twisted vortex tubes from the reference numerical VSF solution with N=512 and Rϕ=0.5624 in Fig. 7a. By contrast, the vortex tube is barely resolved for the low-resolution VSF solution with N=128 and Rϕ=0.0508 in Fig. 7b. Although some parts are under-resolved, e.g., the very twisted part at the right end of the vortex tube in Fig. 7b, the essential tube structure is still preserved with Rϕ=0.0508. On the other hand, the vortex tube is not well resolved in Fig. 7c with N=64 and Rϕ=0.0212.

Fig. 7
figure 7

Comparison of isosurfaces of numerical VSF solutions in the closed-up view in the TG flow at tTG=7.0 for Re=400 with different N and Rϕ

Therefore, we propose the criteria

$$ \epsilon_{\phi} <0.05~~~\text{and}~~~R_{\phi}>0.05 $$
(17)

to quantify both the VSF deviation and Lagrangian tracking performance. The threshold values are selected for the perturbed TG flow which has features of both turbulent and transitional flows with large-scale coherent and small-scale turbulent flow structures.

Evolution of VSFs

Morphology of vortex surfaces

We compare the morphology and dynamics of vortex surfaces in the flows under different magnitudes of the HIT disturbance. Figure 9 depicts the VSF isosurfaces with Vϕ=VΩ/16 at two typical times t=0.5 and 1.5 in cases M0, M1, and M2. The surfaces are color-coded by |ω|. The selection of Vϕ=VΩ/16 is based on the satisfactory Rϕ in Fig. 8 and the visualization effect of displaying fine-scale structures.

Fig. 8
figure 8

Temporal evolution of εϕ and Rϕ in cases M1 and M2

Fig. 9
figure 9

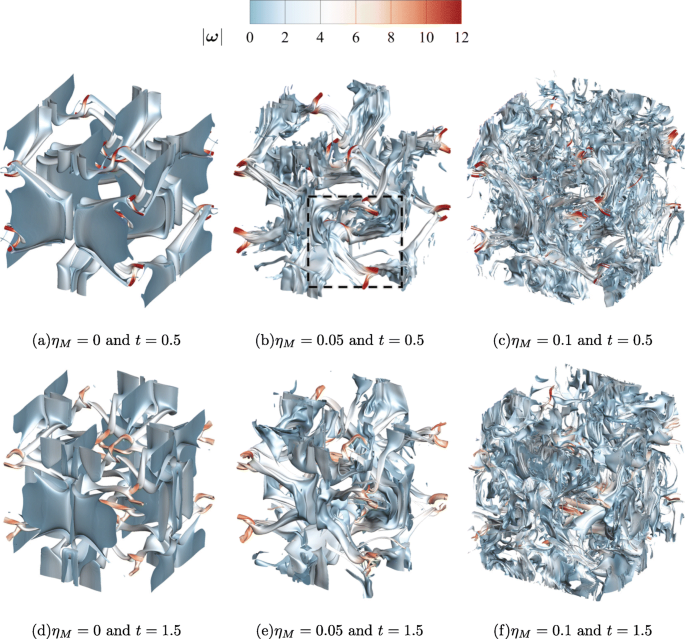

Comparison of temporal evolutions of the VSF isosurface with Vϕ=VΩ/16 in cases M0, M1, and M2. The surfaces are color-coded by the vorticity magnitude

The transition from a smooth flow to a turbulent flow occurs around tTG=4.56.0 in TG flows, or equivalently t=01.5 in case M0. This process under the TG symmetries [21] has been elucidated by the evolutionary geometry and topology of VSF isosurfaces [6, 11]. Initially, the two blob-like vortex surfaces approach to each other. They are flattened and then merged together around tTG=4.5 or t=0. As shown in Fig. 9a and b, the edge of the merged structure rolls up into vortex tubes during t=01.5. At late times, the tubes are tangled and twisted, constituting a turbulent-like flow. The VSF isosurface reveals the Lagrangian-like continuous evolution of vortex surfaces, which has essential differences from the visualization using Eulerian vortex criteria [5, 6] such as Q [9] and λ2 [10] criteria.

Next, we illustrate how the imposed HIT disturbance changes the evolution of vortex surface during the transition in case M1 with ηM=0.05 and in case M2 with ηM=0.1. First, the time evolution of εϕ and Rϕ in Fig. 8 indicates that the effective time period for the vortex surface tracking is around t=0.51.5 based on the criteria in Eq. (17). Compared with case M0, the imposed HIT disturbance in case M1 significantly wrinkles the vortex surface and produces more small-scale vortex tubes at t=0.5 in Fig. 9b, and then some of the small-scale tubes are dissipated at t=1.5 in Fig. 9e. On the other hand, the large-scale TG coherent structures are similar in cases M0 and M1. For more intense HIT disturbance in case M2, the vortex surface breaks down into a turbulent-like state with the emergence of numerous small-scale vortex tubes in Fig. 9c and f. The large-scale TG structures are barely distinguished, while the regions of very large local vorticity magnitude remain due to the TG symmetries.

Figure 10 provides a close-up view of the continuous evolution of vortex surfaces to reveal the local vortex dynamics, where the zoom-in region is marked by the black dashed box in Fig. 9b. First, the perturbed vortex tube with large vorticity magnitude is wrinkled, then it is persistently stretched and twisted to form a spiral vortex tube, as marked in red boxes in Fig. 10a and f. By contrast, the wrinkled vortex surface with small vorticity magnitude tends to be smoothed as marked in blue boxes in Fig. 10a and f. The locally twisted spiral vortex tube reveals the important vortex core dynamics [31] in turbulent flows. This vortex geometry is consistent with the strained spiral vortex model [16] for small-scale turbulent structures, and supports the structure-based subgrid scale models [32] for the large-eddy simulation.

Fig. 10
figure 10

Close-up view of the evolution of the VSF isosurface with Vϕ=VΩ/16 in the region marked by the black box in Fig. 9b in case M1 (ηM=0.05). The color bar is the same as that in Fig. 9

We continue to zoom in the region in the red box in Fig. 10 to show the detailed evolution of the twisted vortex tubes in Fig. 10. Besides the persistent twisting of vortex tubes with high |ω|, we notice that the vortex tubes are intertwined with each other in Fig. 11d,e,f. At the mean time, the twisted vortex tube is flattened into a ribbon-like structure, suggesting a possible way for the reduction of the characteristic length scale.

Fig. 11
figure 11

Further close-up view of the evolution of the VSF isosurface with Vϕ=VΩ/16 in the region marked by the red box in Fig. 10 in case M1 (ηM=0.05). The color bar is the same as that in Fig. 9. Some vortex lines are integrated from points on the surface

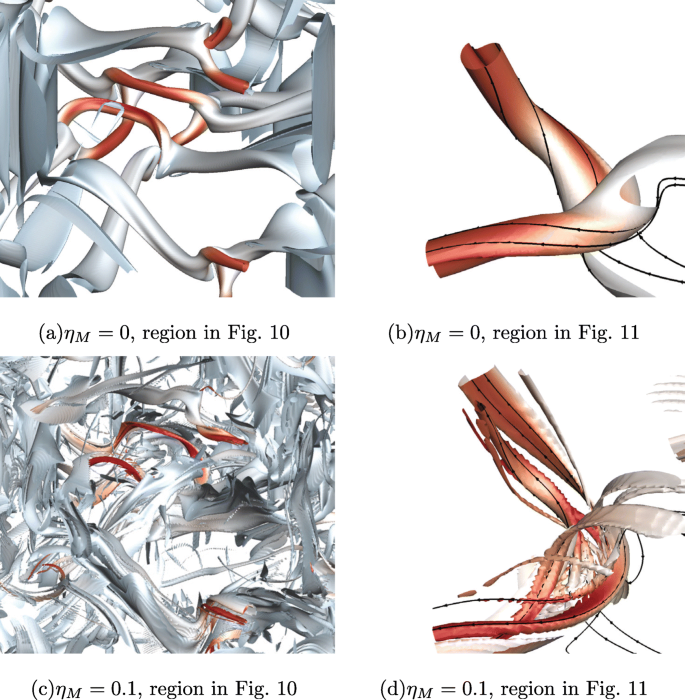

For comparison, Fig. 12 shows the VSF isosurfaces in the same regions in Figs. 10 and 11 in cases M0 and M2. The VSF isosurfaces in case M0 in Fig. 12a and b have much less wrinkling than those in case M1, and the surfaces in both the large and small |ω| regions stay smooth. The VSF isosurfaces in case M2 in Fig. 12c and d show much more wrinkled surfaces and chaotic small-scale structures with small |ω|. In particular, the comparison of Fig. 12b and d shows that the large-scale vortex tube structure in case M0 remains in case M2, and it consists of multiple small-scale, thread-like structures. This observation supports the strained spiral vortex model [16, 33] in HIT. Moreover, the geometric differences of vortex surfaces in the three cases and the time coherence at different times (e.g., t=0.5 and 1.5) are not well characterized in the isosurface of |ω| (not shown).

Fig. 12
figure 12

Close-up views of VSF isosurfaces within the same regions in Figs. 10 and 11 at t=1.0 in cases M0 and M2. The color bar is the same as that in Fig. 9. The VSF isosurfaces with |ω|<|ω|max/10 in (a) and (c) and with |ω|<|ω|max/3 in (b) and (d) are cut off for clarity. Some vortex lines are integrated from points on the surface

Vortex surface distortion and local vorticity

From the visualization of VSF isosurfaces, the deformation of vortex surfaces tends to occur near the strong vorticity region. The local geometry of VSF isosurfaces is quantified by the mean curvature κ≡(·n)/2 with n≡−ϕ/|ϕ|. As illustrated in Fig. 9, the surface distortion at the same time for cases M0, M1, and M2 increases with ηM. The geometric difference between the TG flow and the perturbed TG flows is characterized by the volume-averaged mean curvature difference

$$ \Delta\langle|\kappa(t)|\rangle \equiv \left \langle|\kappa_{\mathrm{M}}(t)|\right \rangle-\left \langle|\kappa_{\text{TG}}(t)|\right \rangle, $$
(18)

where κM denotes the mean curvature in cases M1 or M2, and κTG denotes the mean curvature in case M0.

Thus, we quantify the preferential deformation in cases M1 and M2 using the volume averaged mean curvature difference conditioned on low and high vorticity regions 0≤|ω|/|ω|max≤1/8 and 7/8≤|ω|/|ω|max≤1 in case M0, respectively, in Fig. 13. It is clear that the surface distortion due to the HIT disturbance is enhanced within the high- |ω| region with time, while it is mitigated within the low- |ω| region, consistent with the observation in Fig. 10. This preferential surface distortion implies that the energy cascade from large to small scales tends to occur in high- |ω| region.

Fig. 13
figure 13

Temporal evolution of the averaged mean curvature difference in cases M1 and M2 conditioned on low- and high- |ω| regions

Conclusions

We propose criteria of tracking vortex surfaces in complex flows. The criteria in Eq. (17) involve not only the deviation εϕ of the numerical VSF solution, characterizing the attachment of vortex lines on VSF isosurfaces, but also the conservation ratio Rϕ, characterizing the Lagrangian-like tracking performance.

The new criterion on the numerical conservation is positively correlated to the volume overlap ratio between the isosurfaces of the numerical and reference VSF solutions. This criterion quantifies the error from the numerical artifact due to the nonuniqueness of VSF solutions in the correction step of VSF calculation. The comprehensive assessment of VSF solutions based on Eq. (17) provides a time range when the vortex surface tracking is satisfactory for both the accuracy of the vortex surface definition and the time coherence of the one-to-one flow map of VSF isosurfaces.

In order to assess the vortex tracking in chaotic but still coherent flow fields, we develop a turbulent-like flow combining the large-scale coherent structures in the TG flow and small-scale turbulent structures in HIT. The HIT disturbance is added to the TG flow near the TG transition time, which accelerates the transition to turbulence while preserves the large-scale TG symmetries. In the flow evolution, the vortex tracking criteria are satisfied within a finite period from t=0.5 to 1.5 in cases M1 and M2 with HIT strengths ηM=0.05 and 0.1.

From the evolution of vortex surfaces during the effective tracking period, we demonstrate several local vortex dynamics. First, the imposed HIT disturbance significantly wrinkles vortex surfaces and accelerates the rolling up of small-scale vortex tubes. Second, the wrinkled vortex tube with large |ω| tends to be further twisted around the vortex axis under the self-induction, generating more small-scale structures and contributing to the energy cascade. By contrast, the wrinkling is mitigated in the region with small |ω|.

In future work, the tracking criteria can be applied to more complex flows, such as compressible turbulence [34], with more available computational resources. In particular, the detailed and quantitative investigation on the relation between the scale cascade of vortex surfaces and the energy cascade in spectral space is expected for high-Re HIT and wall-bounded turbulent flows.

Appendix A: Effect of the numerical scheme on the vortex surface tracking

The numerical regularization for Eqs. (6) and (7) is implemented using a dissipative finite-difference scheme for the convection term. For example, the WENO scheme is used in the present study. This scheme can effectively suppress numerical oscillations [26], while it may cause excessive numerical dissipation which reduces Rϕ and weakens the time coherence in the vortex surface tracking. Thus, we also test the eighth-order targeted essentially nonoscillatory (TENO) scheme [35, 36], which is presumed to be less dissipative than WENO, for discretizing the convection term. We apply the WENO and TENO schemes to calculate the VSF in the TG flow for Re=400 with different N and use the criteria in Eq. (17) to assess the performance of the two schemes for tracking vortex surfaces. The case parameters are listed in Table 2.

Table 2 TG cases for testing numerical schemes

Compared with the WENO scheme, the TENO scheme has less numerical dissipation while has milder suppression on numerical oscillations. Figure 14 plots the temporal evolution of εϕ and Rϕ for the five TG cases. For the VSF deviation, both WENO and TENO perform well. In general, they have typically εϕ<0.05 at tTG=06 with N≥256, and εϕ for TENO is overall larger than that for WENO on the same grid. For the numerical conservation, TENO outperforms WENO, even when we compare the results for TENO on grid points N3 and WENO on grid points (2N)3.

Fig. 14
figure 14

Temporal evolution of εϕ and Rϕ in cases TG1 TG5 with different numerical schemes and grid resolutions

Fig. 15
figure 15

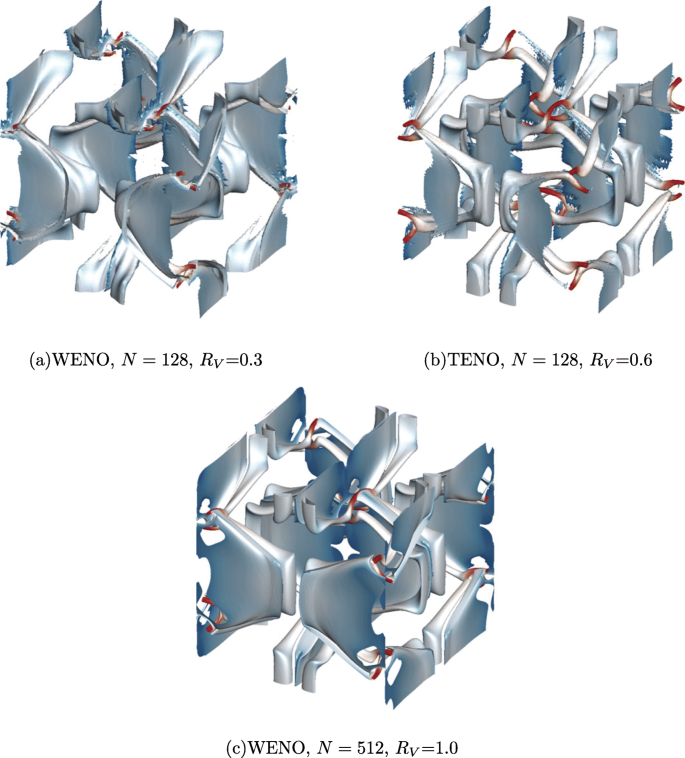

Comparison of the VSF isosurfaces in cases TG1, TG2, and TG5 with different numerical schemes and grid resolutions. The color bar is the same as that in Fig. 9

By comparing VSF visualizations from WENO and TENO schemes on the low-resolution grid with N=128 in Fig. 15a and b, the TENO scheme clearly resolves the rolling up of vortex tubes, as the same as that from the reference solution in Fig. 15c. By contrast, the WENO scheme cannot resolve the vortex tube due to the excessive numerical dissipation in large straining regions. On the other hand, the TENO scheme can introduce more numerical oscillations in smooth regions and take more computational time than the WENO on the same grid (not shown). Hence, we still use the WENO scheme with a high enough grid resolution to calculate the VSF in the turbulent-like flows for the overall performance.

Availability of data and materials

All data and materials are available upon request.
