A theoretical study of serrated leading edges in aerofoil and vortical gust interaction noise

Abstract

Serrated leading edges are one of the most promising passive aerodynamic control methods for the reduction of aerofoil–turbulence interaction noise. To elucidate the possible physical mechanisms, the current paper studies the simplified set-up with aerofoil–vortical gust interaction and proposes an analytical model by incorporating Fourier transform into the Wiener–Hopf method. The proposed model suggests that the serrations operate on the incident vortical gusts as convolution, which leads to the innovative concept that models serrations as transfer functions in the wavenumber domain. Overall, the current theoretical study could provide a unique insight of the inherent aerodynamic noise control mechanisms of leading-edge serrations.

1 Introduction

Aerofoil–turbulence interaction is one of the dominant broadband flow-induced noise sources in aircraft, aeroengine and wind turbines [1–3]. Serrated leading edge, which is one of the most promising passive aerodynamic control methods, has recently received increasing research interests [1, 4, 5]. The serration approach has a presumed connection to the silent flying capability of owls [6–8] and, as shown in Fig. 1, the primary feather from an owl actually contains very long, curved and comb-like leading- and trailing-edge serrations, which demands further studies of shape optimisations and modeling capabilities.

Fig. 1

The problem of interest, where (a) the sketch of a flying snowy owl, and (b) one of the primary feathers from an eagle owl and the corresponding leading-edge image

Currently, most studies of trailing-edge noise control have mainly focused on sawtooth-shaped serrations [9–12], while studies of leading-edge serrations have considered potential aerodynamic drag penalties and primarily focused on wavy (sinusoidal) profiles of protuberances and tubercles [1, 4, 13]. More specifically, [5] has conducted experimental studies of a leading edge with curved sawtooth-shaped serrations and reached the conclusion that a serration with the largest amplitude (tip-to-root length) and the largest wavelength (period) is optimal. Kim et al. [1] and Zhong et al. [3] have conducted computational studies by using Euler-equations-based model with injected synthetic turbulence. The work [3] has computationally studied the interaction between the streamwise/transverse turbulent disturbances and a straight leading edge in transonic flows and shown the significantly influenced sound propagation in the presence of shocks. The work [1] has simulated aerofoil-turbulence interaction noise associated with wavy leading edges in low subsonic flows and found reduced levels of radiated sound pressure due to geometric obliqueness and phase interferences.

Overall, many recent works, such as those from the groups at Brunel University and Southampton University, have performed a series of pioneering experimental studies of aerofoil aerodynamic noise with serrations in realistic set-ups [1, 5, 12, 14, 15], which have provided sufficient physical insights that shall further enable the follow-up theoretical studies. Then, the main focus of the current paper is the theoretical development of an analytical model for the scattered sound waves from an infinitely thin aerofoil with serrated leading edge in the presence of a uniform background flow.

A theoretical model could enable rapid parametric studies and offer clear physical insights after taking reasonable simplifications and justifiable assumptions. To enable theoretical developments, an aerofoil is usually modeled as an infinite half plane with leading-edge serrations in the presence of uniform flows, and the incident turbulent flow is approximated by synthetic turbulence or simply a couple of eddies. By adopting such simplifications, the work [13] has developed an analytical model based on the modified Green’s function from [16] and found that it is still difficult to predict the optimal serration design due to nonlinear interactions between eddies. Other than extending Howe’s approach, [17] has adopted their previous approach [11] that combines coordinate transformation, Fourier series expansion and Schwarzschild techniques to propose an analytical model for leading-edge serrations. On the other hand, [18] has adopted the Wiener–Hopf method to study the effect of leading-edge radius on gust and aerofoil interaction noise, and then incorporate non-orthogonal coordinate transformation into the Wiener–Hopf model for leading-edge serrations [19] as well as trailing-edge serrations [20]. All these theoretical studies have identified some limitations. For example, the work [13] has adopted the slender body approximation from [16], which shall be unfit for long and comb-like serrations (see Fig. 1b). The references [17] and [19] have adopted coordinate transformation, which shall be most applicable to serrations with straight profiles. Furthermore, near-field solutions, which shall clearly illuminate the associated aerodynamic noise control mechanisms, have not been given in [19] for unknown reason. To address these issues, the current paper proposes a theoretical model by incorporating Fourier transform into the Wiener–Hopf model.

The reference [21] has incorporated Fourier series expansion into the Wiener–Hopf method to study the scattering of external sound waves due to serrations, and further extended that model for the study of Tollmien-Schlichting pressure wave scattering from serrated trailing-edge set-ups [10]. As argued by [19], our models are inevitably mathematically complicated. The current paper would endeavour to simplify our previous model by incorporating Fourier transform into the Wiener–Hopf method. The Wiener–Hopf method is a powerful mathematical tool and has been heavily used for two types of classical wave problems in fluid mechanics: duct radiations [22–26] and flat plate diffractions [10, 18, 21, 27]. The current problem falls into the second type, which usually has a much simpler Wiener–Hopf kernel than duct radiation problems. However, sound radiations from a duct are always periodic in the azimuthal direction, whereas the scattered field from a serrated flat plate could be aperiodic in the spanwise direction, which requests delicate manipulations in Fourier series expansion [10, 11] that however result in complicated models. Instead of using Fourier series, the current work utilises Fourier transform to establish the closed-form solution and, from which, proposes a transfer function in the chordwise–spanwise wavenumber domain to clearly elucidate the possible noise control effect of the serrations.

2 Theoretical model

2.1 Description of the problem

Figure 2 shows the current problem set-up, which contains a semi-infinite aerofoil with an infinite number of periodic rigid leading-edge serrations in the presence of a uniform flow. An incident synthetic turbulence usually consists of hundreds of Fourier modes and the associated velocity perturbation is given as the curl of a vector potential. For each single eddy case, the associated pressure boundary condition (e.g., (38) in [13]) is similar to that of an inject harmonic gust, which is

$$ v_{g}(x,y,z,t) = a_{g}(z) e^{i k_{x} x - i\omega t }, \quad \omega=k_{x} M_{0} = k, $$

(1)

Fig. 2

Sketch of the model problem, where the (sinusoidal-shaped) wavy serrations with the profile χ(z) (with amplitude 2h_s and the wavelength λ_s) are shown as an example. We wish to mention that our model also works for other shapes, such as sawtooth- and slotted-shaped profiles

where v_g is the velocity in y and would be only meaningful for the current set-up at y=0, a_g(z) is the associated amplitude with respect to z, k_x is the normalised wavenumber in the chordwise direction, ω and k are normalised angular frequency and wavenumber, and M₀ is the freestream Mach number. The associated scattered sound field from the leading edge of an aerofoil at zero angle of attack is governed by

$$ \left(\frac{\partial^{2}}{\partial x^{2}}+ \frac{\partial^{2}}{\partial y^{2}}+ \frac{\partial^{2}}{\partial z^{2}}\right)\psi_{s} - \left(-ik + M_{0} \frac{\partial}{\partial x} \right)^{2} \psi_{s} =0, $$

(2)

where ψ_s is the acoustic potential and all of the variables are non-dimensionalised using appropriate reference scales. Given ψ_s, the scattered sound pressure is p_s=(−ik+M₀∂/∂x)ψ_s. Following the assumption of frozen turbulence, the unsteady incident gust remains its form after convecting past the leading edge, and will then be annihilated by the scattered sound fields from the aerofoil; in addition, the jump in the scattered field across y=0 and x<χ(z) must be zero to satisfy the far-field radiation condition and the continuity of the scattered field upstream of the leading edge, which lead to the corresponding boundary conditions:

$$\begin{array}{@{}rcl@{}} {\left. {{ \frac{\partial{\psi_{s}(x,y,z)}}{\partial y}}} \right|_{y = 0}} = - a_{g}(z) e^{{ik}_{x} x}, &\quad \forall x \ge \chi(z), \end{array} $$

(3)

$$\begin{array}{@{}rcl@{}} \psi_{s}(x, 0, z) = 0, &\quad \forall x < \chi(z), \end{array} $$

(4)

where χ(z) describes the profiles of serrations. The scattered field should also satisfy the far-field radiation condition.

2.2 The Wiener–Hopf model

The essential concept behind this work is the incorporation of Fourier transform into the Wiener–Hopf method. First, we define the two-dimensional Fourier transform in the (x,z) domain as

$$ \psi(\alpha,{y}, \beta) = {\int}_{-\infty}^{\infty} {\int}_{-\infty}^{\infty} {\psi}_{s}({x}, {y}, {z}) {e}^{i\alpha {x}} {e}^{i\beta {z}} \mathrm{d} {x}\mathrm{d} {z}. $$

(5)

Substituting (5) into (2) yields

$$ \frac{\partial^{2}}{\partial {y}^{2}} \psi(\alpha, {y}, \beta) - \underbrace{ \left(\alpha^{2} +\beta^{2} - \left(k - M_{0} \alpha\right)^{2} \right)}_{\gamma^{2}} {\psi}({\alpha}, {y}, \beta) =0, $$

(6)

where γ=γ₋γ₊ and γ_±=[α±((k−M₀α)²−β²)^1/2]^1/2, from which the branch points will possibly coincide at the origin when β=k and M₀=0, which will prevent the definitions of upper- and lower analytic half-planes. Hence, for mathematical rigor, we should mention that the current method cannot model the singular case with β=k at M₀=0. Physically, M=0 means there is no flow and the gusts (or eddies, turbulence) is not convected, and no distortion happens to produce sound. By following [22], the principal branches of the square roots are chosen for γ so that the branch cuts of γ_± are from $b_{0}^{\pm }=k/(M_{0}\pm 1)$ to ±∞, respectively, when β is simply zero. If β≠0, the stating points $b_{0}^{\pm }$ would change along with β. Figure 3 shows the two half-planes and the integral path.

Fig. 3

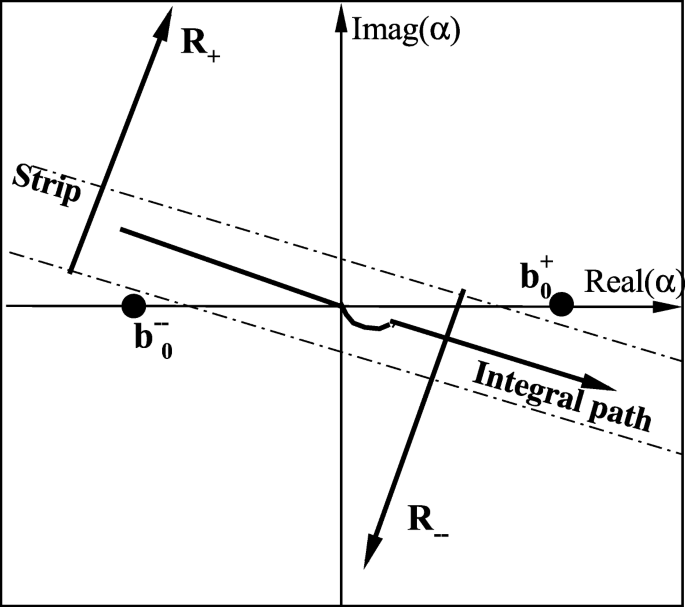

Sketch of the Argand diagram of the two half-planes R_± and the overlapped strip. Two branch cuts joining the branch points $b_{0}^{\pm }$ to ±∞ through the corresponding two half-planes. The integral path would move back to the horizontal axis [22] except for a slight distortion around the origin to avoid any possible singular point

To satisfy the acoustic radiation condition, the solutions of (6) should have the form:

$$ \psi (\alpha, {y}, \beta)=\left\{ \begin{array}{cc} A (\alpha, \beta) e^{-\gamma(\alpha, \beta) {y}},\quad & \forall {y} >0, \\ - A (\alpha, \beta) e^{\gamma(\alpha, \beta) {y}},\quad &\forall {y} <0. \end{array}\right. $$

(7)

From (7), we can further have the following relation at y=0⁺:

$$ \gamma(\alpha, \beta) \psi\left(\alpha, 0^{+}, \beta\right) + {\psi^{\prime}}\left(\alpha, 0^{+}, \beta\right)=0, $$

(8)

where (·)⁺ denotes the upper side of (·), and (·)^′ represents d/dy. Next, we decompose ψ into the sum of the following two parts:

$$\begin{array}{@{}rcl@{}} &&\psi(\alpha, {y}, {\beta}) = \underbrace{{\int}_{-\infty}^{\infty} {\int}_{{\chi}({z})}^{\infty} {\psi}_{s} e^{i\alpha {x} }e^{i \beta z} \mathrm{d} {x} \mathrm{d} {z}}_{= {\psi}_{+}(\alpha, {y}, {\beta})} + \underbrace{{\int}_{-\infty}^{\infty} {\int}_{-\infty}^{{\chi}({z})} {\psi}_{s} e^{i\alpha {x} }e^{i \beta z} \mathrm{d} {x} \mathrm{d} {z}}_{= {\psi}_{-}(\alpha, {y}, {\beta})}, \\ && = \underbrace{\mathfrak{F}\left[ e^{i \alpha {\chi}({z})} \right]}_{= \zeta(\alpha, \beta)} \ast \left(\underbrace{\mathfrak{F}\left[ {\int}_{0}^{\infty}\hat{\psi}_{s}(\hat{x}, {y}, {z})e^{i\alpha \hat{x} }\mathrm{d} \hat{x}\right]}_{= \hat{\psi}_{+}(\alpha, {y}, {\beta})} + \underbrace{\mathfrak{F}\left[{\int}_{-\infty}^{0}\hat{\psi}_{s}(\hat{x}, {y}, {z})e^{i\alpha \hat{x} }\mathrm{d} \hat{x} \right]}_{= \hat{\psi}_{-}(\alpha, {y}, {\beta})} \right), \end{array} $$

(9)

where $\hat {x}=x - \chi (z)$, the subscripts (·)_± denote analytic on the upper and lower half-planes R_±, respectively, and the symbol $\mathfrak {F}[(\cdot)]$ represents the Fourier transform of (·) in the z-direction, i.e., $\mathfrak {F}[(\cdot)] = \int _{-\infty }^{\infty } (\cdot) \text {exp}(i \beta z) \mathrm {d} z$, and ∗ represents the convolution operation.

Substituting (9) into (8) yields

$$ \gamma(\alpha, \beta) \left(\psi_{+}\left(\alpha, 0^{+}, \beta\right)+ \underbrace{\psi_{-}\left(\alpha, 0^{+}, \beta\right)}_{\equiv 0 \mathrm{~from~} (4)} \right) + {\psi_{+}^{\prime}}\left(\alpha, 0^{+}, \beta\right) + {\psi_{-}^{\prime}}\left(\alpha, 0^{+}, \beta\right) =0. $$

(10)

In addition, from (3), we can analytically represent

$$\begin{array}{@{}rcl@{}} \psi^{\prime}_{+}\left(\alpha, 0^{+}, {\beta}\right) &=& {\int}_{-\infty}^{\infty} {\int}_{{\chi}({z})}^{\infty} - a_{g}(z) e^{{ik}_{x} x} e^{i\alpha x} e^{i\beta z }\mathrm{d} x \mathrm{d} z \\ &=& \frac{ 1 }{i\left(\alpha + {k}_{x}\right)} \underbrace{{\int}_{-\infty}^{\infty} a_{g}(z) e^{i \beta z} \mathrm{d} z}_{= A_{g}(\beta)} \ast \underbrace{{\int}_{-\infty}^{\infty} \underbrace{e^{i \left(\alpha + k_{x}\right) \chi(z)}}_{= \mathfrak{s}(\alpha,z)} e^{i \beta z} \mathrm{d} z}_{= \mathfrak{S}(\alpha,\beta)}, \end{array} $$

(11)

where $\mathfrak {s}(\alpha, z)$ and $\mathfrak {S}(\alpha, \beta)$ are Fourier transform pairs and solely determine the reduction effect of scattered noise due to leading-edge serrations. In addition, it is worthwhile to emphasise again that (∗) represents convolution in the above formulation. Mathematically, if χ(z)>0, the term with exp(iαχ(z)) would grow exponentially in the lower half-plane. Similarly, when χ(z)<0, the term with exp(iαχ(z)) would grow exponentially in the upper half-plane. Such algebraic behaviours at infinity in the upper and lower halves of the complex α-plane are undesirable for the following procedure of the Wiener-Hopf method. Furthermore, such infinity growth would violate the Dirichlet conditions (for Fourier expansion) and thus prevents Fourier series expansions. Our previous models [10, 21] avoided this critical issue by canceling out all those terms from the final Wiener–Hopf equation. In this work, we further suggest that a weak expansion be considered for exp(iαχ(z)).

Then, for periodic serrations, $\mathfrak {s}(\alpha, z)$ can be further represented by the following Fourier series,

$$ \mathfrak{s}(\alpha,z)= e^{i\left(\alpha+k_{x}\right)\chi(z)} =\sum\limits_{\kappa=-\infty}^{+\infty} s^{[\kappa]}(\alpha) e^{i\kappa \frac{2\pi}{\lambda_{s}} {z}}, s^{[\kappa]}(\alpha) = \frac{1}{\lambda_{s}} {\int}_{0}^{\lambda_{s}} \mathfrak{s}(\alpha, z) e^{- i\kappa \frac{2\pi}{\lambda_{s}} {z} }\mathrm{d} {z}, $$

(12)

where λ_s is the period of the serrations in z-direction. Then, (11) becomes

$$\begin{array}{@{}rcl@{}} \psi^{\prime}_{+}&=& \frac{ A_{g}(\beta) }{i\left(\alpha + {k}_{x}\right)} \ast \sum\limits_{\kappa=-\infty}^{+\infty} s^{[\kappa]}(\alpha) \delta\left(\beta - \kappa \frac{2\pi}{\lambda_{s}}\right) = \frac{ {\sum}_{\kappa=-\infty}^{+\infty} s^{[\kappa]}(\alpha) A_{g} \left(\beta - \kappa \frac{2\pi}{\lambda_{s}}\right) }{i\left(\alpha + {k}_{x}\right)}, \end{array} $$

(13)

where δ is the Dirac delta function. Substituting (13) into (10) results in

$$\begin{array}{@{}rcl@{}} \underbrace{\gamma_{+}(\alpha, \beta) \psi_{+}\left(\alpha, 0^{+}, \beta\right)}_{R_{+}} + \underbrace{\frac{1}{\gamma_{-}(\alpha, \beta)}}_{R_{-}} \underbrace{\psi^{\prime}_{+}\left(\alpha, 0^{+}, \beta\right) }_{\mathrm{Pole~in~} R_{-}} + \underbrace{\frac{1}{\gamma_{-}(\alpha,\beta)}\psi_{-}^{\prime}\left(\alpha, 0^{+}, \beta\right)}_{R_{-}}= 0, \end{array} $$

(14)

where R_± in the underbrace symbol denotes the corresponding analytic half-planes, and the multiplicative factorisation [28] of γ=γ₊γ₋ is imposed. We further remove the pole at α=−k_x and re-arrange (14) to

$$\begin{array}{@{}rcl@{}} &&\underbrace{\frac{1}{\gamma_{-}(\alpha,\beta)}\psi_{-}^{\prime}\left(\alpha, 0^{+}, \beta\right)}_{R_{-}} + \underbrace{\left(\frac{1}{\gamma_{-}(\alpha, \beta)}-\frac{1}{\gamma_{-}\left(-k_{x}, \beta\right)}\right) \frac{ {\sum}_{\kappa=-\infty}^{+\infty} s^{[\kappa]}(\alpha) A_{g} \left(\beta - \kappa \frac{2\pi}{\lambda_{s}}\right) }{i\left(\alpha + {k}_{x}\right)}}_{R_{-}} = \\ &&- \underbrace{\gamma_{+}(\alpha, \beta) \psi_{+}\left(\alpha, 0^{+}, \beta\right)}_{R_{+}} -\underbrace{\frac{1}{\gamma_{-}\left(-k_{x}, \beta\right)}}_{R_{+}} \underbrace{\frac{ {\sum}_{\kappa=-\infty}^{+\infty} s^{[\kappa]}(\alpha) A_{g} \left(\beta - \kappa \frac{2\pi}{\lambda_{s}}\right) }{i\left(\alpha + {k}_{x}\right)}}_{R_{+}} \equiv \mathfrak{E}. \end{array} $$

(15)

The left- and right-hand sides of (15) should be regular on the positive and negative half-planes R_±, respectively. According to analytical continuation in the complex analysis theory, $\mathfrak {E}$ is an entire function that is regular on the whole complex plane. For leading-edge set-ups, ψ_s(x,0,z) is in the order of x^1/2 when x approaches χ(z), which leads to ψ(α)∼α^−1/2 when |α|→∞ by using Abelian theorem [28]. Since ψ(α)=ψ₊(α)+ψ₋(α), where ψ₋(α)≡0, ψ(α)∼α^−1/2 is equivalent to ψ₊(α)∼α^−1/2. In addition, from (6), it is easy to see that γ₊(α,β)∼α^1/2, which leads to γ₊ψ₊∼α⁰ and, finally, $\mathfrak {E}(\alpha) \sim \alpha ^{0}$ as |α|→∞. By using the extended form of Liouville’s theorem [28], it is then easy to show that $\mathfrak {E}(\alpha)$ is a constant for all real α. In this letter, we only consider the simplest scenario with the constant that equals zero. Such a simplification may be not mathematically strict but could extensively simplify the following derivations and, therefore, help to elucidate the most essential flow physics. Furthermore, a final extension to scenarios with non-zero constants shall be straightforward.

Next, by equating the right-hand side of (15) to zero, we immediately have

$$\begin{array}{@{}rcl@{}} \psi\left(\alpha, 0^{+}, \beta\right) &=& A(\alpha, \beta) = \psi_{+}\left(\alpha, 0^{+} \beta\right) + \underbrace{\psi_{-}\left(\alpha, 0^{+} \beta\right)}_{\equiv 0 \mathrm{~from ~(4)}} \end{array} $$

(16)

$$\begin{array}{@{}rcl@{}} &=& \underbrace{{- \sum\limits_{\kappa=-\infty}^{+\infty} s^{[\kappa]}(\alpha) A_{g} \left(\beta - \kappa \frac{2\pi}{\lambda_{s}}\right) }}_{\mathrm{~Due~to~serrations}} \underbrace{\frac{1}{i\left(\alpha + {k}_{x}\right) \gamma_{+}\left(\alpha, \beta\right) \gamma_{-}\left(-k_{x}, \beta\right)}}_{P(\alpha, \beta)~\mathrm{due~to~straight~leading~edge}}. \end{array} $$

(17)

Lau et al. [10] have given a similar analytical solution for Tollmien-Schlichting pressure wave scattering from serrated trailing edges, but by incorporating Fourier series expansion into the Wiener–Hopf method. Compared to the derivations therein (Eqs. (10)–(32)), the derivations in the current paper are more succinct.

Similarly, for straight leading edges with χ(z)≡0, it is easy to obtain

$$\begin{array}{@{}rcl@{}} \psi\left(\alpha, 0^{+}, \beta\right) = A(\alpha, \beta) = \underbrace{- A_{g} \left(\beta \right) }_{\mathrm{No~serration}} \underbrace{\frac{1}{i\left(\alpha + {k}_{x}\right) {\gamma_{+}(\alpha, \beta)}\gamma_{-}\left(k_{x}, \beta\right)}}_{P(\alpha, \beta)~\mathrm{due~to~straight~leading~edge}}. \end{array} $$

(18)

From (7), ψ(α,y,β) is obtained. Finally, through the inverse Fourier transform, we have the analytical solution

$$\begin{array}{@{}rcl@{}} {\psi}_{s}({x}, {y}, {z}) &=& \frac{1}{4\pi^{2}} {\int}_{-\infty}^{+\infty} {\int}_{-\infty}^{+\infty} \left(\text{sgn}({y}) A(\alpha, \beta) e^{- \text{sgn}({y}){\gamma y}} \right) e^{- i \alpha {x} - i \beta {z}} \mathrm{d} \alpha~ \mathrm{d} \beta. \end{array} $$

(19)

Given the above solution, we can predict the far-field acoustic solutions by either following the approximation method given in [27] or the Amiet’s model in [29] and [10]. It is also straightforward to establish the relation between the acoustic power spectral density and the wavenumber spectral density of incident turbulence flows by following [11] or [10]. The related details are omitted here for brevity.

3 Results and discussion

As Fig. 4 shows, the above analytical model enables us to study the effect of serrations from the perspective of control system, which is one of the key contributions of this paper. Each block in the feedforward path represents a transfer function in wavenumber domain, that is, O(α,β)/I(α,β), where O and I represent the output and input of each block in the wavenumber domain. For the whole feedforward loop shown in Fig. 5, the input would be I(α,β)=A_g(β)/i(α+k_x), that is, the α−β Fourier transform of (3). Then, from (17), the output with serrations is O_serration(α,β)=I(α,β)·S(α,β)·P(α,β); while from (18), the output without serrations is O_straight(α,β)=I(α,β) ·P(α,β). Hence, the transfer function of serrations, S(α,β), can be inferred from O_serration(α,β)/O_straight(α,β). As a result, given (17) and (18), the transfer function for serrations is defined as

$$ S(\alpha, \beta) = \frac{ {\sum}_{\kappa=-\infty}^{+\infty} s^{[\kappa]}(\alpha) A_{g} \left(\beta - \kappa \frac{2\pi}{\lambda_{s}}\right) }{A_{g}(\beta)} = \frac{ {\sum}_{\kappa=-\infty}^{+\infty} s^{[\kappa]}(\alpha) \delta \left(\beta - \kappa \frac{2\pi}{\lambda_{s}}\right) * A_{g}(\beta) }{\delta(\beta) * A_{g}(\beta)}, $$

(20)

Fig. 4

The block diagram with the transfer functions in the wavenumber domain, where the variable S(α,β) is represented with the arrow, which is a common practice in classical control. In addition, various optimisation strategies can be considered and one example can be found in [33] ((2.10) therein)

Fig. 5

Analysis by the proposed analytical model, where (a) the amplitude of ${S}\left (\hat {\alpha }, \hat {\beta }\right)$ for straight edges, and (b) the amplitude of $\mathfrak {S}\left (\hat {\alpha }, \hat {\beta }\right)$ for wavy edges, where the normalised $\hat {\alpha }=\alpha /\omega$ and $\hat {\beta }=\beta /\omega$, where the nondimensional ω=k. The set-ups are essentially the same as those in [13] (Fig. 2), that is, M₀=0.25, ω=1, and sinusoidal-shaped serrations with h_s=0.5 and λ_s=4π/3. (c) The sketch of $\mathfrak {S}(\alpha, \beta)$ for sawtooth-shaped serrations

which shall clearly elucidate the noise control effect of the serrations. More specifically, the transfer function (20) shows that serrations operate on incident gusts (or more generally, turbulence flows) in the form of convolution. It is then straightforward to sketch a block diagram of the whole aerofoil–gust flow system and the associated passive control and optimisation procedure (see Fig. 4). We believe that (20) has some sort of connection to the so-called optical transfer function in optical systems, and (20) is not a proper transfer function in classical control since the input A_g(β) cannot be easily isolated. Hence, the following study will focus on the key component $\mathfrak {S}(\alpha, \beta)$ inside S(α,β) (it should be noted that $S(\alpha, \beta) \ne \mathfrak {S}(\alpha, \beta)$).

Figure 5a-b show the amplitude of $\mathfrak {S}(\alpha, \beta)$ without and with wavy serrations, respectively. First, (7) suggests that the scattered field becomes evanescent (i.e., source cutoff in [1]) when γ²≥0, i.e. α²+β²−(k−M₀α)²≥0, which can be approximated by α²+β²≥k² when M₀ is small. Here k equals the nondimensional ω. In other words, when the amplitude of A(α,β) is nonzero outside the circle, the associated scattered wave component becomes evanescent, and when the amplitude of A(α,β) is nonzero inside the circle, the associated scattered wave component is progressive. Then, we call the region outside the circle (with α²+β²=k²) as the evanescent region, and call the region inside the circle as the progress region.

For straight edges with χ(z)=0, it is straightforward to get S(α,β)≡1,∀(α,β). Then, the vortical gust at α=k_x,∀β (see Fig. 5a) will be consistently scattered by the straight edge (as mathematically described by P(α,β)) and those fall in the circle will radiate to the far field. For serrated edges, it is usually difficult to separate the incident component A_g(β) from S(α,β) in (20). Hence, we directly examine $\mathfrak {S}(\alpha, \beta)$ and, as an example, show the corresponding amplitude for one wavy set-up in Fig. 5b. The geometrical configurations of the serrations are the same as those in [13] for comparison purposes. Compared to the straight edge case, the value of $\mathfrak {S}(\alpha, \beta)$ for serrated leading edge extensively decreases inside the progressive region, which corresponds to the extensive reduction of the aerofoil–gust interaction noise.

Figure 5b shows that the value of $\mathfrak {S}(\alpha, \beta)$ is most dominant around α=−k_x and gradually spreads to the whole wavenumber domain mainly through two ridges. Such observations can also be explained by the proposed analytical model. Take the sawtooth-shaped serrations as an example, where the slope of χ(z) is ±4h_s/λ_s, which leads to the following approximated relation:

$$\begin{array}{@{}rcl@{}} \mathfrak{S}(\alpha, \beta) = \int_{-\infty}^{\infty} e^{i (\alpha+k_{x}) \chi(z)} e^{i \beta z} \mathrm{d} z \sim \delta\left(\beta + (\alpha + k_{x}) \frac{\pm4h_{s}}{\lambda_{s}}\right), \end{array} $$

which is shown in Fig. 5c. The above relation becomes exact when the profile of serrations approaches the sawtooth shape. It is then easy to see that narrow serrations are more preferred than wide serrations. However, the final solution of the scattered field depends on $A_{g}(\beta) * \mathfrak {S}(\alpha, \beta)$. As a result, when the incident gust is oblique and falls in the grayed region shown in Fig. 5c, the convoluted result could fall into the circle and the corresponding scattered wave components become progressive.

Last but not least, Figs. 6 and 7 show the near-field results predicted by the proposed model. The set-ups from [13] (Fig. 2 therein) are followed here for comparison purposes. Compared to the previous results in [13], the predicted sound waves from the proposed model have almost identical patterns and values across the whole domain. In this letter, this comparison serves as the validation of the current new model. Furthermore, Fig. 7 clearly shows that the serrations induce new modes the spanwise direction, which shall be one of the main mechanisms for aerofoil-turbulence interaction noise control.

Fig. 6

The near-field results at z=−5 from the theoretical model and the set-ups are the same as those in Fig. 5(a) and (b), respectively. Tiny (spurious) oscillations around (x<0,y=0) should not affect sound fields at the far-field

Fig. 7

The predicted sound pressure levels (in dB) of the scattered sound field on the upper surface at y=0⁺, where the vertical axis shows the spanwise coordinate and the horizontal axis shows the streamwise coordinate. Both coordinates are normalised by the sound wavelength at the frequency. The other set-ups are the same as those in Fig. 6

4 Conclusion

A theoretical model has been proposed in the current paper for the study of aerofoil–gust interaction noise with leading-edge serrations. The most essential contributions are the analytical description and the transfer function concept based on Fourier transform and the Wiener–Hopf method. We wish to mention that the derivation of theoretical models is only possible by adopting justifiable simplifications and approximations. The current model employs the frozen turbulence assumption and semi-infinite thin aerofoil in the presence of uniform flows at zero angle of attack. It is well known that frozen turbulence assumption is usually valid for uniform or weak sheared flows. The semi-infinite aerofoil assumption should be valid for high-frequency gusts. It is possible to extend the current Wiener–Hopf model for finite aerofoil set-ups by using the approximate methods in [28] (Chap. V). Nonzero angle of attack effect has been analytically studied by [30] and [13] based on beautiful but complicated mathematical methods. The current work tries to provide the analytical model and the associated transfer function concept in the most succinct way and, hence, has to adopt the above simplifications and assumptions, which should hopefully retain the most important features of the serrated-aerofoil-flow system that is investigated.

The proposed model shall enable one to rapidly study the noise reduction performance of various-shaped (and even aperiodic) serrations for different incident vortical gusts. It shall be straightforward to further extend to turbulence flow set-ups. Further, the transfer function concept shall enable one to elucidate the associated physical mechanisms in a systematic way. Overall, the current model extensively simplifies our previous analytical modes for serrations [10, 21] and should be able to provide a clear physical insight of the inherent noise control mechanisms. In particular, the innovative concept that models the effect of serrations as transfer functions is uniquely different from other analysis in fluid mechanics and shall be able to assist the future analysis, design and optimisation of new low-noise aviation systems [2, 31, 32].
