Vortex model of plane turbulent air flows in channels


We present a theoretical model of plane turbulent flows based on the previously proposed equations, which take into account both the longitudinal motion and the vortex tube rotation. Using the simple model of eddy viscosity, we obtain the analytical expressions for the mean velocity profiles of stationary turbulent flows. In particular, we consider the near-wall flow over a flat plate in a wind tunnel as well as Couette and Poiseuille flows in rectangular channels. In all these cases, the calculated velocity profiles are in good agreement with experimental data and results of direct numerical simulations.

1 Introduction

The plane near-wall (boundary layer) flows [1,2,3] and wall-bounded Couette [4,5,6,7,8,9,10] and Poiseuille [11,12,13,14] flows are actively investigated both theoretically and experimentally for a long time. These are relatively simple shear flows of air and fluid, which are realized in rectangular channels and often used as model flows to test various theoretical models. The theoretical description of turbulent flows is based on the solution of the Reynolds-averaged Navier–Stokes (RANS) equation with the Reynolds stress tensor, which takes into account the influence of the fluctuating part of the velocity on the average flow characteristics [15, 16]. However, calculating the Reynolds tensor is a difficult problem. One of the basic ideas is that turbulent (eddy) viscosity depends on the coordinates in the flow, which make it possible to reconcile the theoretical calculations with experimental data by using various models of boundary layer [17,18,19,20]. The main progress in the theoretical description of turbulence is associated with the development of two-equation models [21, 22] such as \(k - \varepsilon\)  model [23,24,25] and \(k - \omega\) model [26, 27]. The advantages and disadvantages of various models are considered in [28, 29]. With the development of computer technologies, the methods for the direct numerical simulations (DNS) have become widespread. The DNS methods allow one to simulate the evolution of steady and unsteady flows and calculate the average values of various flow characteristics [30,31,32,33,34].

The turbulent flow is characterized by vortex movements with a wide range of spatial scales. However, existing analytical models of turbulence [35,36,37,38] are based on various models of the Reynolds stress tensor, but do not explicitly take into account the vortex structure of the turbulent flow. In the present paper, we develop a model in which the vortex tubes are directly involved in the formation of turbulent wall-bounded flows. We describe a turbulent flow based on the symmetric Maxwell-like system of equations explicitly accounting vortex motion. In the literature, there are a number of works, in which Maxwell-type equations for the velocity and the vorticity vectors are used to describe the vortex flow [39,40,41]. In particular, these equations are applied for the consideration of turbulent flows [40] and electron–ion plasma [42]. However, in these papers, the additional equation for vorticity is actually obtained by applying the “curl” operator to the Euler equation, so the resulting equation is not independent. We developed a different approach based on Helmholtz droplet model of a fluid [43] and obtained alternative Maxwell-type equations, which take into account the longitudinal motion and rotation of vortex tubes [44]. These equations were used in the hydrodynamic model of electron–ion plasma [45] and in the model of electron fluid in solids [46]. In the present paper, we apply this approach for the description of plane near-wall turbulent flows in wind tunnels as well as for Couette and Poiseuille flows in rectangular channels.

2 Symmetric equations of droplet model of vortex flow

In this section we briefly recall the main provisions of the droplet model of vortex fluid and the qualitative derivation of the main equations. The flow of non-viscous fluid is described by the system of equations [47] including the Euler equation and the continuity equation:

$$\begin{array}{l}\displaystyle\frac{\partial \boldsymbol{v}}{\partial t}+\left(\boldsymbol{v}\cdot\nabla \right)\boldsymbol{v}+\frac{1}{\rho}\nabla p=0,\\ \displaystyle\frac{\partial \rho}{\partial t}+\left(\boldsymbol{v}\cdot\nabla \right)\rho+\rho\left(\nabla \cdot \boldsymbol{v}\right)=0.\end{array}$$

This system can be rewritten in a symmetric form. We will consider the flow under the condition of constant entropy \(s (\boldsymbol{r}, t) = const\) (s is the entropy per unit mass). Let us use the thermodynamic relation for enthalpy \(\left(\varepsilon\right)\)

$$\displaystyle d\varepsilon =Tds+\frac{1}{\rho }dp.$$

Then, introducing a new function \(u=\displaystyle\frac{1}{c}\varepsilon\), we find that the following relations hold:

$$du=\displaystyle \frac{1}{c}d\varepsilon =\frac{1}{c\rho}dp=\frac{c}{\rho}d\rho.$$

Here \(c\) is the speed of sound \(\left(c^{2}=\left(\partial p/\partial \rho \right)_{s} = const\right)\) . Accordingly, all values in Eqs. (1) can be expressed through the function u,

$$\begin{array}{l}\displaystyle\frac{1}{\rho} \nabla p=c\nabla u,\\ \displaystyle\frac{\partial \rho}{\partial t}= \frac{\rho}{c}\frac{\partial u}{\partial t},\\ \displaystyle\nabla \rho= \frac{\rho}{c}\nabla u.\end{array}$$

Substituting (4) into (1) we obtain the following symmetric system of equations:

$$\begin{array}{l}\displaystyle\frac{1}{c} \left( \frac{\partial}{\partial t} + (\boldsymbol{v} \cdot \nabla)\right) \boldsymbol{v} + \nabla u = 0, \\ \displaystyle\frac{1}{c} \left( \frac{\partial}{\partial t} + (\boldsymbol{v} \cdot \nabla)\right) u + \nabla \cdot \boldsymbol{v} = 0.\end{array}$$

To describe vortex flows, Helmholtz [43] proposed a drop model of fluid. According to this model, the change that an arbitrary infinitesimal particle of fluid (Fig. 1) undergoes during infinitesimal time consists of three different motions: 1) a transition of the particle through space; 2) an expansion or contraction of the particle parallel to three main axes of dilatation so that every rectangular parallelepiped in water, whose edges are parallel to the main directions of dilatation remains rectangular; 3) a rotation around a temporary axis of rotation. During rotation, the particle is considered to instantly solidify and the angular velocity of its rotation ω is related to the linear velocity v inside the drop by the following relation:

Fig. 1
figure 1

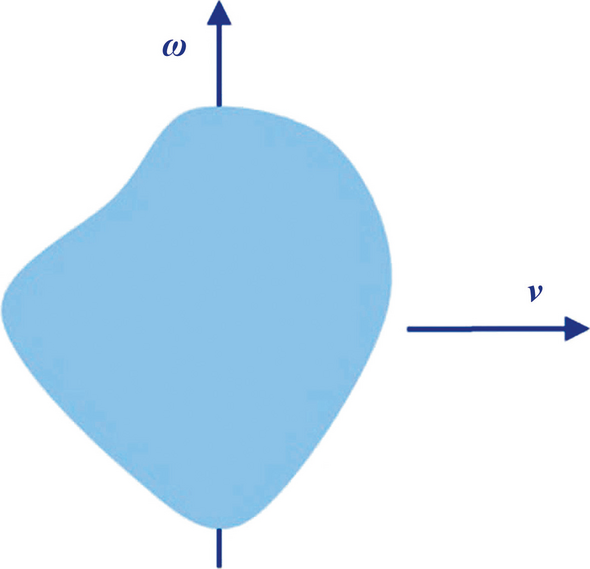

Sketch of a fluid particle moving with speed v and rotating with angular speed ω around an instantaneous axis

$$2\boldsymbol{\omega} =\nabla \times \boldsymbol{v}.$$

Since angular velocity ω is the derivative of the vector of rotation angle \(\boldsymbol{\theta}\)

$$\boldsymbol{\omega} =\frac{d\boldsymbol{\theta }}{dt},$$

we will describe the vortex flow using the field \(\boldsymbol{\theta} \left(\boldsymbol{r},t\right)\). Vortex lines are the lines whose direction coincides with the direction of the instantaneous axis of rotation of the fluid particles. In turn, particles located along the vortex lines form vortex filaments, the combination of which forms the vortex tubes [48].

Taking into account (6) and (7), the vortex tube rotation is described by the following equation:

$$\displaystyle\left(\frac{\partial }{\partial t}+\left(\boldsymbol{v}\cdot \nabla \right)\right)\boldsymbol{\theta} - \nabla \times \boldsymbol{v} = 0.$$

In order to give this equation a symmetric form similar to Eqs. (5), we introduce a new function \(\boldsymbol{w} =c\,\boldsymbol{\theta}\) and then we obtain

$$\displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left(\boldsymbol{v}\cdot \nabla\right)\right)\boldsymbol{w}- \nabla \times \boldsymbol{v}=0.$$

The condition

$$\nabla \cdot \boldsymbol{w} =0$$

describes the vortex tube without twisting. To take into consideration the twisting effect, this equation is modified as follows:

$$\displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left(\boldsymbol{v}\cdot\nabla \right)\right)\xi +\nabla \cdot \boldsymbol{w}=0,$$

where the function \(\xi\) is proportional to the twist angle [44].

Taking into account Eqs. (5), (9) and (11), the symmetric system of equations for vortex flow can be represented in the following form:

$$\begin{array}{l}\displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)\right){\varvec{v}}+\nabla \times {\varvec{w}}+\nabla u=0,\\ \displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)\right)u+\nabla \cdot{\varvec{v}}=0,\\ \begin{array}{l}\displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)\right){\varvec{w}}-\nabla \times {\varvec{v}}+\nabla \xi =0,\\ \displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)\right)\xi +\nabla \cdot{\varvec{w}}=0.\end{array}\end{array}$$

To describe the viscous fluid, it is necessary to make the following replacement of operators in all equations:

$$\begin{array}{cc}\displaystyle \frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)\right)\Rightarrow \frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)-\nu\Delta\right)\end{array},$$

where \(\nu\) is the kinematic viscosity. Thus finally we have the following symmetric system of equations:

$$\begin{array}{l}\displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)-\nu\Delta \right){\varvec{v}}+\nabla \times {\varvec{w}}+\nabla u=0,\\ \displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)-\nu\Delta \right)u+\nabla \cdot{\varvec{v}}=0,\\ \begin{array}{l}\displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)-\nu\Delta \right){\varvec{w}}-\nabla \times {\varvec{v}}+\nabla\xi =0,\\ \displaystyle\frac{1}{c}\left(\frac{\partial }{\partial t}+\left({\varvec{v}}\cdot \nabla \right)-\nu\Delta \right)\xi +\nabla\cdot {\varvec{w}}=0.\end{array}\end{array}$$

A rigorous sequential method for deriving Eqs. (14) is based on the use of space-time Clifford algebra and is described in detail in [44].

3 Vortex model of plane turbulent flow

Let us consider the plane flow parallel to the plane xy with the velocity directed along the X axis (Fig. 2).

Fig. 2
figure 2

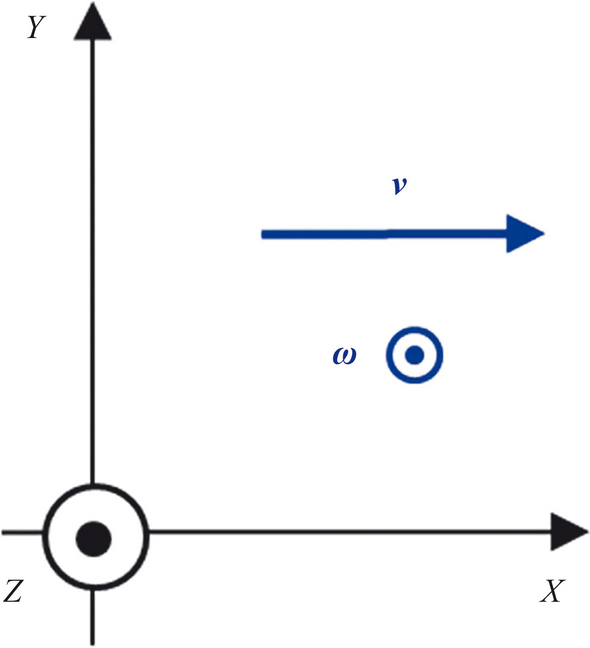

Sketch of the coordinate system for the plane flow

In this case the velocity \(\boldsymbol{v}\) has only x component and depends only on y coordinate \(v_x=v_x\left(y,t\right)\) . Similarly, in plane flow the vector \(\boldsymbol{w}\) has only z component and depends only on y coordinate \(w_z=w_z\left(y,t\right)\). Since we assume the uniform flow distribution in the Z direction and no torques, the vortex tubes have no twisting \(\xi=0\). Also we suppose that enthalpy depends only on x coordinate \(u=u\left(x,t\right)\) and the gradient of enthalpy to be constant,

$$\displaystyle\frac{\partial u}{\partial x}=\frac{1}{c\rho}\frac{\partial p}{\partial x}=-g.$$

Then in the projection on the X and Z axes, the system (14) takes the following form:

$$\begin{array}{l}\displaystyle\frac{1}{c}\frac{\partial {v}_{x}}{\partial t}-\frac{\nu}{c}\frac{{\partial }^{2}{v}_{x}}{\partial {y}^{2}}+\frac{\partial {w}_{z}}{{\partial }{y}}-g=0,\\ \displaystyle\frac{1}{c}\frac{\partial {w}_{z}}{\partial t}-\frac{\nu}{c}\frac{{\partial }^{2}{w}_{z}}{\partial {y}^{2}}+\frac{{\partial v}_{x}}{{\partial }{y}}=0.\end{array}$$

To describe a steady-state turbulent flow, we introduce the time-averaged values. For any value \(a(y,t)\), averaging over time is carried out as follows:

$$\bar a(y) = \mathop {\lim }\limits_{T \to {\kern 1pt} \infty } \frac{1}{{2T}}\int\limits_{ - T}^T {a(y,t){\kern 1pt} dt} .$$

Then the local velocity and vector of rotation can be represented as

$$\begin{array}{c}\boldsymbol{v}\left(\boldsymbol{r},t\right)=\overline{\boldsymbol{v}}\left(\boldsymbol{r}\right)+\boldsymbol{v}^{\prime}\left(\boldsymbol{r},t\right),\\ \boldsymbol{w}\left(\boldsymbol{r},t\right)=\overline{\boldsymbol{w}}\left(\boldsymbol{r}\right)+\boldsymbol{w}^{\prime}\left(\boldsymbol{r},t\right),\end{array}$$

where \(\boldsymbol{v}^{\prime}\) and \(\boldsymbol{w}^{\prime}\) are corresponding fluctuations. For components we have

$$\begin{array}{c}{v}_{x}\left(y,t\right)={\overline{v}}_{x}\left(y\right)+v^{\prime}_{x}\left(y,t\right),\\ {w}_{z}\left(y,t\right)={\overline{w}}_{z}\left(y\right)+w^{\prime}_{z}\left(y,t\right).\end{array}$$

In function \(w_{z} (y,t)\) we separate the part associated with the regular rotation of the vortex tubes with angle velocity \(\omega_{z} (y)\) and the part associated with irregular rotation \(\varphi_{z} (y,t)\)

$${w}_{z}\left(y,t\right)=2c{\omega }_{z}\left(y\right)t+{\varphi }_{z}\left(y,t\right).$$

Following (17) and (20), for a stationary flow we have

$$\begin{array}{l}\displaystyle\overline{\frac{\partial {v}_{x}}{\partial t}}=0,\\ {w}_{z}^{^{\prime}}\left(y,t\right)={\varphi }_{z}^{^{\prime}}\left(y,t\right),\\ \begin{array}{c}\overline{{w}}_{z}\left(y\right)=\overline{{\varphi }}_{z}\left(y\right),\\ \displaystyle\overline{\frac{\partial {w}_{z}}{\partial t}}=2c{\omega }_{z}\left(y\right).\end{array}\end{array}$$

Substituting (18) into Eqs. (14) and averaging over time we obtain (taking into account (20) and (21)) the following time-averaged plane flow equations:

$$\begin{array}{l}\displaystyle-\frac{\nu}{c}\frac{{\partial }^{2}\overline{{v}}_{x}}{\partial {y}^{2}}+\frac{1}{c}\frac{\partial }{\partial y}\overline{v^{\prime}_{x}v^{\prime}_{y}}+\frac{\partial \overline{\varphi}_z }{\partial y}-{g}=0,\\ \displaystyle-\frac{\nu}{c}\frac{{\partial }^{2}{\overline{\varphi }}_{z}}{\partial {y}^{2}}+\frac{1}{c}\frac{\partial }{\partial y} \overline{{\varphi^{\prime}_z}v^{\prime}_{y}}+\frac{\partial {\overline{v}}_{x}}{\partial y}+2{\omega }_{z}\left(y\right)= 0.\end{array}$$

Here \(\overline{v'_x\;v'_y}\) and \(\overline{\varphi^{\prime}_{z}v^{\prime}_{y}}\) are the components of the corresponding Reynolds stress tensors. Following to the Boussinesq assumption [49, 50], we suppose that components of stress tensors can be written as

$$\displaystyle-\overline{v^{\prime}_{x}v^{\prime}_{y}}={\nu}_{T}\frac{\partial {\overline{v}}_{x}}{\partial y},$$
$$\displaystyle-\overline{\varphi^{\prime}_{z}v^{\prime}_{y}}={\nu}_{T}\frac{\partial {\overline{\varphi }}_{z}}{\partial y},$$

where \({\nu_T}\) is the turbulent kinematic viscosity. We will suppose that \({\nu_T} = const\), then we obtain a very simple model of turbulent flow, which is described by the following equations:

$$\begin{array}{l}\displaystyle-\lambda \frac{{\partial }^{2}{\overline{v}}_{x}}{\partial {y}^{2}}+\frac{\partial {\overline{\varphi }}_{z}}{\partial y}-{g}=0,\\ \displaystyle-\lambda \frac{{\partial }^{2}{\overline{\varphi }}_{z}}{\partial {y}^{2}}+\frac{\partial {\overline{v}}_{x}}{\partial y}+2{\omega }_{z}\left(y\right)=0.\end{array}$$

Here we introduce the turbulent length \(\displaystyle\lambda = \frac{\nu + \nu_{T}}{c}\).

In the next sections, we will explore how this simple model describes the different plane turbulent wall-bounded flows.

4 Model of turbulent flow in near-wall layer

Let us consider a simple model of steady-state turbulent flow over an infinite plate (Fig. 3). We believe that shear flow exists only in a thin near-wall layer of thickness δ. The velocity outside the boundary layer is \({v}_{\infty}\) and the pressure gradient is zero (\(g = 0\)). Also we assume that on average all vortex tubes in the near-wall layer rotate with the same angular velocity \(\omega_{z} (y) = - \omega_{0}\). In this case Eqs. (25) take the following form:

Fig. 3
figure 3

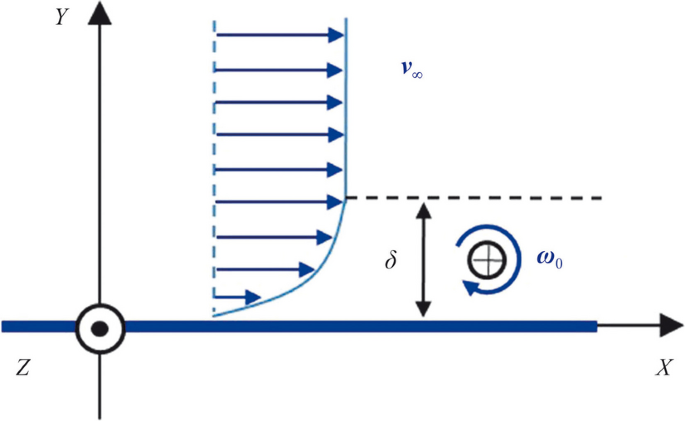

Sketch of a stationary turbulent flow over an infinite plate. The vortex tubes in the thin layer, on average, rotate with angular velocity \({\boldsymbol{\omega}_0}\)

$$\begin{array}{l}\displaystyle-\lambda \frac{{\partial }^{2}{\overline{v}}_{x}}{\partial {y}^{2}}+\frac{\partial {\overline{\varphi }}_{z}}{\partial y}=0,\\ \displaystyle-\lambda \frac{{\partial }^{2}{\overline{\varphi }}_{z}}{\partial {y}^{2}}+\frac{\partial {\overline{v}}_{x}}{\partial y}-2{\omega }_{0}=0.\end{array}$$

We choose the boundary conditions corresponding to the complete adhesion to the plate surface:

$$\begin{array}{l}{\overline{v}}_{x}\left(0\right)=0,\\ {\overline{v}}_{x}\left(\delta \right)={v}_{\infty },\\ \begin{array}{l}{\overline{\varphi }}_{z}\left(0\right)=0,\\ {\overline{\varphi }}_{z}\left(\delta \right)={\varphi }_{\delta }.\end{array}\end{array}$$

The solution of system (26) in the region \(0 \leq y \leq \delta\) has the following form:

$${\overline{v}}_{x}={v}_{\infty }\left\{\left(1-\beta \right)\frac{1-{\text{exp}}\left(-y/\lambda \right)}{1-{\text{exp}}\left(-\delta /\lambda \right)}+\beta y/\delta \right\},$$

Here we introduce the dimensionless parameter \(\beta=2\omega_0\delta/{v}_{\infty }\). The values \({\varphi }_{\delta }\) and \({v}_{\infty }\) are related by the following relation:

$${\varphi }_{\delta }=-{v}_{\infty }\left(1-\beta \right).$$

As an example, we consider the approximation of experimental data on plate blowing in a wind tunnel (Gete & Evans [1]) using formula (28). Figure 4 demonstrates the fitting of the experimental velocity profiles in the boundary layer at distances of 0.1 m and 0.7 m from the leading edge of the plate. In both cases, there is good agreement between the fitting curves and the experimental data. A comparison of the fitting parameters shows that with increasing distance from the edge, the turbulent viscosity decreases (parameter \(\lambda/\delta\) ), while the angular velocity of rotation of the vortex tubes (parameter \(\beta\)) increases.

Fig. 4
figure 4

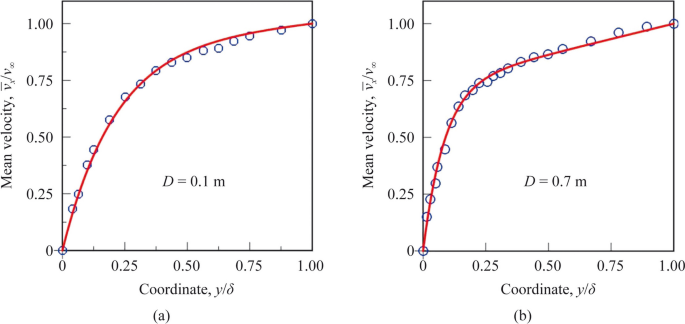

Velocity profiles over the plate at different distances (D) from the leading edge. Circles (\(\bigcirc\)) are the experimental data [1]; solid red lines correspond to the distribution (28). Fitting parameters are a \(\lambda /\delta = 0.21,\;\beta = 0.1\); b \(\lambda /\delta = 0.085\), \(\beta = 0.27\)

5 Turbulent Couette flow

Let us consider a turbulent flow formed between two infinite parallel plates moving relative to each other in opposite directions (Fig. 5).

Fig. 5
figure 5

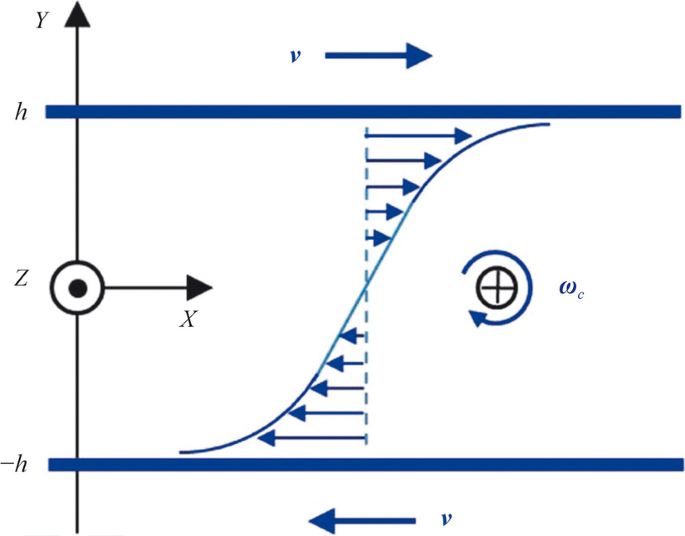

Sketch of a plane Couette flow between two infinite plates, which move along the X axis with speed v in opposite directions

Let us consider a fully developed turbulent flow, in which the vortex tubes on average rotate with a constant angular velocity \(\omega_z\left(y\right)=-\omega_c\). Then Eqs. (25) take the following form:

$$\begin{array}{l}\displaystyle-\lambda \frac{{\partial }^{2}{\overline{v}}_{x}}{\partial {y}^{2}}+\frac{\partial {\overline{\varphi }}_{z}}{\partial y}=0,\\ \displaystyle-\lambda \frac{{\partial }^{2}{\overline{\varphi }}_{z}}{\partial {y}^{2}}+\frac{\partial {\overline{v}}_{x}}{\partial y}-2{\omega }_{c}=0.\end{array}$$

As the boundary conditions, we choose

$$\begin{array}{l}{\overline{v}}_{x}\left(h\right)={v},\\ {\overline{v}}_{x}\left(-h\right)=-{v},\\ \begin{array}{l}{\overline{\varphi }}_{z}\left(h\right)=0,\\ {\overline{\varphi }}_{z}\left(-h\right)=0.\end{array}\end{array}$$

The solutions of Eqs. (31) are written as

$$\displaystyle{\overline{v}}_{x}={v}\left\{\alpha\frac{y}{h}+\left(1-\alpha\right)\frac{{\text{sinh}}\left(y/\lambda \right)}{{\text{sinh}}\left(h/\lambda \right)}\right\},$$
$$\displaystyle{\overline{\varphi }}_{z}=\left(1-\alpha\right){v}\frac{{\text{cosh}}\left(y/\lambda \right)-{\text{cosh}}\left(h/\lambda \right)}{{\text{sinh}}\left(h/\lambda \right)}.$$

Here we introduce the dimensionless parameter,

$$\displaystyle \alpha=\frac{2{\omega }_{c}h}{v}.$$

As an example, we consider the approximation of experimental velocity profiles by the normalized distribution (33). Figure 6 shows the comparison of the mean velocity profiles for air (El Telbany & Reynolds [13]) and water (Reichardt [5]) flows at close Reynolds numbers (Re). As can be seen, distribution (33) is in good agreement with experimental data. The fitting parameters λ/h, and α in these two cases are also very close. In addition, Fig. 7 demonstrates the comparison of solution (33) with the DNS results for Couette flow with Re = 3000 (Tsukahara et al. [51]) and Re = 12800 (Kawamura et al. [52]). In both cases, the fitted profiles are in good agreement with the results of the DNS. Here we also observe a decrease of turbulent viscosity (parameter λ/h) and an increase of angular velocity ωc (parameter α) with increasing Re.

Fig. 6
figure 6

Distributions of the mean velocity in a turbulent Couette flow. Circles (\(\bigcirc\)) are the experimental results [5, 13]; solid red lines correspond to (33). Fitting parameters are a λ/h = 0.04, α = 0.28; b λ/h = 0.035, α = 0.27

Fig. 7
figure 7

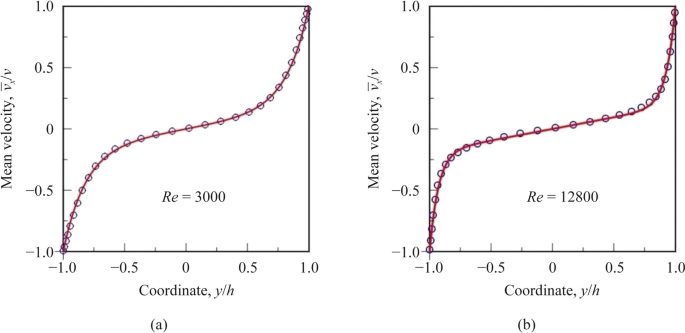

DNS profiles of the mean velocity in a turbulent Couette flow. a Circles (\(\bigcirc\)) are the results of DNS with Re = 3000 [51]; the solid red line corresponds to (33) at λ/h = 0.16, α = 0.21. b Circles (\(\bigcirc\)) are the DNS results with Re = 12800 [52]; the solid red line corresponds to (33) at λ/h = 0.072, α = 0.189

6 Turbulent Poiseuille flow

In case of plane Poiseuille flow in a channel with fixed walls (Fig. 8), the air moves under the action of a pressure gradient.

Fig. 8
figure 8

Sketch of a plane turbulent Poiseuille flow in a channel between two infinite plates

Let us consider a fully developed turbulent Poiseuille flow taking into account the vortex tube rotation. We assume that the angle velocity of vortex tube rotation is a linear function of y coordinate \(\omega_z\left(y\right)=\kappa y\) . In this case Eqs. (25) take the following form:

$$\begin{array}{l}\displaystyle -\lambda \frac{{\partial }^{2}{\overline{v}}_{x}}{\partial {y}^{2}}+\frac{\partial {\overline{\varphi }}_{z}}{\partial y}-{g}=0,\\ \displaystyle -\lambda \frac{{\partial }^{2}{\overline{\varphi }}_{z}}{\partial {y}^{2}}+\frac{\partial {\overline{v}}_{x}}{\partial y}+2\kappa y=0,\end{array}$$

with the following boundary conditions:

$$\begin{array}{c}{\overline{v}}_{x}\left(h\right)={\overline{v}}_{x}\left(-h\right)=0,\\ {\overline{\varphi }}_{z}\left(h\right)={\overline{\varphi }}_{z}\left(-h\right)=0.\end{array}$$

The solutions of system (36) are

$$\displaystyle{\overline{v}}_{x}=\sigma gh\frac{{\text{cosh}}\left(h/\lambda \right)-{\text{cosh}}\left(y/\lambda \right)}{{\text{sinh}}\left(h/\lambda \right)}+g{h}^{2}\frac{\left(1-\sigma \right)}{2\lambda }\left(1-\frac{{y}^{2}}{{h}^{2}}\right),$$
$$\displaystyle{\overline{\varphi }}_{z}=- \sigma gh\frac{{\text{sinh}}\left(y/\lambda\right)}{{\text{sinh}}\left(h/{\lambda }\right)}+ \sigma gy.$$

Here σ is a certain dimensionless parameter connected with pressure gradient and transverse gradient of angular velocity,

$$\displaystyle\sigma =1-\frac{2\lambda \kappa}{g}.$$

This parameter describes the relationship between the parabolic and hyperbolic velocity profiles. At \(\sigma = 0\), the profile is purely parabolic, and at σ = 1, it is hyperbolic.

As an example, we consider the approximation of experimental data for air flows in rectangular channels by the normalized distribution (38). The normalization is \({\overline v}_x/{\overline v}_0\) (where \({\overline v}_0\) is the velocity at y = 0). Figure 9 shows the fitting of the experimental mean velocity profiles (Hussain & Reynolds [12]) for different Re. As can be seen from the comparison of the fitting parameters, an increase in Re is accompanied by a decrease in turbulent viscosity (parameter \(\lambda/h\)) and an increase in parameter \(\sigma\). In addition, Fig. 10 demonstrates a more accurate match between the calculated velocity distribution and the experimental profile (Hussain & Reynolds [12]) in the region near a wall. Figure 11 shows the results of comparing mean velocity profiles calculated using formula (38) and DNS data for Re = 2013 (Tsukahara [53]) and Re = 24428 (Kawamura et al. [54]). In all considered cases, there is good agreement of calculated velocity profiles with experimental results and DNS data.

Fig. 9
figure 9

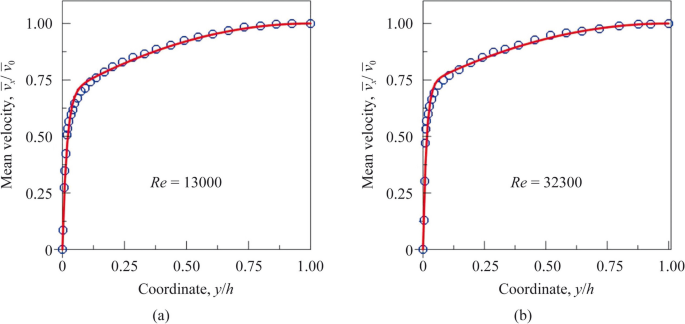

The profiles of mean velocity for plane Poiseuille flow at different Re. Experimental data are shown by circles [12]. The profiles corresponding to formula (38) are shown by solid red lines. a λ/h = 0.0178, \(\sigma\) = 0.984; b λ/h = 0.014, \(\sigma\) = 0.9896

Fig. 10
figure 10

The profiles of mean velocity near the wall. Experimental data [12] are shown by circles; the solid red line corresponds to formula (38). Fitting parameters are λ/h = 0.0107, \(\sigma\) = 0.99

Fig. 11
figure 11

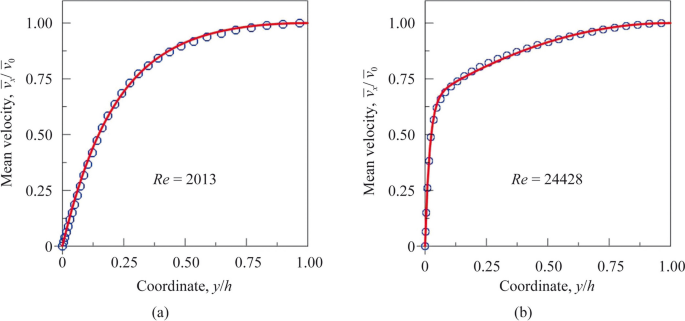

The mean velocity profiles of a turbulent Poiseuille flow. DNS data [53, 54] are shown by circles; the solid red line corresponds to the simulated profile (38). The fitting parameters are a λ/h = 0.21, \(\sigma\) = 0.975; b λ/h = 0.019, \(\sigma\) = 0.981

7 Discussion

The proposed vortex model of turbulent flow differs from the generally accepted approach. In this model, for a plane turbulent flow we have two Eqs. (25) describing the longitudinal motion and rotation of the vortex tubes. On the other hand, in the RANS model we have only one equation, which for the plane Poiseuille flow has the following form:

$$\displaystyle-\frac{\nu}{c}\frac{{\partial }^{2}{\overline{v}}_{x}}{\partial {y}^{2}}+\frac{1}{c}\frac{\partial }{\partial y}\overline{{v}^{\prime}_{x}{v}^{\prime}_{y}}-{g}=0.$$

In this case, the Boussinesq hypothesis (23) with a constant eddy viscosity does not describe the change in the velocity profile of a turbulent flow. The profile remains parabolic. Therefore, to obtain satisfactory agreement with experimental data within the framework of the RANS equation, it is generally accepted that the eddy viscosity depends on the coordinates \(\nu_T=\nu_T\left(y\right)\) . It leads us to the following equation:

$$\displaystyle\nu\frac{{\partial }^{2}{\overline{v}}_{x}}{\partial {y}^{2}}+\frac{\partial }{\partial y}\left({\nu}_{T}\left(y\right)\frac{\partial {\overline{v}}_{x}}{\partial y}\right)-cg=0,$$

and the main issue is the choice of the model of the eddy viscosity profile \(\nu_T\left(y\right)\) . The analytical expression for the eddy viscosity was suggested by Cess [55]. According to Cess’s model, the eddy viscosity profile can be represented in the following form [56]:

$$\displaystyle{{\nu}_{T}\left(\eta \right)=\frac{\nu}{2}\left\{1+\frac{{K}^{2}{Re}_{\tau }^{2}}{9}{\left(1-{\eta }^{2}\right)}^{2}{\left(1+2{\eta }^{2}\right)}^{2}{\left(1-{\text{exp}}\left[\left(\left|\eta \right|-1\right)\frac{{Re}_{\tau }}{A}\right]\right)}^{2}\right\}}^{1/2}+\frac{\nu}{2},$$

where \(\eta = y/h\) is the normalized coordinate across the channel, \({Re}_\tau\) is the friction Reynolds number, K is the von Karman constant of logarithmic velocity profile, and A is the constant in van Driest’s wall law [57]. The mean velocity profile can be found from (42) as

$$\displaystyle{\overline{v}}_{x}\left(\eta \right)=cg\int\limits _{-1}^{\eta}\frac{\eta +1}{\nu+{\nu}_{T}\left(\eta \right)}d\eta ,$$

where the integral can be calculated by the appropriate numerical method.

In the proposed vortex model, the turbulent flow is described by two equations, and the Boussinesq hypothesis (23) with constant eddy viscosity \(\nu_T=const\) immediately gives us the combined hyperbolic-parabolic mean velocity profile (38) in analytical form. The distribution of mean velocity is defined by two parameters f = λ/h and \(\sigma\) (40). Eddy viscosity can be estimated using parameter f as


In addition, the gradient of angular velocity \(\kappa\) can be estimated as

$$\displaystyle\kappa=\frac{1-g\,\sigma \left(Re\right)}{2h\,f\left(Re\right)}.$$

The dependencies of f(Re) and \(\sigma\left({Re}\right)\) can be extracted from experimental data or from results of DNS. As an example, Fig. 12 shows the dependencies of parameters f and \(\sigma\) on the Reynolds number for the Poiseuille flow, obtained from fitting velocity profiles according to DNS data [58]. The values of the fitting parameters f and \(\sigma\) are presented in Table 1.

Fig. 12
figure 12

Dependencies of parameters a f and b σ on Reynolds number. Circles are the data obtained from fitting of DNS velocity profiles [58] (see Table 1); solid lines correspond to the power-law approximations (47) and (48)

Table 1 The values of the fitting parameters f and \(\sigma\)

As one can see, the dependence of f(Re) is monotonic, while the dependence of \(\sigma\left({Re}\right)\) initially decreases and then increases with increasing Re. Both of these dependencies can be approximated by power functions (see Fig. 12). The following approximation is valid for the parameter f,

$$\displaystyle f={\left(\frac{Re}{1000}\right)}^{-3}+1.155{\left(\frac{Re}{1000}\right)}^{-0.65}.$$

For the parameter \(\sigma\), we have

$$\displaystyle\sigma =1+1.2{\left(\frac{Re}{1000}\right)}^{-4}-1.155{\left(\frac{Re}{1000}\right)}^{-0.65}.$$

These dependencies make it possible to predict the theoretical velocity profile, as well as estimate the eddy viscosity parameter \(\nu_T\) and the gradient of angular velocity \(\kappa\) with formulas (45) and (46) using the experimental Reynolds number (Reex) and half channel width \((h_{ex})\).

8 Conclusions

Thus, we have considered various types of plane stationary turbulent flows within the framework of a simple model based on the symmetric equations of vortex flow. This model allows for analytical calculations of the mean velocity distribution and includes two main parameters: the turbulence scale (λ), which is determined by the eddy viscosity, and the angular speed of vortex tube rotation (ω). We compared the fitted velocity distributions and experimental profiles for the near-wall flow in a wind tunnel and for Couette and Poiseuille flows in flat rectangular channels. In addition, we compared the model velocity profiles with the results of direct numerical simulations. It is shown that all calculated velocity profiles are in good agreement with the experimental data and the results of the DNS. We believe that the proposed model of plane turbulent flows can be useful for a qualitative consideration of engineering problems in aerodynamics and hydrodynamics.

Availability of data and materials

The data and materials used to support the findings of this study are available from the corresponding author upon request.
